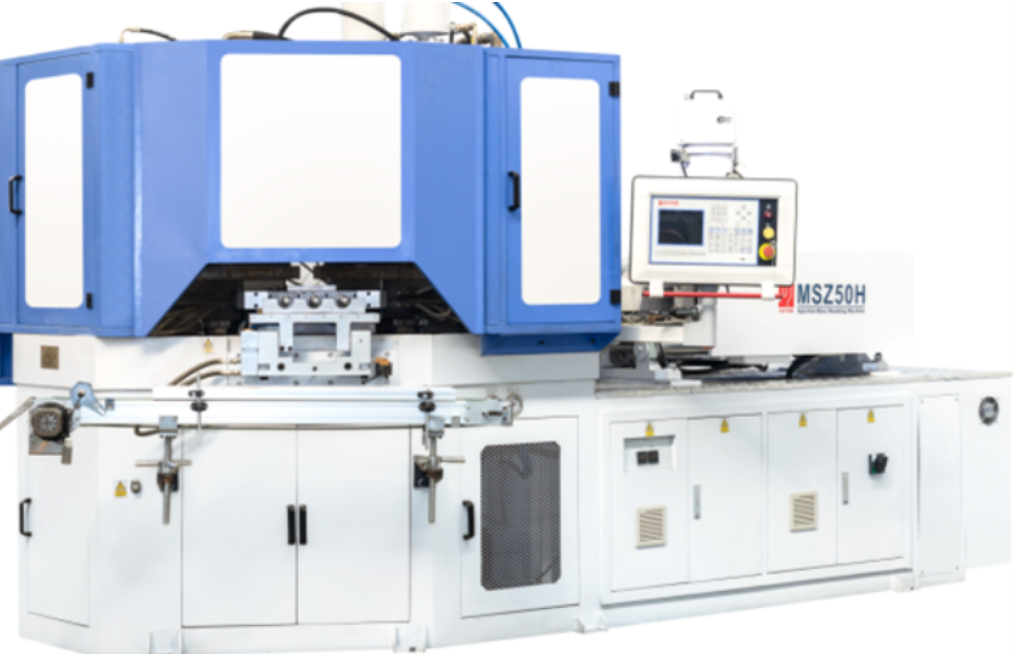

MSZ50 injection blowing molding machine 606 Favorites

Product Categories: Injection Blow molding
Packaging Details:seaworthy packages	Trademark:Victor
Certification: CE,
Payment Terms： L/C, T/T,
FOB: USD $45000/	HS Code: 84773020
Loading Port：Shanghai

Jiangsu Victor Machinery co.,ltd
Company type： Manufacturer	Credit：
Main products：

Get Quotation

Contact Supplier

To：	Daisy ding
Subject：
Message：	You can also enter 300 characters

Message has been sent successfully.

Post Buying Request

*Subject:
*Matching Rules:	Categories Keywords
*Inquiry Type:
*Keywords:	+ max five keywords
	Added:
	Note:you can add at least one keywod and most five keywords
*Categories:	Add Delete
*Detailed Description:
	Note: Please write your requirement in detail
Attachments：	+ Note: Attachments will help you get accurate solutions Note: Attachments can help you get accurate solution from suppliers
Max quotations want to receive：
	I agree to share my business card with quoted suppliers

Submit Inquiry

No matched supplier

Public souring

Your inquiry has been submitted successfully but 0 supplier matched at present, you will get quotations from Public Sourcing.

Close

Your inquiry has submited successfully and suppliers have been matched by LookingPlas,You will get the quotations as soon as possible.

Close

You had already registered,no need join again.

Registered successfully.

Sorry only Buyer can register the activities.

No	Item	Unit	Data
1.	Dia. of screw 螺杆直径	Mm	45
2.	L/D ratio 螺杆长径比		20.6~23
3.	Shot weight (PE) 最大注射量	G	241
4.	Max Screw speed 螺杆转数	rpm	10-235
5.	Heating capacity 加热功率	KW	10
6.	No of heating zone 加热区	mm	5+N
7.	Nozzle radius 喷嘴外径	mm	10
8.	Clamping force of injection mold 注射模合模力	kn	500
9.	Clamping force of blow mold吹塑模合模力	kn	89
10.	Opening force of mold platen 开模压力	kn	160
11.	Lift height of rotary table 塔台提升高度	mm	65
12.	MAX. plane size of die ( L*W) 最大模板尺寸	mm	560*390
13.	MIN.die thickness 最小模具厚度	mm	240
14.	motor power 驱动电机	KW	22
15.	Die heating power 模具加热功率	KW	3.6
16.	Pressure of hydraulic system 系统压力	Mpa	14
17.	Min. working pressure compressor air 最小压缩空气压力	Mpa	1
18.	discharge rate of compressed air 排气量	M³/min	≥07
19.	Cooling water consumption 冷却水用量	M³/h	4
20.	Dimension of machine (LWH) 机器的尺寸	mm	380016002300
21.	Machine weight 设备的净重	T	6.5
22.	Range of formability product 制品容积	L	0.015-0.8
23.	height of formability product 制品高度	mm	≤200
24.	dia of formability product 制品直径	MM	≤100
25.	Effective volume of oil tank有效邮箱容积	L	400

Model	MSZ50 injection blowing molding machine
Bottle application	comestic packing
bottle material	HDPE
