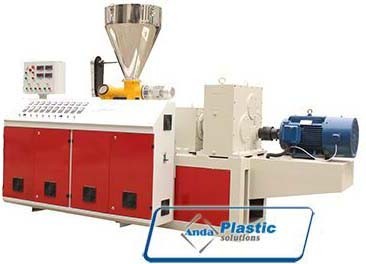

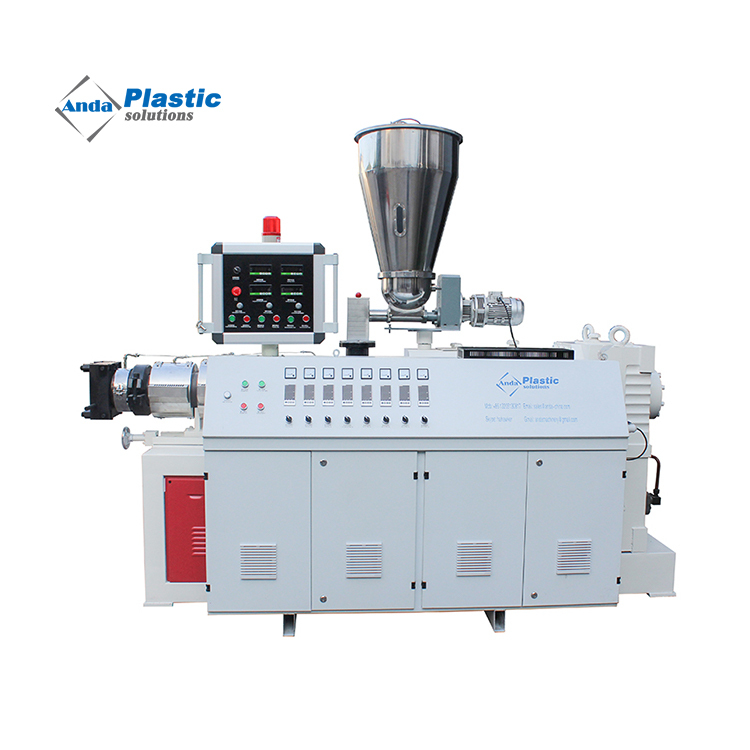

Conical twin screw extruder is designed to produce rigid UPVC product together with different downstream equipment, such as UPVC pipe, UPVC profile, UPVC board/sheet, WPC profile/board, PVC pelletizing and so on.
Double screw extruder has following features:
-Double screw dosing feeding, stable and high efficient
-Adopts famous well-known brand inverter and contractor, excellent and reliable performance
-And, can customize double screw extruder according to customer requirement, eg: equip PLC touch screen control system.
型号 Model | 螺杆长度 Screw Length(Mm) | 螺杆转速 Rotation Speedr/min | 马达功率 Main Motor Ower(Kw) | 挤岀产量 Extrusion Output(KgZh) | 中心高度 Centre Height(Mm) |
SJSZ48 | 1070 | 2-32 | 15 | 90 | 1000 |
SJSZ51 | 1070 | 2-32 | 18.5 | 50-150 | 1000 |
SJSZ53 | 1200 | 2-32 | 22 | 125 | 1000 |
SJSZ55 | 1200 | 1-40 | 30 | 60-180 | 1000 |
SJSZ65 | 1440 | 1-35 | 37 | 60-300 | 1000 |
SJSZ80 | 1800 | 1-37 | 55 | 100-400 | 1000 |
SJSZ92 | 2500 | 1-33 | 90 | 200-800 | 1100 |
