Main Technical Features
· SJ65X33ASingle Screw Extruder: SIEMENS micro-computer control system.
· SJ25X25 Single Screw Extruder: Specially used for co-extrusion of 1-4 color stripe(s).
· Double cavity Die Head: Lattice basket type and spiral type die head for choice.

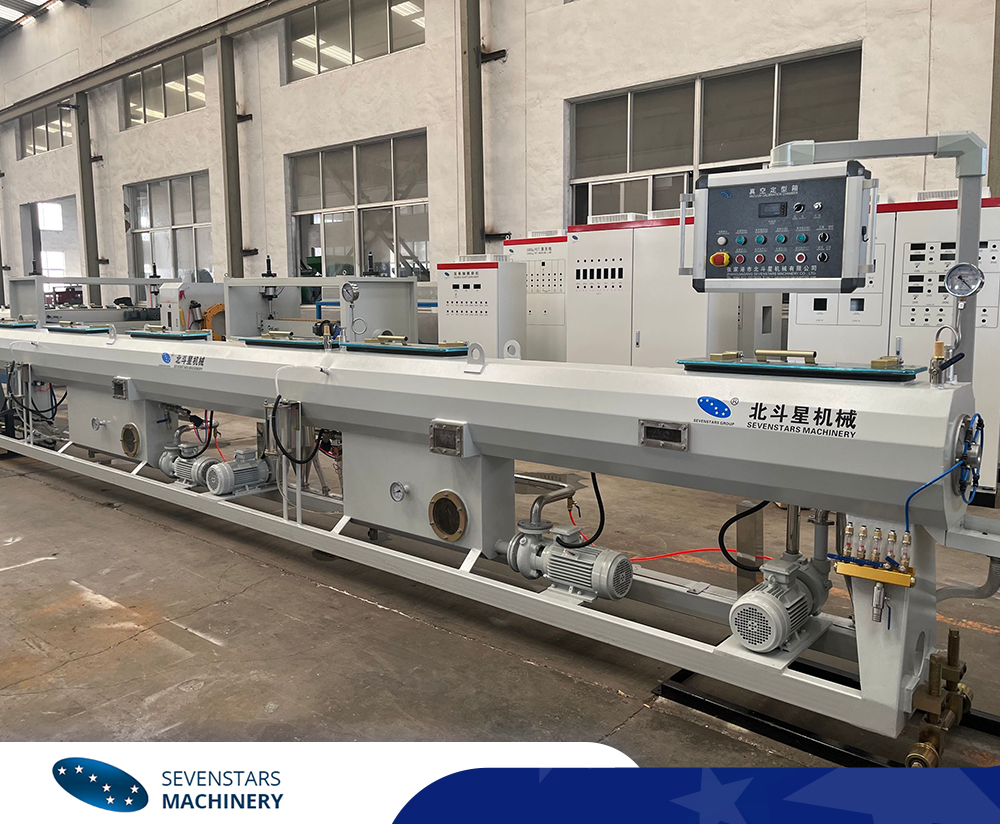

· ZDL63-9 Vacuum Tank: Adopting nylon half moon panel for good pipe roundness in high speed.
· PLX63 Spray Cooling Tank: Nozzles can make high speed vortex spray to good and even cool on the pipe surface.

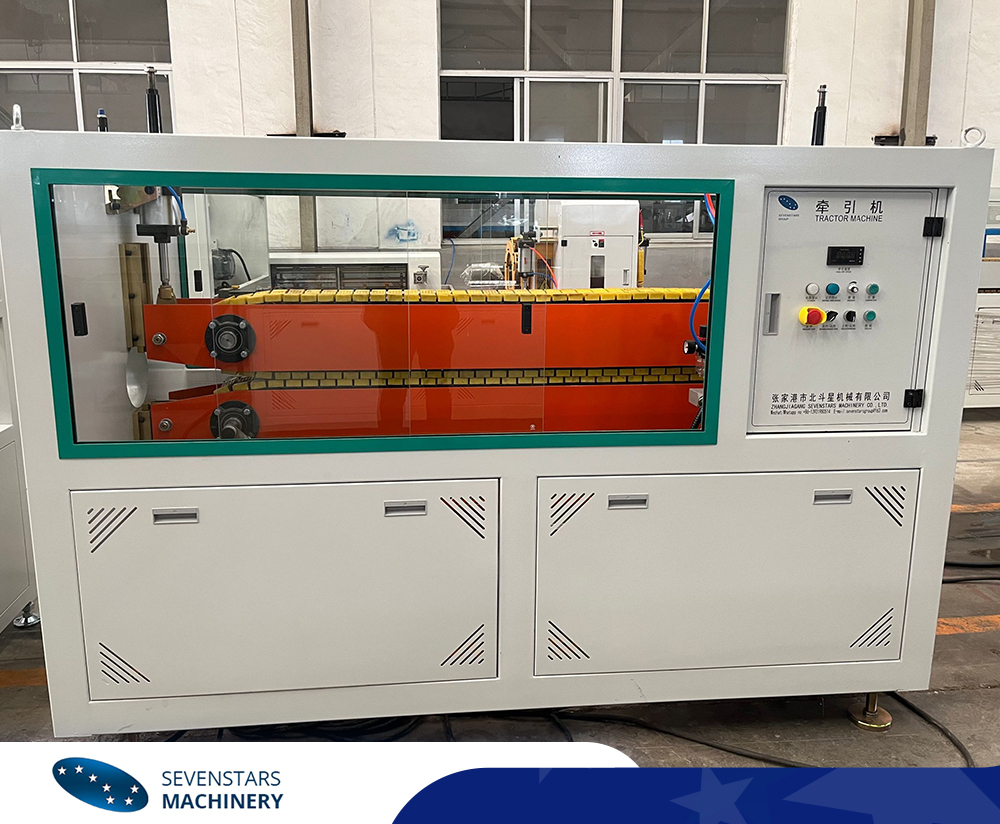

· QY63 Belt Haul-off： Up-and-Down belts are specially used for hauling small pipes in high speed. Haul speed: 0-25m/min.
· QG63Dust-free Knife Cutter: Using annular knife cutting structure, realizing dust-free and low-noise cutting in high speed.

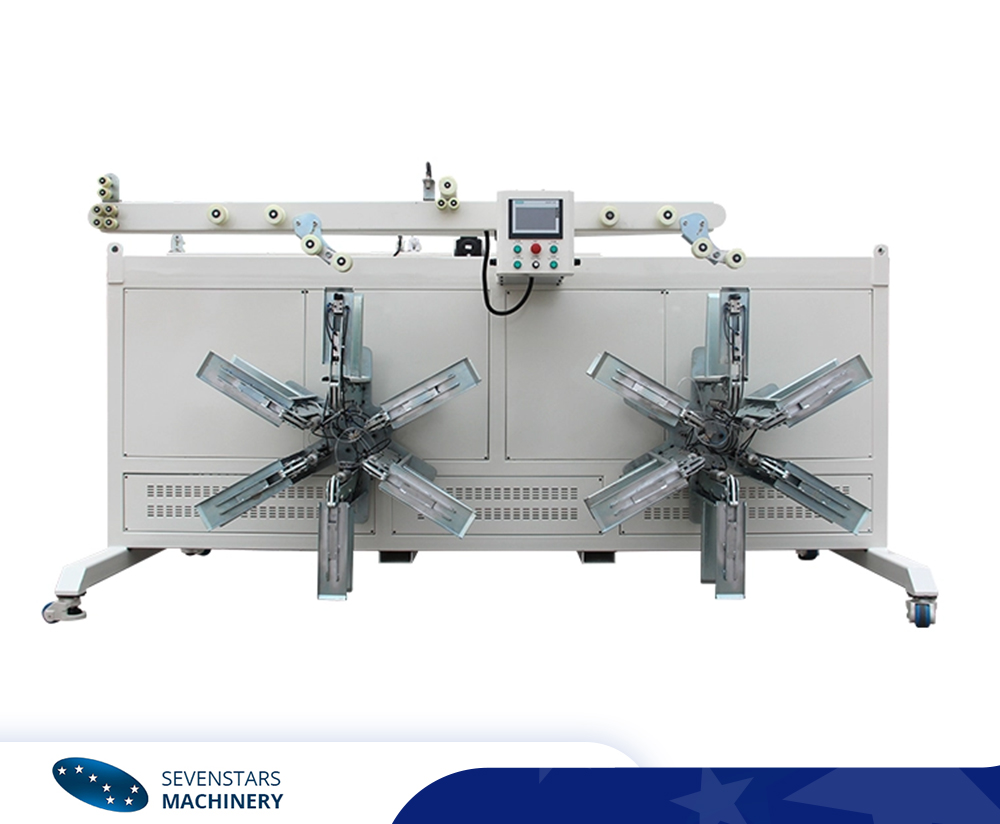

· JQ-63 and JQ32 Double disc Winder: frequency-conversion motor control, automatic alignment device. Winding speed 0-25m/min.
·
Main Technical Parameter
Model | Pipe Range(mm) | Haul-off Speed(m/min) | Total Length(m) | Output Capacity(kg/h) | Total Power(kW) |
PE/PE-RT | Φ16-Φ63 | 2.0-25 | 42 | 200-250 | 110 |
