Industrial Plastic Injection Mold High Temperature Controller Oil Heater 604 Favorites

Product Categories: Oil Heater
Packaging Details:1. Wooden case packing;2. Up to the customers.	Trademark:MITEX
Certification: CE,
Payment Terms： L/C, T/T,
FOB: USD $2400/Set	HS Code: 84196899090
Loading Port：Shenzhen

Mitex Automation Machinery Co., Ltd.
Company type： Manufacturer	Credit：
Main products：Mold temperature controller, industrial chiller, hopper dryer, auto loader, dehumidifier, plastic crusher and mixer etc.

Get Quotation

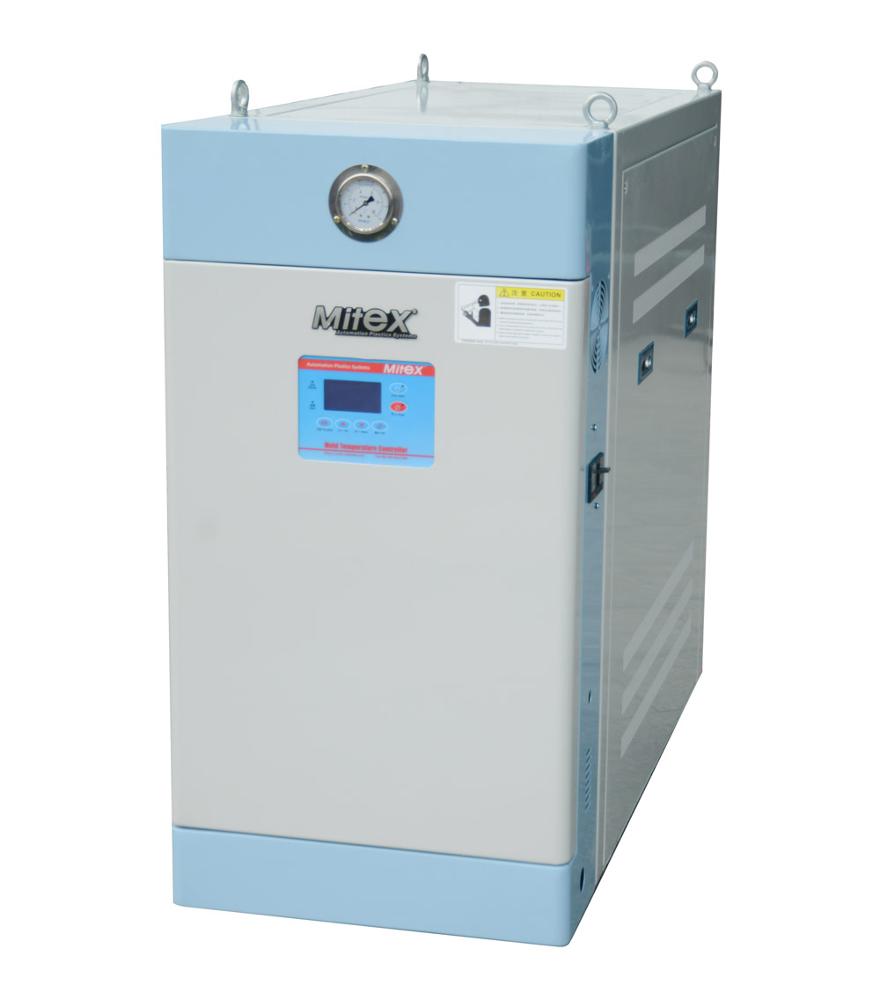

Model	MTC-3515M oil heater mold temperature controller
Pump Max.Pressure	0.45Mpa
After-sales Warranty	1 year
Pump Motor Capacity	1.1KW
Heater Capacity	24KW
Max. Working Temp.	350 Degrees
Pump Max. Flow	50L/min
Power Supply	AC380V 3PH 50HZ
Certification	CE
Cooling Method	Indirect Cooling
Control Method	P.I.D Control
Accessories	Power Cable 5M
Medium	Thermol Oil
After-sales Service Provided	Video Technical Support, Free Spare Parts

Contact Supplier

To：	Coco Zeng
Subject：
Message：	You can also enter 300 characters

Message has been sent successfully.

Model			MTC
			3515M	3540M	3540A	3550A
Medium			Thermal oil
Max.Working Temp.℃			350℃
Control Method			P.I.D Control
Heater Capacity(KW)			24	24	24	48
Pump	Seal Method		Sealless		Mechanical Method
	Motor Capacity(KW)		1.1	3	3	4
	Max.Pressure(Mpa)		0.45	0.6	0.32	0.32
	Max.Flow(L/min)		50	120	208	483
Expansion Tank Capacity(L)			20	50	50	90
Cooling Method			Indirect Cooling
Pipe Size	Circulation Line	Main Pipe	1"		1.5"
		Branch Pipe	3/8"x4 direction		1"x1 direction
	Cooling Line		3/4"		1"
Alarm			Phase Reverse, Medium Shortage, Pump Overload, Temp.Upper and Lower Limit, Over Heat
Power Supply			AC380V 3 PH 50HZ
Water Pressure			(0.1~0.3Mpa)
Dimensions(mm)			1300x370x1235	1300x370x1235	1300x375x1235	1300x375x1235
Net Weight(KG)			208	230	380	418
