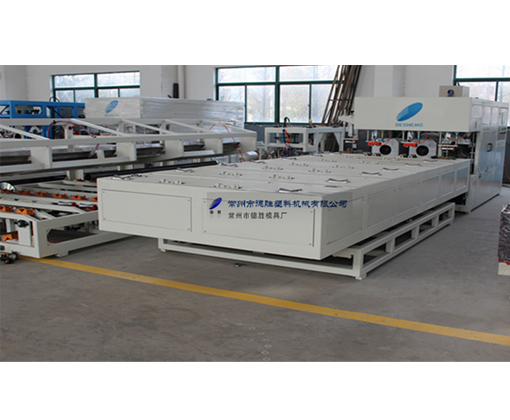

Automatic belling machine DS250J/DS315J/DS400J 1050 Favorites

Product Categories: PP/PE/PA Single/Double-wall Corrugated Pipe Machine
Packaging Details:	Trademark:
Certification:
Payment Terms：
FOB:	HS Code:
Loading Port：

Changzhou Desheng Mould Factory
Company type： Manufacturer	Credit：
Main products： Belling Machine

Get Quotation

Model	DS250J	DS315J	DS400J
Model	DS250J	DS315J	DS400J
Pipe Diameter	50mm - 250mm	110mm - 315mm	160mm - 400mm
Pipe Length	3m - 6m	3m - 6m	3m - 6m
Oven	One heating oven, semi-enclosed heated，Stainless steel heating tube with a heat sink	One heating oven, semi-enclosed heated，Stainless steel heating tube with a heat sink	One heating oven, semi-enclosed heated，Stainless steel heating tube with a heat sink
Pipe Rotary	Clockwise and anti-clockwise	Clockwise and anti-clockwise	Clockwise and anti-clockwise
Heating Power	11KW	16.5KW	23KW
Compressed air pressure	0.6Mpa	0.6Mpa	0.6Mpa
Water pressure	0.4Mpa	0.4Mpa	0.4Mpa
Hydraulic pressure	6.3Mpa	6.3Mpa	6.3Mpa
U-type	Pushing the mould into pipe directly	Pushing the mould into pipe directly	Pushing the mould into pipe directly
J-type	Blow air by inner mould, and take shape by outer mould	Blow air by inner mould, and take shape by outer mould	Blow air by inner mould, and take shape by outer mould
Cooling type	Water - cooling	Water - cooling	Water - cooling
Machine speed	50S to 150S	60S to 200S	80S to 300S
Mould material	U-type：45# steel with Cr electroplating J-type：45# steel with Cr electroplating	U-type：45# steel with Cr electroplating J-type：45# steel with Cr electroplating	U-type：45# steel with Cr electroplating J-type：45# steel with Cr electroplating
Total power	15.5KW	25KW	30KW
Machine weight	2300kg	2800kg	3000KG
Machine dimension	7300mm(L)×1660mm(W)×1950mm(H) 1*20GP	7550mm(L)×1850mm(W)×1950mm(H) 1*40GP	7900mm(L)×2140mm(W)×2125mm(H) 1*40GP
