Production Line Technical parameter:
Item | Composite cord strap | Geo strap |
Width of strap | 9-32mm | 40-100mm |
Line speed | 120m/min | 20-60m/min |
Total installed power | 60-110kw | 90-120kw |
Capacity | 100-200kg/h | 300-450kg/h |
Extrusion strap quantity | 1 strip or 2 strips | 1 strip |
Features of Geo & Polyester Strapping extrusion machinery:
1. Online monitor system for control: PLC control operation, fixed online monitor system for control yarn working, if happen break, automatically alarm.
2. Automatically sense water temperature: Water tank fixed PLC monitor temperature unit.
3. Double function: Special technology design, for making composite cord strap and Geo strap.
4. High quality: Precision manufacturing, low noise, high capacity.
5. Output: High speed reliable production and higher output.
General introduction:

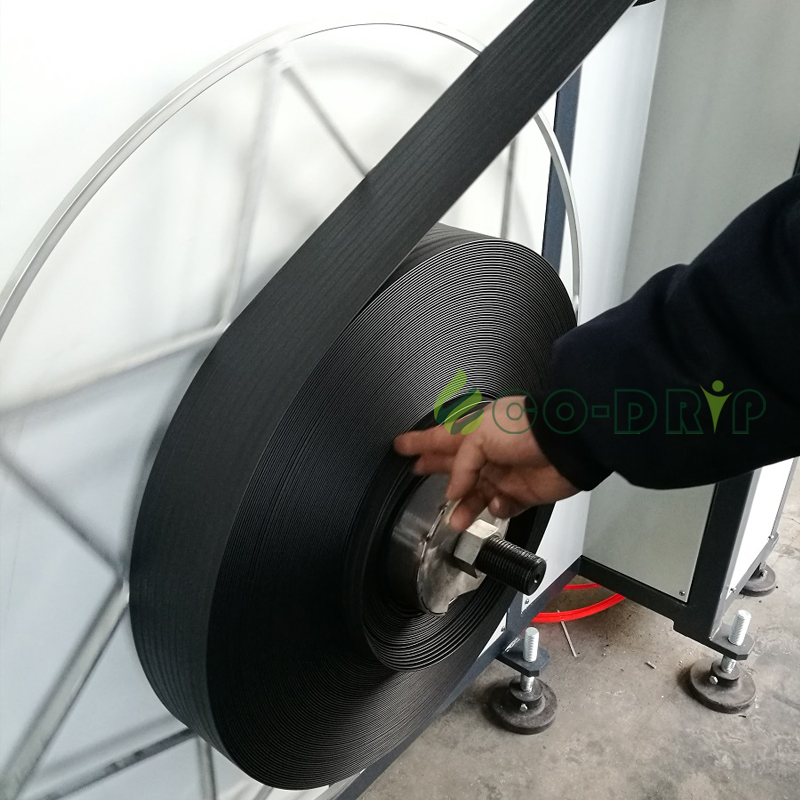

1. Geo Straps are manufactured by extruding athin layer of PE on the polyester yarn as seen in the photograph below.

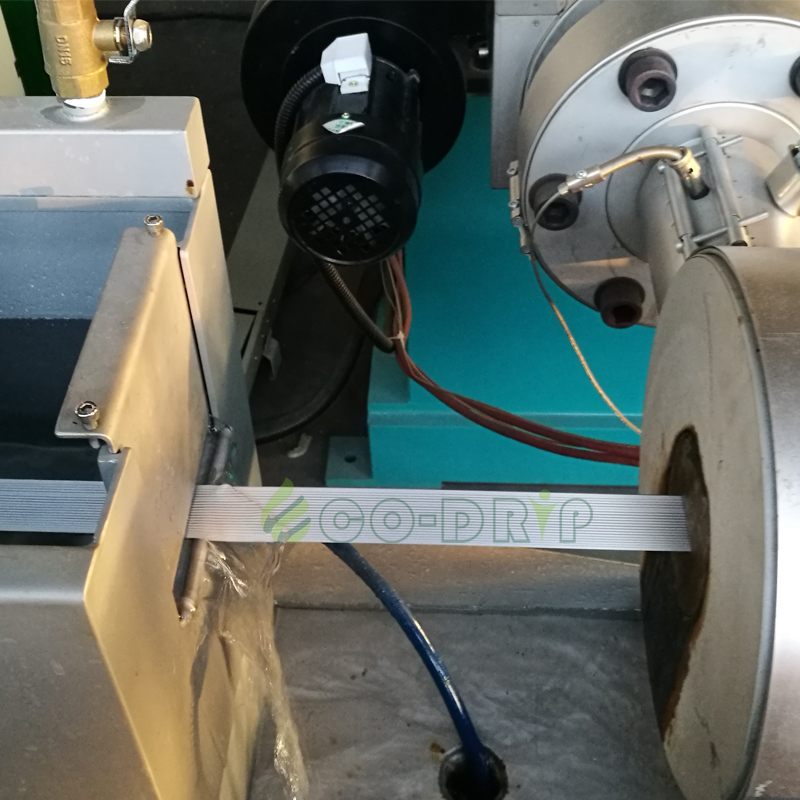

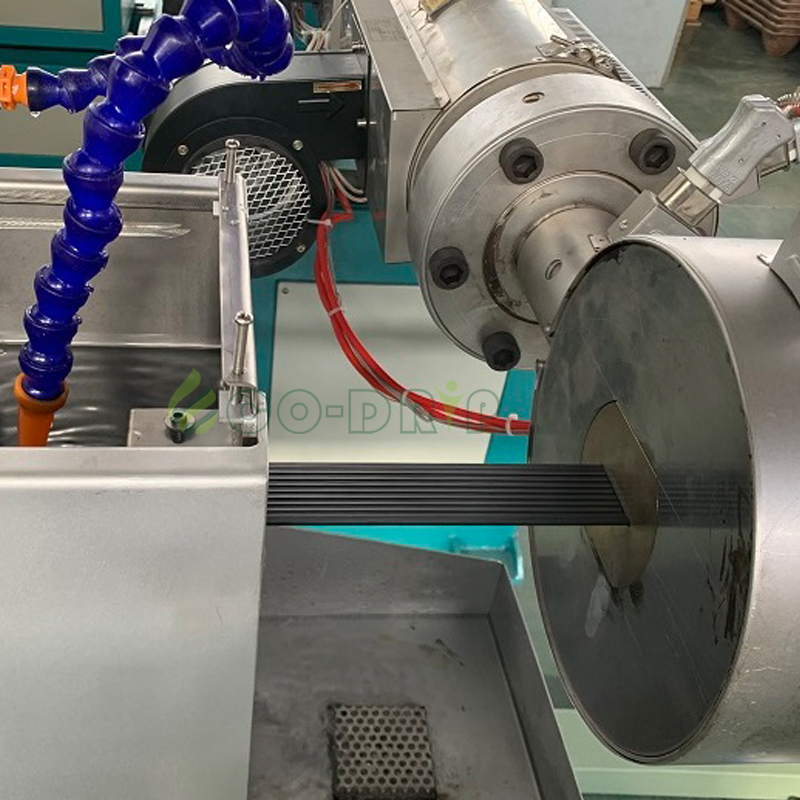

The maximum width of the strap is about 100mm. The yarn is fed from the creels & on the yarn the PE gets extruded toform sheathing. Immediately afterextrusion, the strap passes through indented rollers to form the diamond knurlon the straps & passes through the cooling trough.

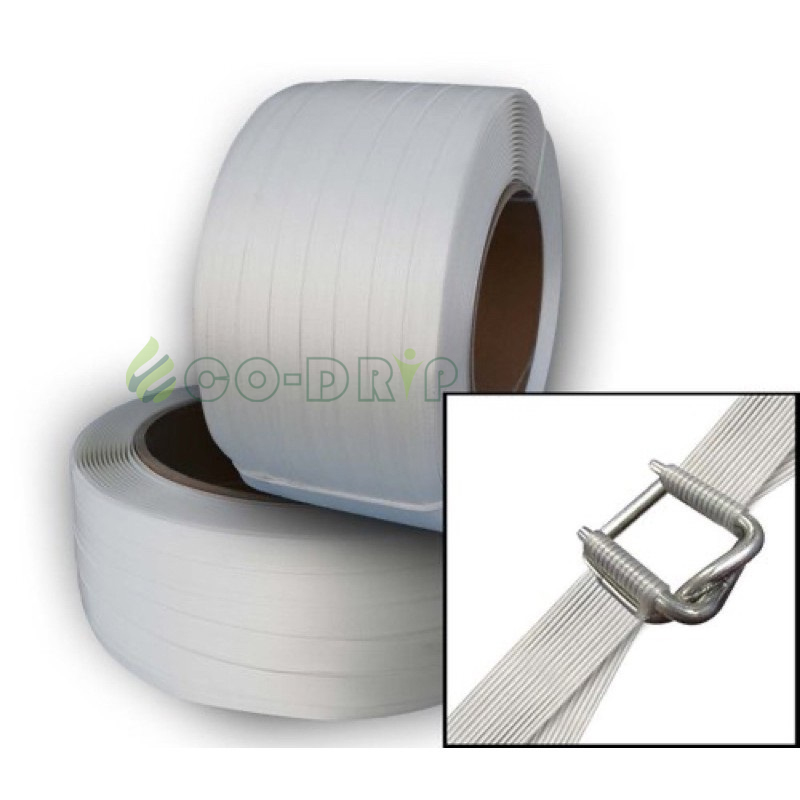

2. Polyester composite cord strapping is manufactured from polyester fiber which is one of the strongest synthetic fibers. It is not affected by extreme weather conditions, such as cold, heat or moisture.
These strapping can be used with wire buckles applied by hand or tools. It may also just be tied with a knot as anytwine or rope and thus maintains a high joint efficiency.
They are very popular with papermills and lumber producers to replace steel strapping.
Benefits of Polyester Strap:
· As strong assteel
· Safe for users& receivers
· Cost effective
· Does not damageyour products
· Shock absorbent
· High retained tension
· High system strengths
· Printable with your company name & logo
· Light-weight& portable
· Chemical resistant
· Will not rust orrot
· Weather resistant
· Re-tensionable
Are you looking for a safe and cost effectivealternative to the steel strapping / metal banding you are currently using?
Polyester strapping solutions provide safe and cost effective ways to secure your cargo and prevent it from damage.
