SJ Film Blowing Machine
Application: T-shirt bags, shopping bags, garbage bags, Glove Film etc.
Suitable material: HDPE/ LDPE/ LLDPE/ EVA/ Caco3
Film layer: 1 layer
Screw L/D ratio: 30:1/ 32:1
Machine Introduction
The SJ film blowing machine is used for blowing high and low pressure polyethylene, and the products are widely used in composite film, packaging film, agricultural covering film, textile, garment bag or film and other packaging; the main motor adopts frequency conversion speed control, which increases the stability of the main machine speed control, and can save electricity by 30%. The screw barrel is made of 38 chrome molybdenum aluminium, which is treated by nitriding, and the cooling effect can reach the best regardless of blowing large or small size films;
This pe film blowing machine unit is equipped with 2 sets die heads,(1 set HDPE and 1 set LDPE die head) and one film blowing machine can meet the production of customer's conventional bags.
This Single layer blowing machine unit is suitable for customers who have just set up factories and have limited budgets. If you need a higher output machine or a higher quality machine, you can consult our company in detail.
Optional parts
Hand Press quick screen changer
Hydraulic screen changer
Automatic rewinder
Corona treater
Double vent air ring
Dosing system
Technical parameters
Model | XY-A50 | XY-A55 | XY-A60 | XY-A65 |
Suitable material | HDPE / LDPE / EVA/ Caco3 |
Film width | 100-600mm | 200-800mm | 300-1000mm | 400-1200mm |
Roller width | 700mm | 900mm | 1100mm | 1300mm |
Film thickness | 0.01-0.15mm |
Max.output | 15-35kg/h | 20-50kg/h | 30-65kg/h | 40-80kg/h |
Screw diameter | Φ50 | Φ55 | Φ60 | Φ65 |
Screw L/D | 30:1 | 30:1 | 30:1 | 30:1 |
Driving motor | 11kw | 15kw | 18.5kw | 22kw |
Gearbox | 133 | 146 | 173 | 173 |
Die size | HDΦ60 LDΦ100 | HDΦ80 LDΦ120 | HDΦ120 LDΦ200 | HDΦ150 LDΦ200 |
Weight | 1500kg | 2000kg | 2300kg | 2600kg |
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
Possible Product

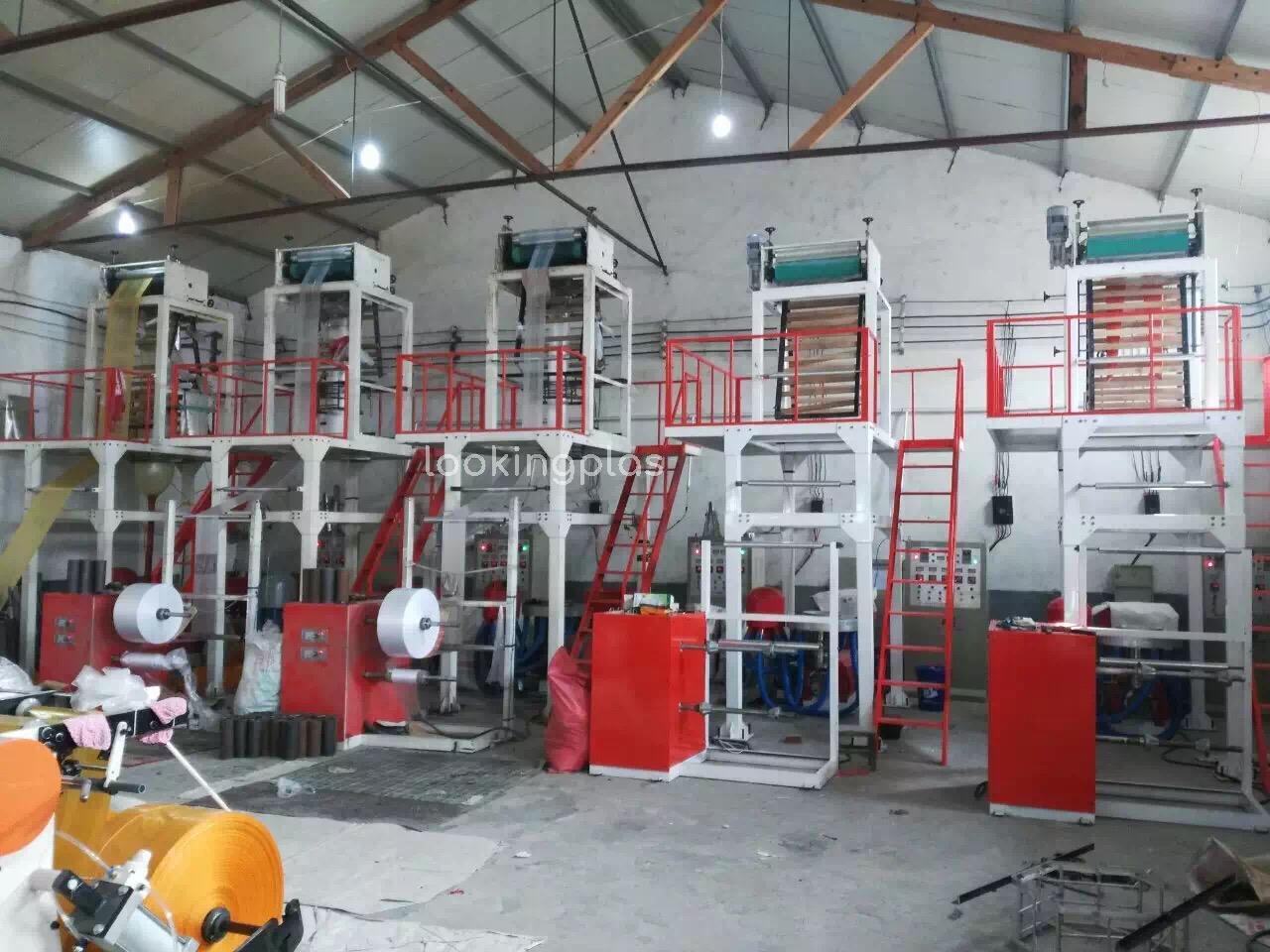

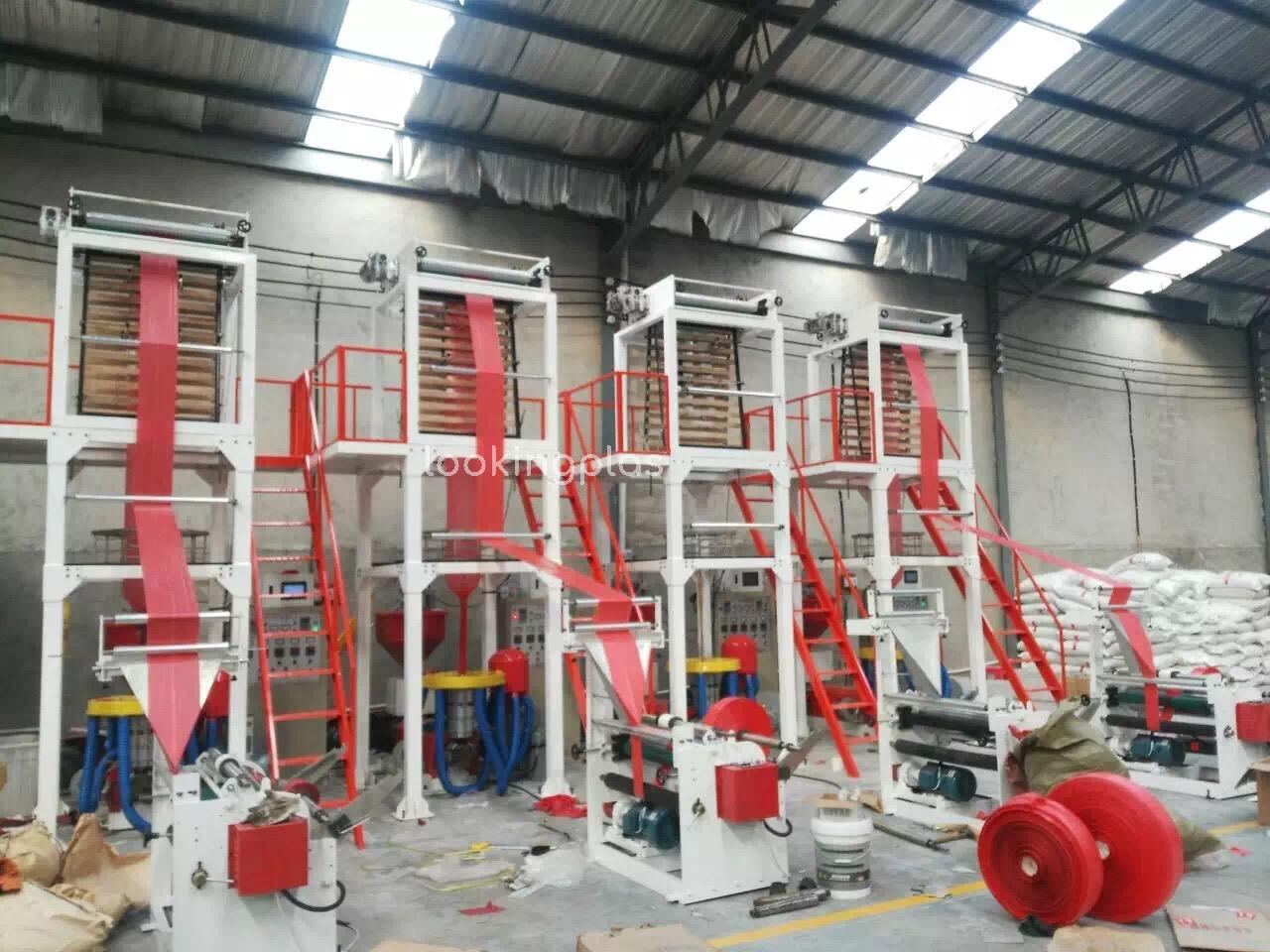

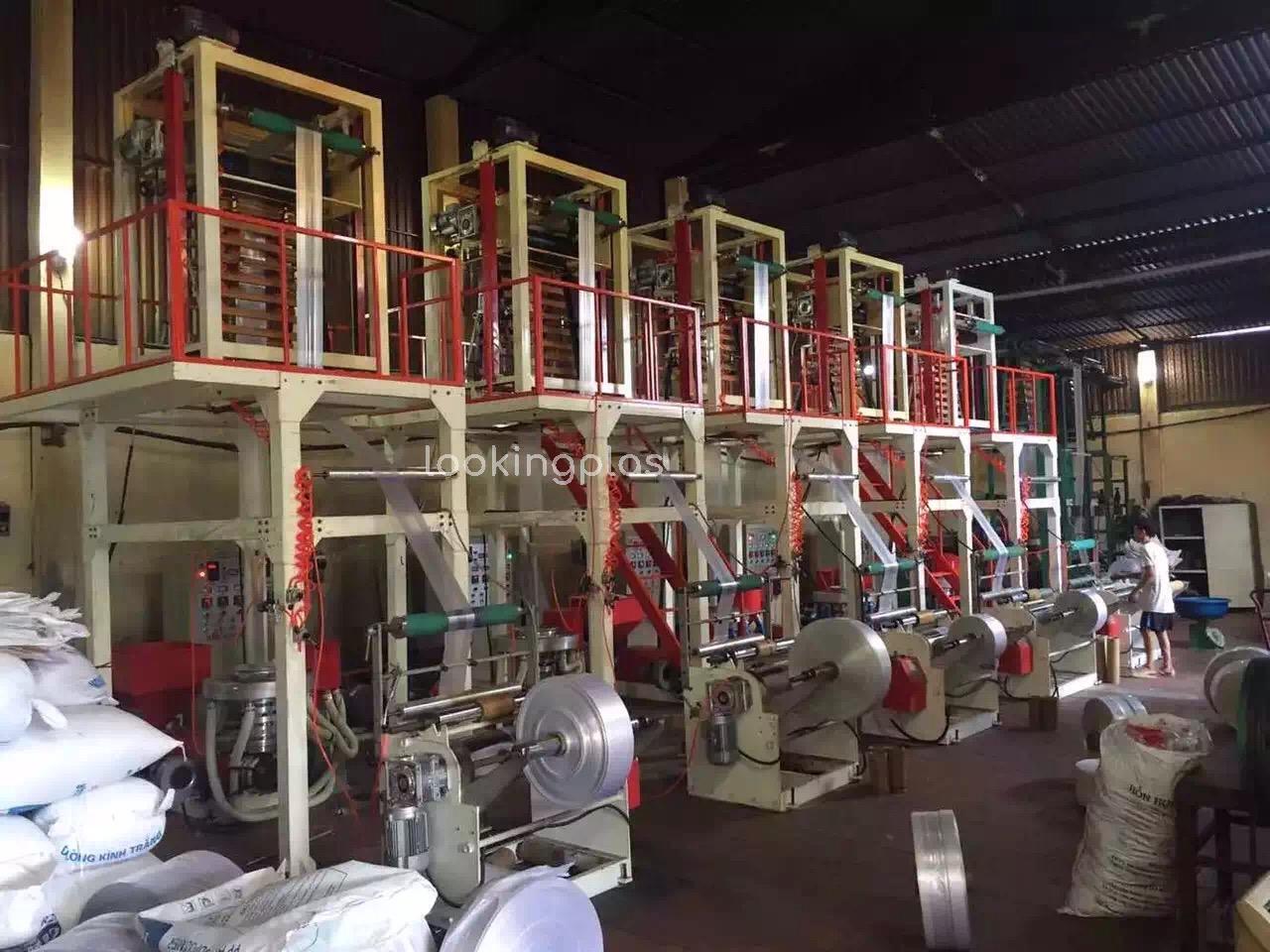

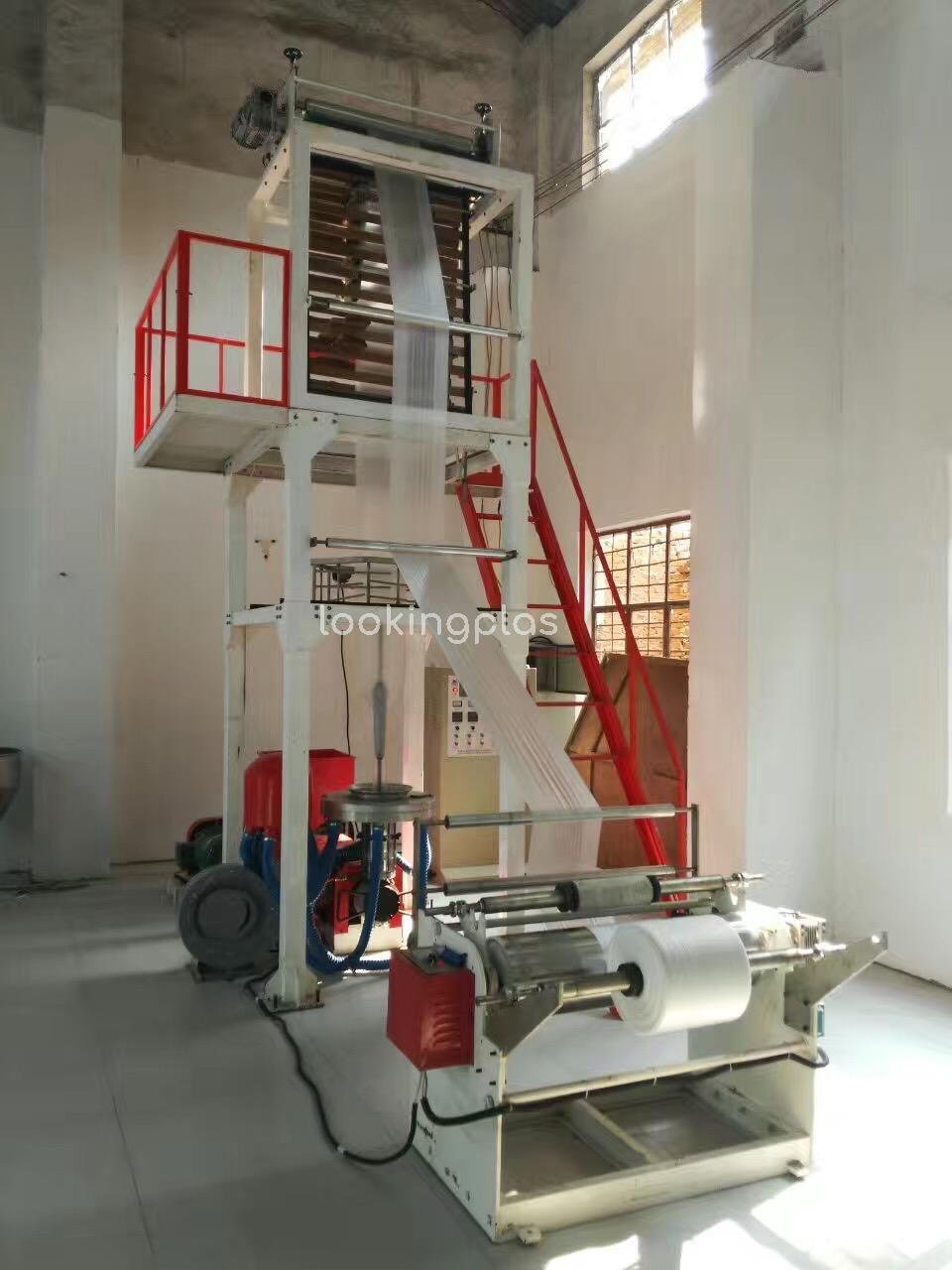

Machine photo
Why choose us?
Our customer service team is available to assist with any questions or concerns that may arise.
Our company will take the market demand as the guide, continue to innovate, wholeheartedly provide users with quality trusted products and perfect after-sales service, and "excellent quality, customer satisfaction" is our company's eternal pursuit of the goal.
We pride ourselves on providing exceptional products and services at competitive prices.
Our company is a comprehensive company integrating process design, standardized production, technology research and development, and follow-up services. Our production requirements are extremely strict because we hope to use our professional skills to bring refined and high-standard SJ Film Blowing Machine to our customers.
We offer custom solutions to meet the unique requirements of each customer.
We promote SJ Film Blowing Machine optimization and upgrading, produce high-performance, high-value-added products, and drive energy conservation and emission reduction in the industry.
Our machines are easy to operate and require minimal maintenance.
Our company strongly advocates the concept of green environmental protection.
We strive to exceed our customers' expectations with every purchase.
We actively carry out transformation and upgrading, technological innovation and structural adjustment, so that the core competitiveness and brand influence of our company can be significantly improved.
