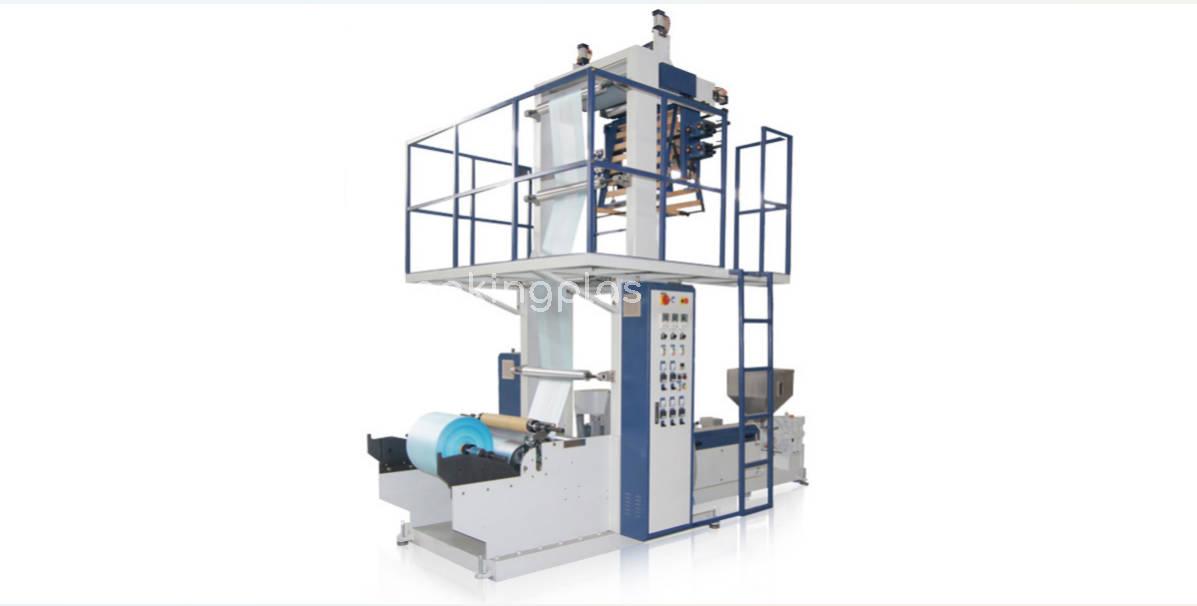

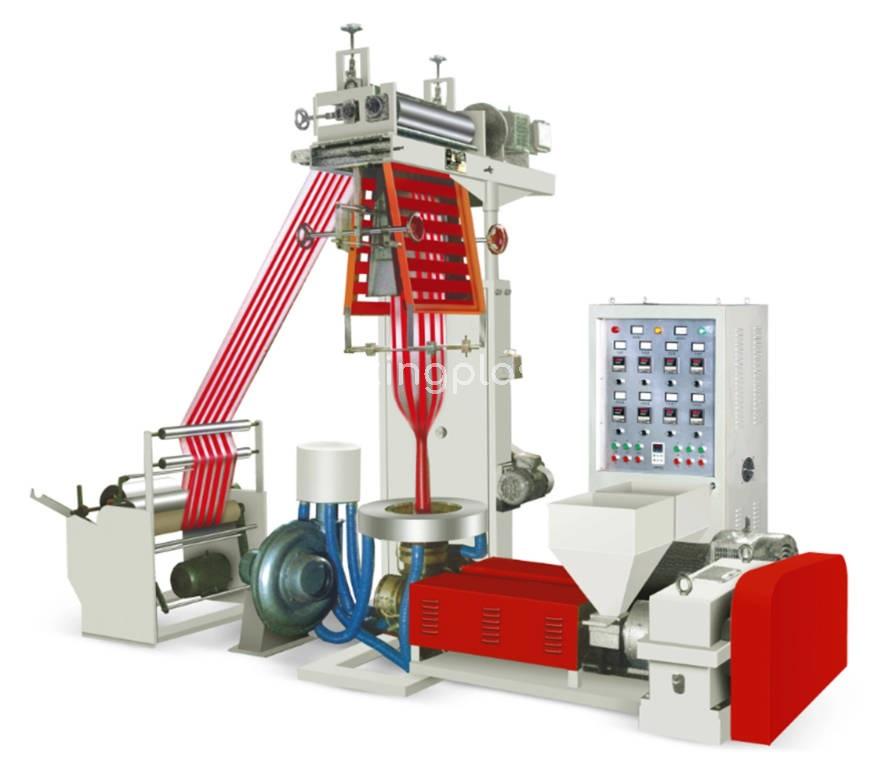

Mini Film Blowing Machine
Application: T-shirt bags, beverage bag etc.
Suitable material: HDPE/ LDPE/ LLDPE/ EVA/ Caco3
Film layer: 1 layer
Screw L/D ratio: 30:1/ 32:1
Machine Introduction
The Mini film blowing machine is a very popular model for T-shirt bag and flat bag manufacturers. Commonly used screw sizes are Ø45mm, Ø50 and Ø55mm, covering bag widths from 100-600mm. The screw design is suitable for both HDPE and LDPE materials.
Advantage
● No additional installation is required, only wiring is required for normal production.
● Easy to use
● Save space, usually the length and width of the machine are 2.3 meters
● The transportation cost is lower, and one 40 container can loading 5 Sets
Technical parameters
Model | XY-M45 | XY- M50 |
Suitable material | HDPE / LDPE / LLDPE / EVA/ Caco3 |
Film width | 100-400mm | 100-500mm |
Roller width | 500mm | 600mm |
Film thickness | 0.01-0.15mm | 0.01-0.15mm |
Max.output | 15-30kg/h | 15-35kg/h |
Screw diameter | Φ45 | Φ50 |
Screw L/D | 30:1 | 30:1 |
Driving motor | 11kw | 15kw |
Gearbox | 133 | 146 |
Die size | Φ50 | Φ60 |
Weight | 2000kg | 2500kg |
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
Possible Product
Why choose us?
We are committed to ensuring that our customers receive the highest level of satisfaction.
We are able to understand the deep needs of our customers more accurately and provide more attentive customer service.
We offer a comprehensive warranty and maintenance program to ensure our customers' satisfaction.
The quality inspection department shall strictly control the quality and resolutely prevent unqualified products from leaving the factory.
Our production facilities are equipped with the latest technology to ensure our machines are of the highest quality.
To provide customers with "advanced production technology and high-quality Mini Film Blowing Machine" is our goal. Over the years, we have always adhered to the business philosophy of "product standardization and service standardization", and led technological innovation with advanced technology and advanced technology to improve the quality of our products.
Our machines are eco-friendly and designed to minimize waste and energy consumption.
Our company insists on improving staff quality, improving management level, enhancing cohesion and competitiveness, and achieving sound and rapid development.
Our machines are designed to be easy to use and maintain.
More and more consumers are becoming concerned about sustainability when choosing the products and brands they want to buy, thus we are committed to creating low-carbon and energy-saving Mini Film Blowing Machine.
