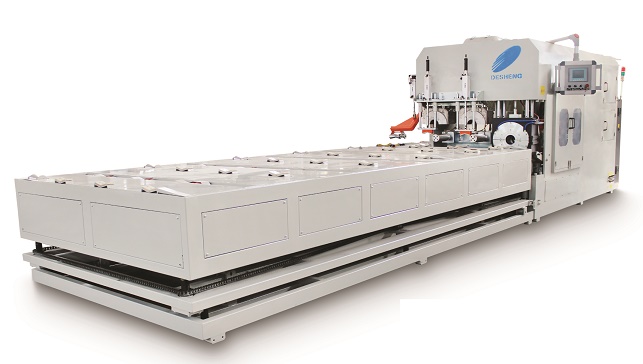

Automatic PP/PE belling machine DS160PP-NI 989 Favorites

Product Categories: Pipe Belling Machine
Packaging Details:	Trademark:
Certification:
Payment Terms：
FOB:	HS Code:
Loading Port：

Changzhou Desheng Mould Factory
Company type： Manufacturer	Credit：
Main products： Belling Machine

Get Quotation

Contact Supplier

To：	Jenny
Subject：
Message：	You can also enter 300 characters

Message has been sent successfully.

Post Buying Request

*Subject:
*Matching Rules:	Categories Keywords
*Inquiry Type:
*Keywords:	+ max five keywords
	Added:
	Note:you can add at least one keywod and most five keywords
*Categories:	Add Delete
*Detailed Description:
	Note: Please write your requirement in detail
Attachments：	+ Note: Attachments will help you get accurate solutions Note: Attachments can help you get accurate solution from suppliers
Max quotations want to receive：
	I agree to share my business card with quoted suppliers

Submit Inquiry

No matched supplier

Public souring

Your inquiry has been submitted successfully but 0 supplier matched at present, you will get quotations from Public Sourcing.

Close

Your inquiry has submited successfully and suppliers have been matched by LookingPlas,You will get the quotations as soon as possible.

Close

You had already registered,no need join again.

Registered successfully.

Sorry only Buyer can register the activities.

Pipe standards	Model	DS160PP-NI
	Pipe Diameter	40mm – 160mm
	Pipe Length	3m - 6m
Heating	Oven	2 heating stations, Contact heating by Aluminum block，Stainless steel heating tube, with internal heating
Heating	Heating Power	22KW
Pneumatic	Compressed air pressure	0.6Mpa
Pneumatic	Ext-pressure	2.5MPa
Water	Water pressure	0.4Mpa
Hydraulic	Hydraulic pressure	6.3Mpa
Operating principle	U-type	Pushing the mould into pipe directly
	J-type	Blow air by inner mould, and take shape by outer mould
	Cooling type	Water – cooling and air cooling
	Machine speed	30S to 100S
	Mould material	U-type：45# steel with Cr electroplating
	Mould material	J-type：45# steel with Cr electroplating
Equipment Specification	Total power	28KW
	Machine weight	2600kg
	Machine dimension	7140mm(L)×2100mm(W)×2000mm(H) 1*40GP
