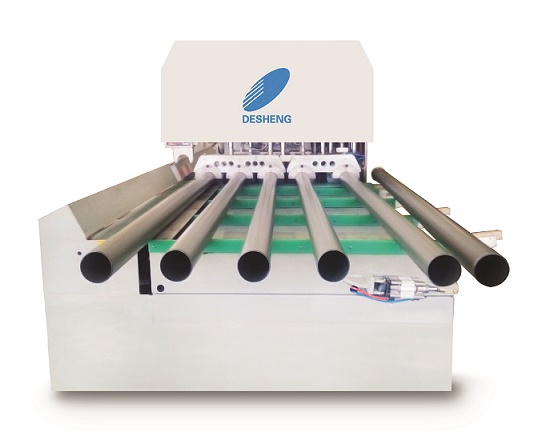

Automatic PP/PE fast belling machine DS160PP-NII 1208 Favorites

Product Categories: Pipe Belling Machine
Packaging Details:	Trademark:
Certification:
Payment Terms：
FOB:	HS Code:
Loading Port：

Changzhou Desheng Mould Factory
Company type： Manufacturer	Credit：
Main products： Belling Machine

Get Quotation

Contact Supplier

To：	Jenny
Subject：
Message：	You can also enter 300 characters

Message has been sent successfully.

Post Buying Request

*Subject:
*Matching Rules:	Categories Keywords
*Inquiry Type:
*Keywords:	+ max five keywords
	Added:
	Note:you can add at least one keywod and most five keywords
*Categories:	Add Delete
*Detailed Description:
	Note: Please write your requirement in detail
Attachments：	+ Note: Attachments will help you get accurate solutions Note: Attachments can help you get accurate solution from suppliers
Max quotations want to receive：
	I agree to share my business card with quoted suppliers

Submit Inquiry

No matched supplier

Public souring

Your inquiry has been submitted successfully but 0 supplier matched at present, you will get quotations from Public Sourcing.

Close

Your inquiry has submited successfully and suppliers have been matched by LookingPlas,You will get the quotations as soon as possible.

Close

You had already registered,no need join again.

Registered successfully.

Sorry only Buyer can register the activities.

Pipe standards	Model	DS160PP-NII
	Pipe Diameter	40mm – 160mm
	Pipe Length	0.3m - 3m
Heating	Oven	3 heating stations, Contact heating by Aluminum block，Stainless steel heating tube, with internal heating
Heating	Heating Power	26KW
Pneumatic	Compressed air pressure	0.6Mpa
Pneumatic	Ext-pressure	2.5MPa
Water	Water pressure	0.4Mpa
Hydraulic	Hydraulic pressure	6.3Mpa
Operating principle	U-type	Pushing the mould into pipe directly
	J-type	Blow air by inner mould, and take shape by outer mould
	Cooling type	Water – cooling and air cooling
	Machine speed	15S/ two pipes of 50mm 18S/ one pipe of 75mm – 36S/ one pipe of 160mm
	Mould material	U-type：45# steel with Cr electroplating
	Mould material	J-type：45# steel with Cr electroplating
Equipment Specification	Machine type	Automatic, single line, Φ40-Φ50 / 2 pipes/cycle Φ63-Φ160 / 1 pipe/cycle
	Total power	30KW
	Machine weight	3000kg
	Machine dimension	4580mm(L)×2280mm(W)×2000mm(H) 1*20GP
