Home > Product Categories > Corrugated pipe/Winding pipe belling machine

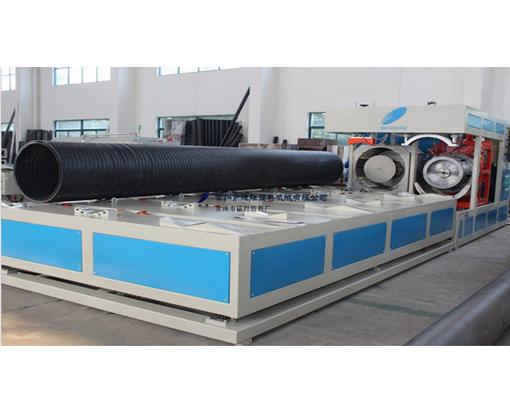

Corrugated pipe/Winding pipe belling machine 963 Favorites

Product Categories: Pipe Belling Machine
Packaging Details:	Trademark:
Certification:
Payment Terms：
FOB:	HS Code:
Loading Port：

Changzhou Desheng Mould Factory
Company type： Manufacturer	Credit：
Main products： Belling Machine

Get Quotation

Model	DS250P	DS400P	DS600P
Pipe Diameter	110mm - 250mm	200mm - 400mm	200mm - 600mm
Pipe Length	3m - 6m	3m - 6m	3m - 6m
Oven	One heating oven, semi-enclosed heated，Stainless steel heating tube with a heat sink and ceramic heating plate	One heating oven, semi-enclosed heated，Stainless steel heating tube with a heat sink and ceramic heating plate	One heating oven, semi-enclosed heated，Stainless steel heating tube with a heat sink and ceramic heating plate
Pipe Rotary	Clockwise and anti-clockwise	Clockwise and anti-clockwise	Clockwise and anti-clockwise
Heating Power	11KW	23KW	42KW
Compressed air pressure	0.6Mpa	0.6Mpa	0.6Mpa
Water pressure	0.4Mpa	0.4Mpa	0.4Mpa
Hydraulic pressure	6.3Mpa	6.3Mpa	8.0MPa
Corrugated-type	Pushing the mould into pipe directly, with expandable belling mould	Pushing the mould into pipe directly, with expandable belling mould	Pushing the mould into pipe directly, with expandable belling mould
Cooling type	Water – cooling or Air- cooling	Water – cooling or Air- cooling	Water – cooling or Air- cooling
Machine speed	100S to 300S	200S to 900S	200S to 1200S
Mould material	Corrugated-type： The collapsible parts are 3Cr13 and 40Cr, other parts 45# steel with Cr electro-plating	Corrugated-type： The collapsible parts are 3Cr13 and 40Cr, other parts 45# steel with Cr electro-plating	Corrugated-type： The collapsible parts are 3Cr13 and 40Cr, other parts 45# steel with Cr electro-plating
Total power	15.5KW	30KW	55KW
Machine weight	2300kg	3000KG	4500KG
Machine dimension	7300mm(L)×1660mm(W)×1950mm(H) 1*20GP	7900mm(L)×2140mm(W)×2125mm(H) 1*40GP	8450mm(L)×2970mm(W)×2250mm(H) 2*40GP
