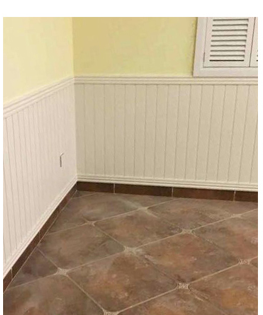

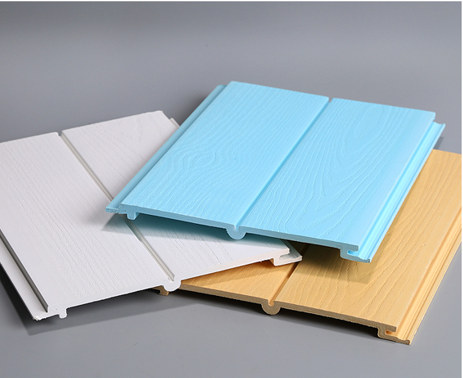

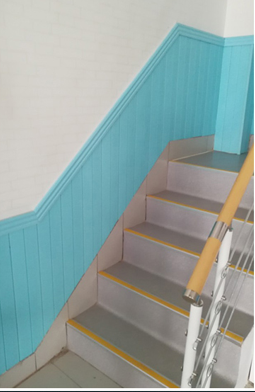

This line is mainly used in process WPC Dado rail & panel .
The unit is composed of conical twin-screw extruder, vacuum shaping table, hall-off machine, cutter, laminator, turning-up flame and others. According to the different profile’s section and moulds, you can choose different specifications of extruders to fit.
The vacuum shaping table adopts special eddy current system to enhance cooling effect. The unique control skills of horizontal tilt and three dimension regulations embody perfectly for convenient operation. According to the different moulds and shaping tables, you can select corresponding sizing tables to meet the requirement of high output.
The tractor uses the unique fluctuation technology and back pressure control with caterpillars around it. The cutter’s move speed keeps with the tractor. It can automatically cut for fixed length and it also equipped with powder recycle device.
Main Technical Parameter of Auxiliary
生产线型号Model | YF210 |
最大型材宽度Max. product width(mm) | 210 |
真空定型台长度Vacuum shaping length(mm) | 2800 |
牵引速度Draw speed(m/min) | 0-8 |
锯片直径Cutting saw Dia. (mm) | 400 |
总功率Total power(kw) | 9.2 |
整条生产线长Length of line(m) | 15.5 |
整条生产线宽度width of line(m) | 1 |
