PVC pipe extrusion machine has features of low energy consumption, high output, stable running etc.

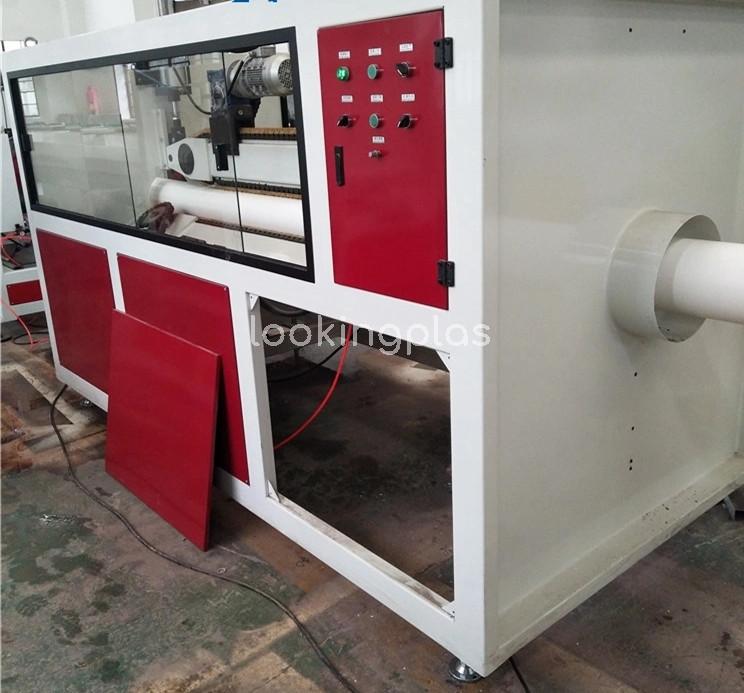

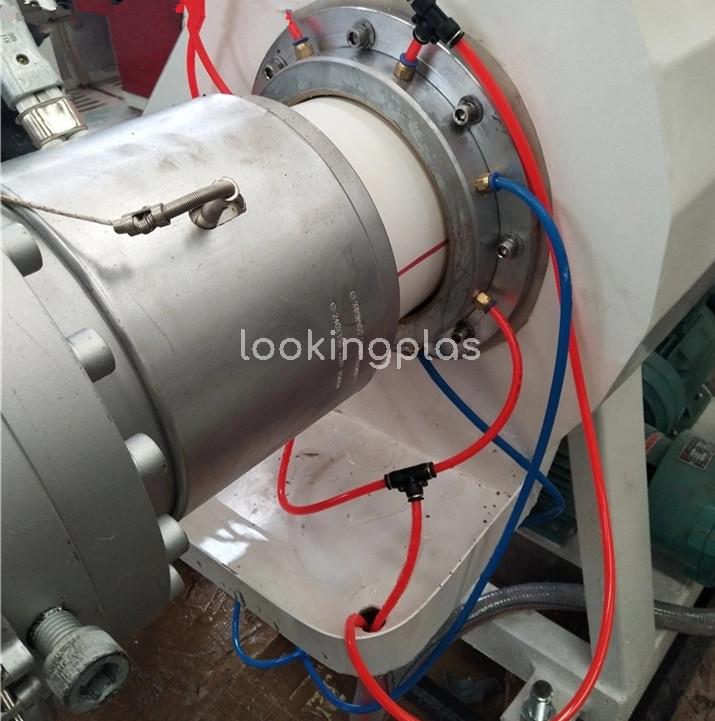

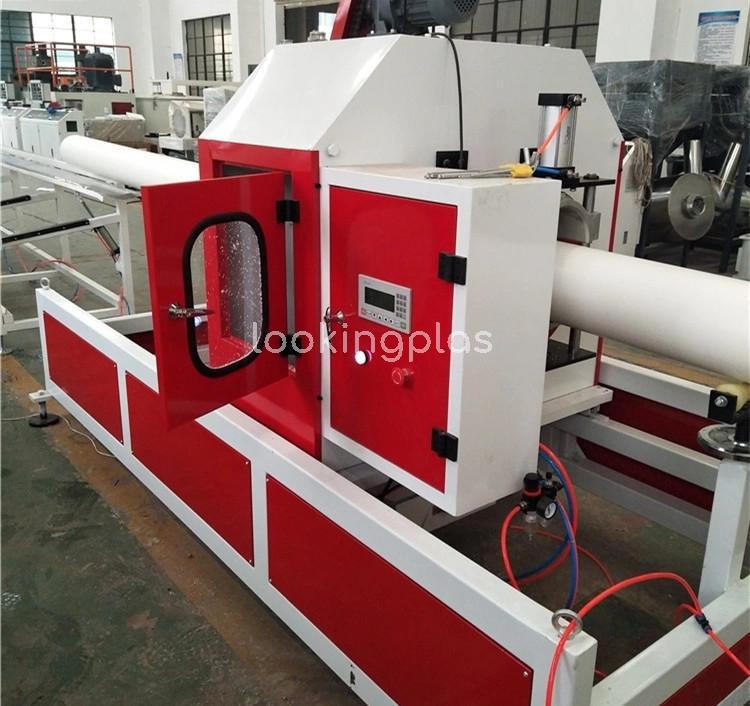

The standard PVC pipe extrusion machine include: material feeder, SJSZ series conic twin screw extruder, mould, vacuum calibration tank, spray cooling tank, haul-off, cutter, stacker.

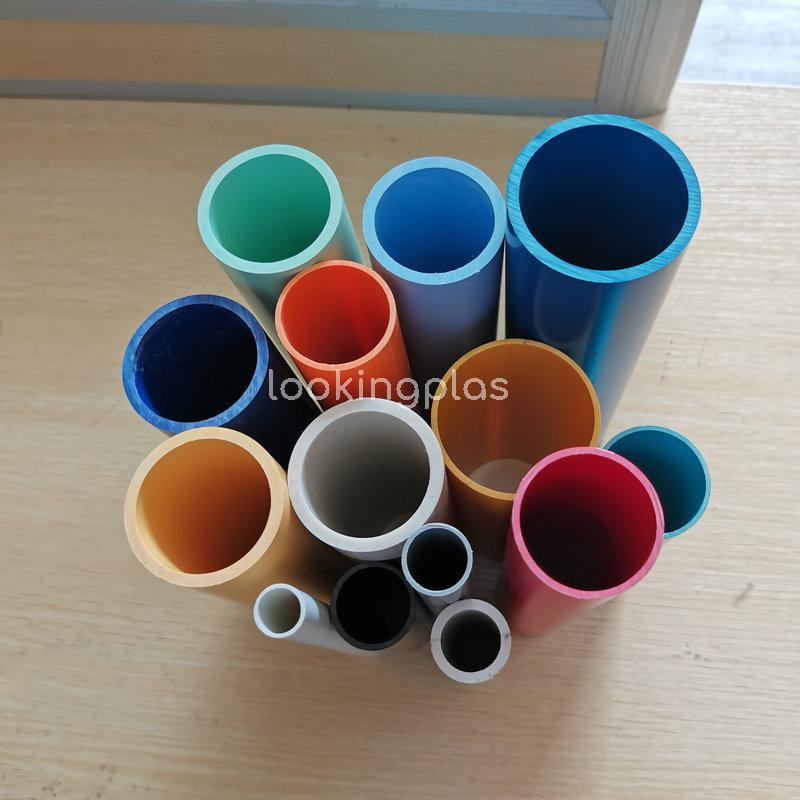

It is mainly used in producing various diameters and wall-thickness of PVC pipes for agriculture and constructional plumbing, electrical conduit etc.
Technical parameter
|
Diameter range(mm)
|
Extruder Model
|
Main motor power(KW)
|
Max. Capacity(KG/H)
|
Max. Haul off speed(m/min.)
|
|
16-40 Dual
|
SJSZ-51/105
|
18.5 AC
|
150
|
10
|
|
20-63 Dual
|
SJSZ-65/132
|
37 AC
|
250
|
15
|
|
20-63
|
SJSZ-51/105
|
18.5 AC
|
120
|
15
|
|
50-160
|
SJSZ-65/132
|
37 AC
|
250
|
8
|
|
63-200
|
SJSZ-65/132
|
37 AC
|
250
|
3.5
|
|
110-315
|
SJSZ-80/156
|
55 AC
|
450
|
3
|
|
315-630
|
SJSZ-92/188
|
110 AC
|
800
|
1.2
|
Note: Informations listed above are for reference only, the production line can be designed by customer’s requirements.
