1. Application & Features:

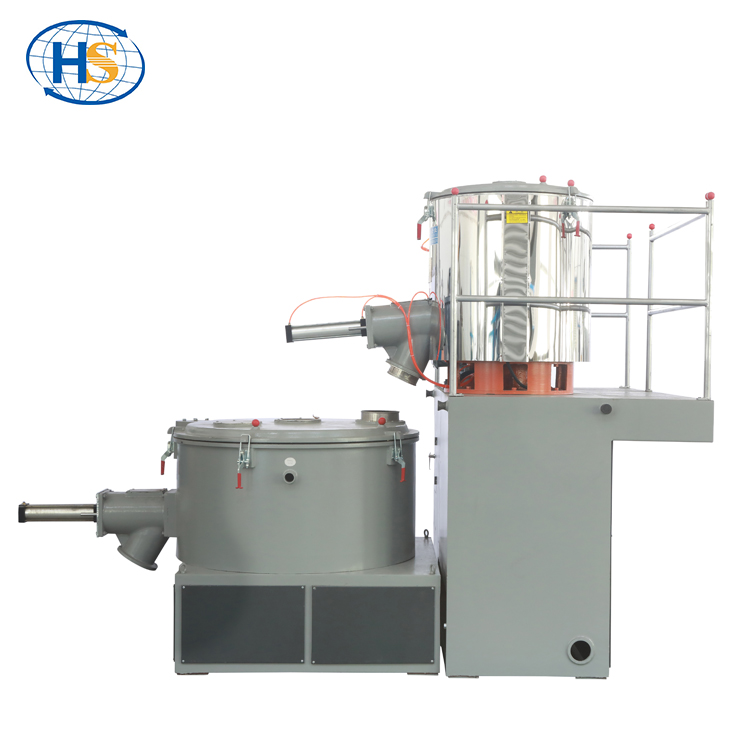

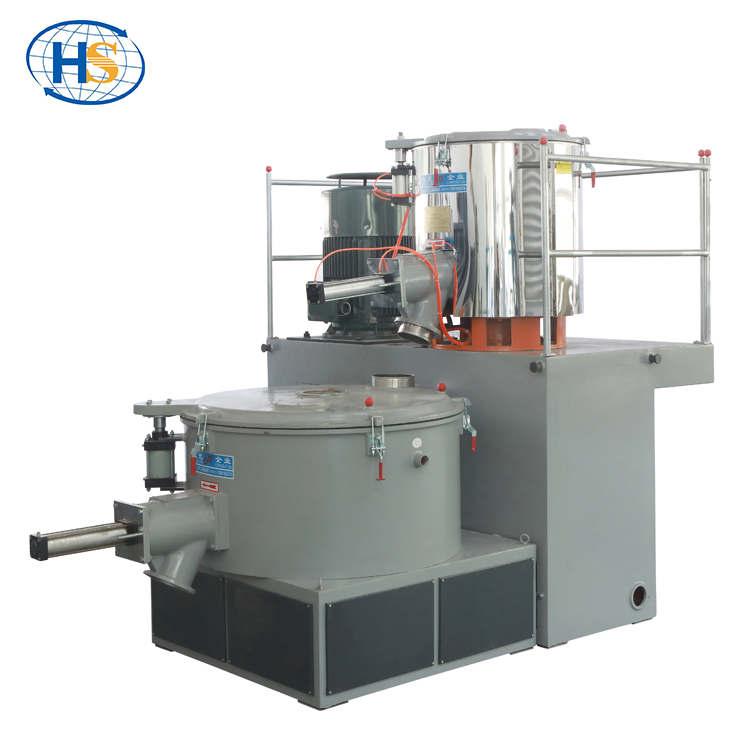

SHLmixed machine unit is mainly applied to burdening, mixing, coloring and drying of various resins such as polyethylene, polypropylene and polrvinyl chloride, drying, dehydration and so on before contour machining of engineering plastics such as ABS and polycarbonate, and mixing of phenol and formaldehyde resins.
The machine set combines hot mixing technology with cold mixing technology. Material which has subjected to hot mixing automatically enters the step of cold mixing and is then cooled, so that residual gas is exhausted and agglomeration is prevented.
2. Internal surfaces in contact with the material are made of stainless steel.
The cover is equipped with safety device; Motor will stop immediately when cover is opened.
3. specific data for the PVC cold mixer machine
Type |
Total volume (L) |
Effective volume (L) |
Electrical power (kw) |
Rotary speed
(rpm) |
Demension
(mm) |
Cooling mode |
Discharging mode |
SHL-100A |
100 |
65 |
5.5 |
200 |
2200*950*1160 |
Water-cooling |
Pneumatics |
SHL-200A |
200 |
130 |
7.5 |
200 |
2480*1050*1260 |
SHL-500A |
500 |
320 |
11 |
130 |
3135*1310*1460 |
SHL-800A |
800 |
500 |
15 |
100 |
3400*1600*1510 |
SHL-1000A |
1000 |
640 |
15 |
70 |
3600*1650*1650 |
SHL-1600A |
1600 |
1050 |
30 |
50 |
3380*2560*2000 |
