135 Twin-screw plastic extruder large output capacity extrusion machine color filler masterbatch line

This twin-screw plastic extruder has a large output capacity, the screw elements(segments) diameter is around 135mm, and all device of this machine line is a special design and made.

135 Twin-screw plastic extruder large output capacity extrusion machine color filler masterbatch line
HS CODE: 8477.2010
Barrels’ hole Dia.: 133.5mm
L/D ratio: 60:1
Motor: 500KW, 995RPM, Max. rated Current : 949Ampere,EFF:96.4%

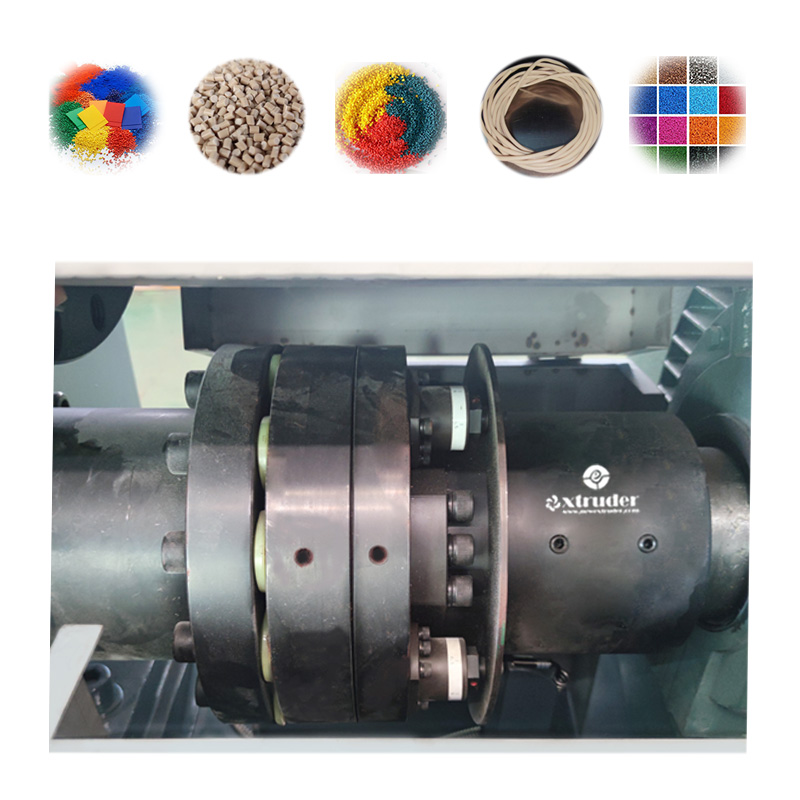

Coupling limited torque: T=5000-7500N.m Jit Brand;
Inverter brand: Yolico, Made in China.
5.5KW motor power for Feeding system
16L Hydraulic workstation

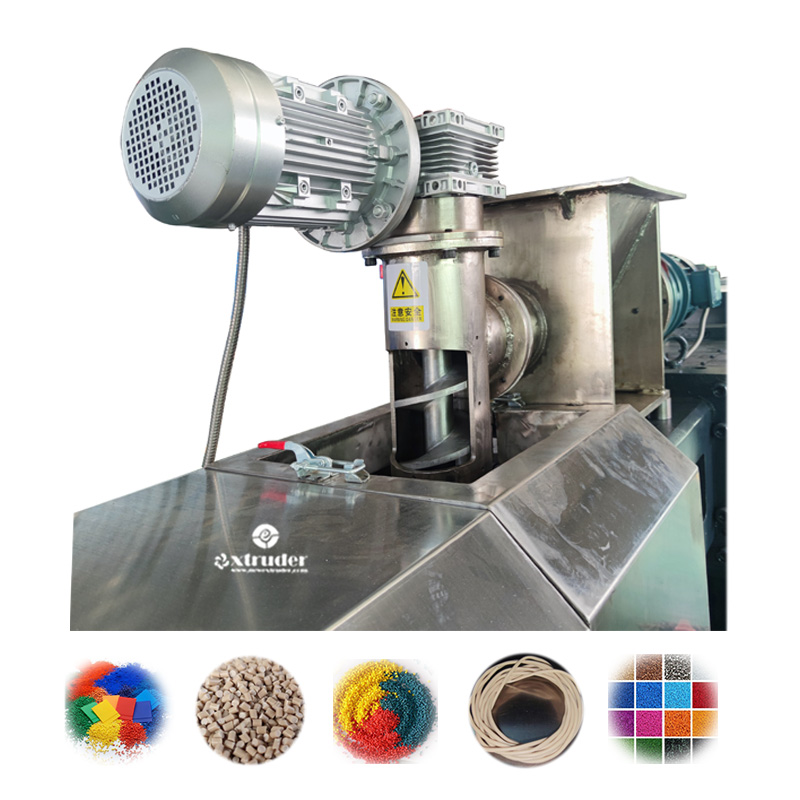

Single screen feeder with Special Verticle type of forced feeding system;

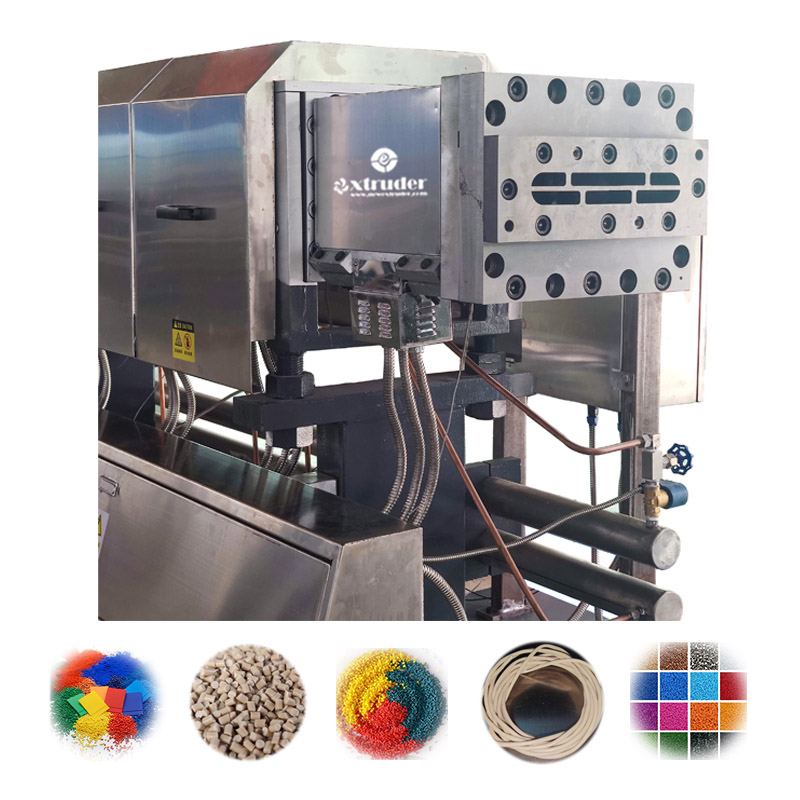

Special extrusion die head for output;
