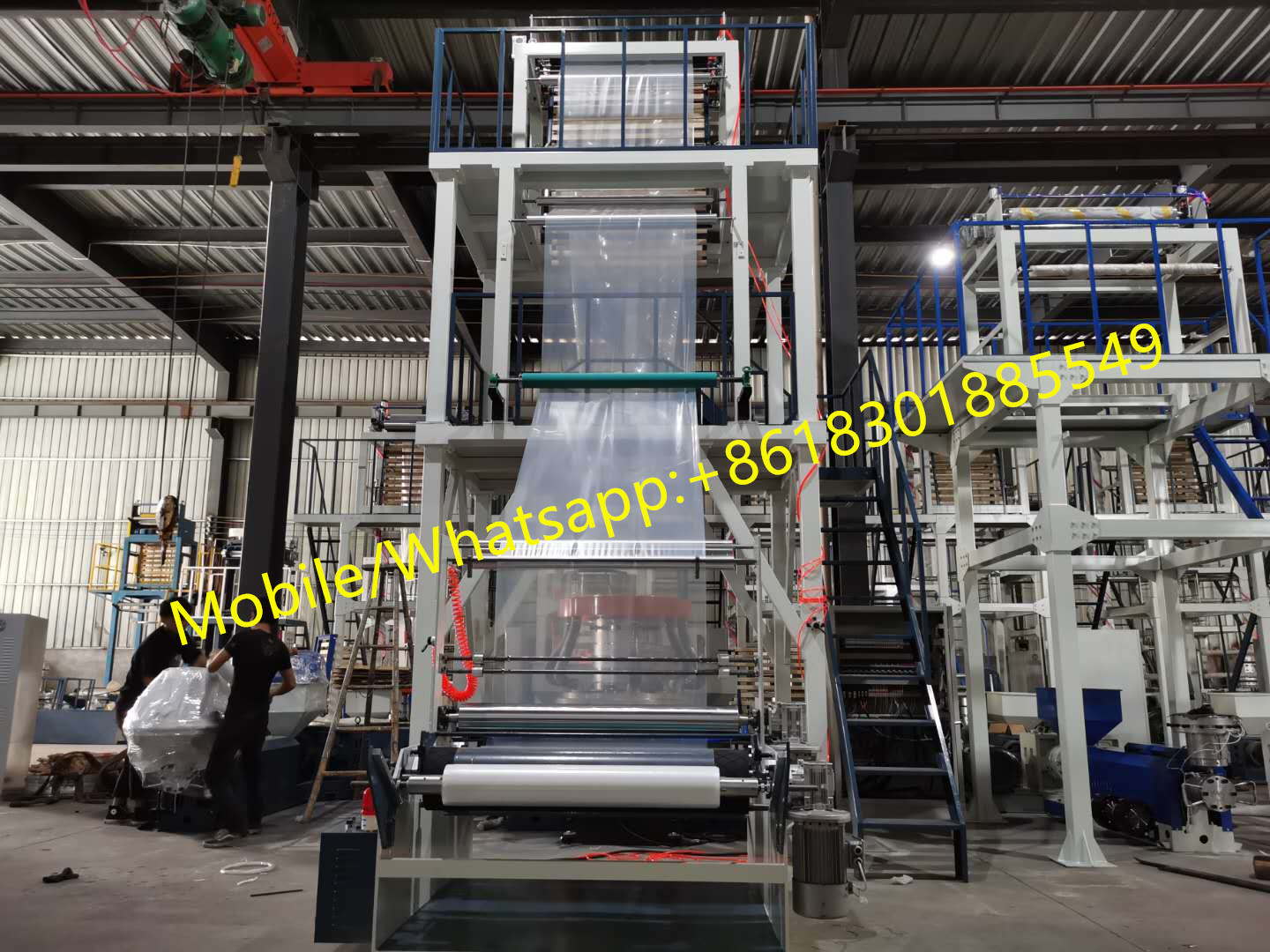

Main usage
Applicable for the materials as LDPE, HDPE, LLDPE, etc. It is widely used to manufacture composite film basic material, liquid film, contractive film, protective film, cable film, macromolecule adhesive film, multi-functional industrial film products, can better meet operational requirements of high accuracy and high speed color printing, composite and painting products.
Features of the machine set
· The tractor adopts horizontal swing ratation which replaces the die rotation and simplifies die structure. It solves problems of leakage, poor sealing and mainternance and improves the quality of film.
· The IBC internal bubble cooling system improves film quality and trasparency, finally increases the output.
· High precision fold diameter control system reduces deviation by controlling air blower speed and adjusting air flow.
· High accurate mould and effective air cooling system ensure high quality film and output.
| Model |
ABA-1200 |
Origin |
|
FEATURE
|
Suitable Material |
HDPE LDPE |
|
| Film Width |
500-1200mm |
|
| Film Thickness |
0.03-0.20mm |
|
| Film Layer No. |
3-ABA |
|
| Max. Extrusion Output |
120kg/h (HD) |
|
| Voltage |
380V, 50HZ, 3PHASE |
|
| Average Power Consume |
55kw |
|
| Machine Dimension (LxWxH) |
7000 x 3300 x 6500 mm |
|
| Machine Weight |
3500kg |
|
| |
| EXTRUDER |
Screw Diameter |
ф60+55High speed screw |
|
| Screw l/d length |
30:1 |
|
| Screw material |
38 Crmoala Alloy |
|
| Cylinder material |
38 Crmoala |
|
| Cylinder cooling |
370w x 6 |
|
| Cylinder Temperature control |
3 Zone |
TAIWAN FOTEK |
| Drum Loader |
Meantime add 50kg x 2 |
|
| Main motor |
18.5kw ,22KW 2 Direct connected motor |
SIEMENS |
| Inverter |
18.5kw +22KW |
Hayner |
| Standard Screen Changer |
2 SET |
|
| Gear Box |
173 S x 2 |
SHUGUANG S Type |
| |
|
DIE HEAD
|
Die size(HD) |
Ф100 |
|
| Die Outer Diameter(HD) |
Ф350 |
|
| Die Height |
550mm |
|
| Die Type |
FIXED TYPE |
|
| Temperature Control |
3 Zone |
|
| Air ring |
2-lip |
DALIAN |
| Air blower |
11kw x 1 With Inverter control |
|
| Width of Air ring |
800mm |
|
| Height of Air ring |
250mm |
|
| Air Pipe |
Ф70 x 6pcs |
|
| |
|
TAKE UP UNIT
|
Embossing roller |
Ф140 x 1300mm |
|
| Embossed rubber roller |
Ф140 x 1300mm |
|
| Take-up pinch roller |
Ф165 x 1300mm (Rubber roller)
Ф165 x1300mm (Smooth roller) |
|
| Roller width |
1300mm |
|
| Effective width |
1200mm |
|
| Take-up speed |
10-100m/min |
|
| Take-up motor |
1.5kw With Inverter control |
|
| Collapsing Plates |
Wood |
|
| Bubble Holder |
Plastic Roll Ball (Electrical Control) |
|
| Gusset |
Wood x 2 |
|
| |
|
WINDING
|
Winding type |
Friction Type Automatic Single Winding
(With Secondary Take-up) |
|
| Winding motor |
1.5kw With Inverter control |
|
| Winding speed |
10-100m/min |
|
| Sectioning knife |
Pneumatic Dissector x 2 SET |
|
| Edge Cutting knife |
2 SET |
|
| Banana Roller |
1 SET |
|
| Winding Roller |
Air Shaft x 2 Ф76 x 900mm |
|
| Winding Steel Roller |
Ф300 x 1300mm |
|
| |
| ELECTRICAL |
Contactor, Breaker, Relay |
|
Schneider |
| Temperature Control |
|
TAIWAN FOTEK |
| |
|
|
| |
|
ADDITIONAL PART
|
Mick Weight System |
2 SET |
CHINA |
| Auto loader |
2 SET |
CHINA |
| Automatic width gauge |
1 SET |
CHINA |
