Electronic Sample Impact Notch Machine
A. Product Introduction
The plastic electric notch prototype machine is a sample making equipment used in the impact toughness test of non-metallic materials by IZOD and simply supported beam impact testing machine. The impact notching prototype machine can be used by laboratories of scientific research institutions, colleges and universities, non-metallic materials manufacturers and other units to make notched sample.
B. Reference Standard for Sample Notch Machine
·ISO180—2000 Plastics - Hard materials - Determination of IZOD impact strength
·GB/T1843—2008 Rigid plastics - IZOD impact testing machine
·JB/T8761—1998 Impact test machine for plastic IZOD
·ASTM D256-2010 Test Method for Determining IZOD Pendulum Impact Strength of Plastics
·ISO179—2000 Determination of Impact Strength of Plastic-Hard Material Simply Supported Beams
·GB/T1043—2008 Impact Test Method for Rigid Plastic Simply Supported Beam
·JB/T8762—1998 Plastic Simply Supported Beam Impact Testing Machine
| Model |
GC-QK-A |
| Table stroke |
＞160mm |
| Feed speed |
30mm/min |
| Sample type |
Type 1、Type 2、Type 3 |
| TypeA |
45±1° r=0.25±0.025 |
| TypeB |
45±1 r=1.0±0.025 |
| TypeC1 |
45±1 r=0.1±0.02 |
| TypeC2 |
thickness 1=2±0.1 r<=0.1 |
| TypeC3 |
thickness 2=0.8±0.1 r=0.2±0.05 |

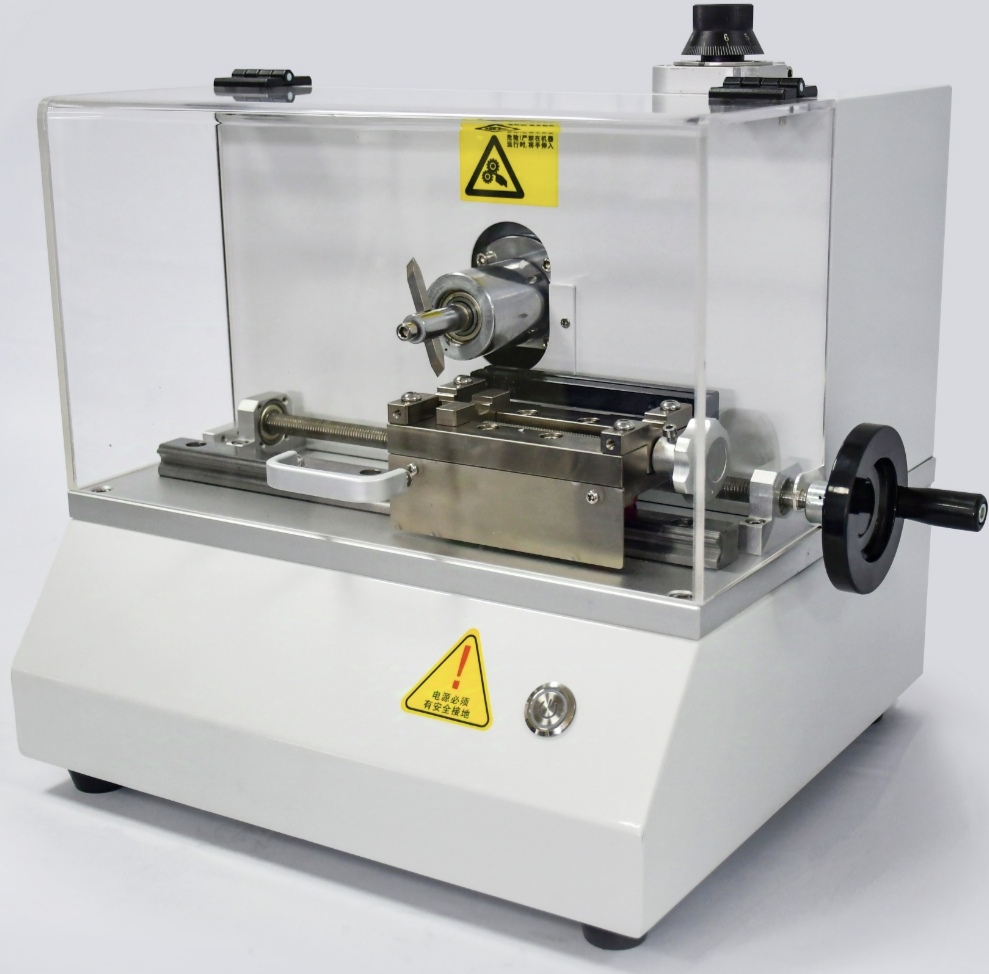

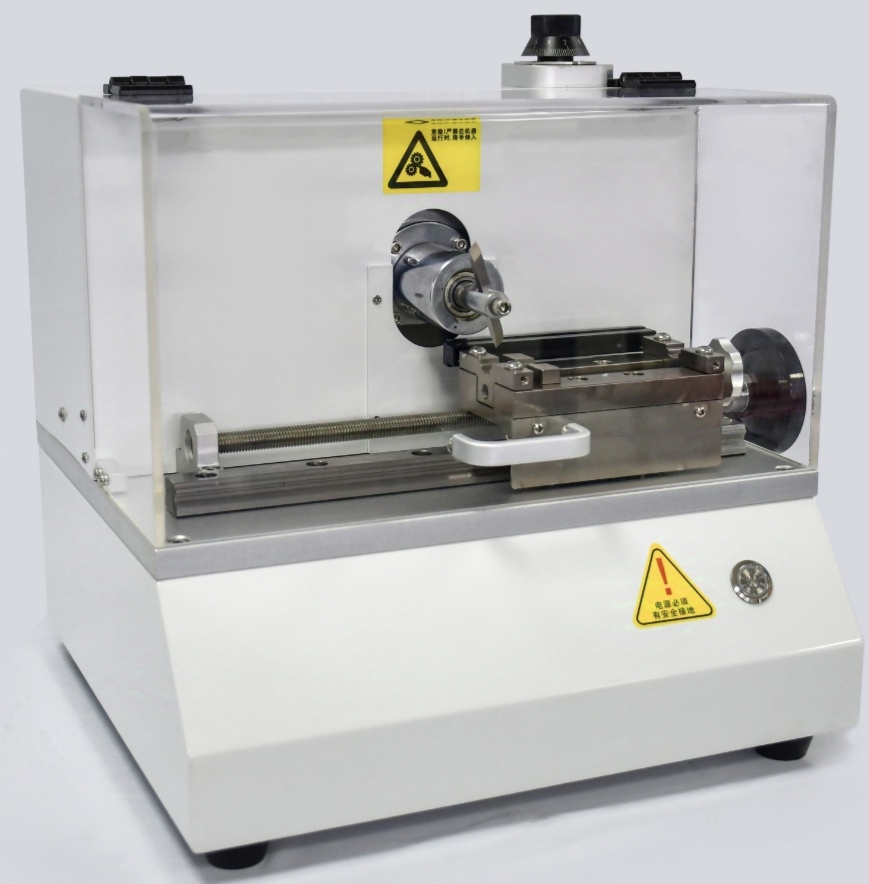

D. Detail photos
