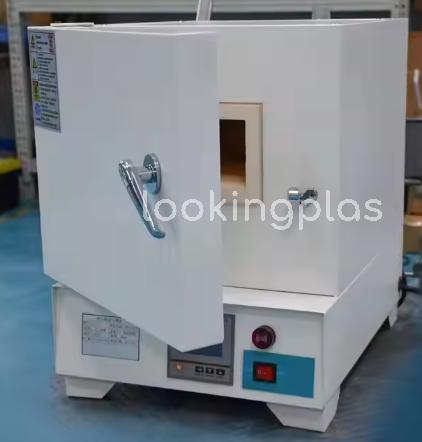

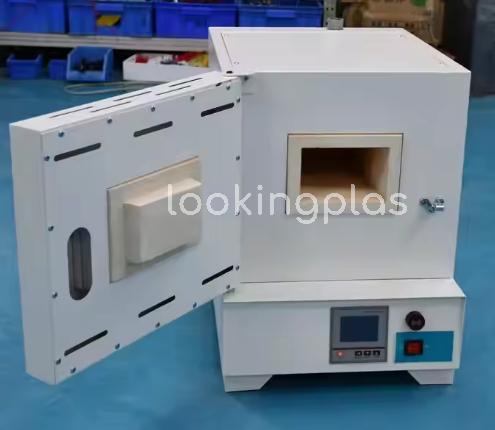

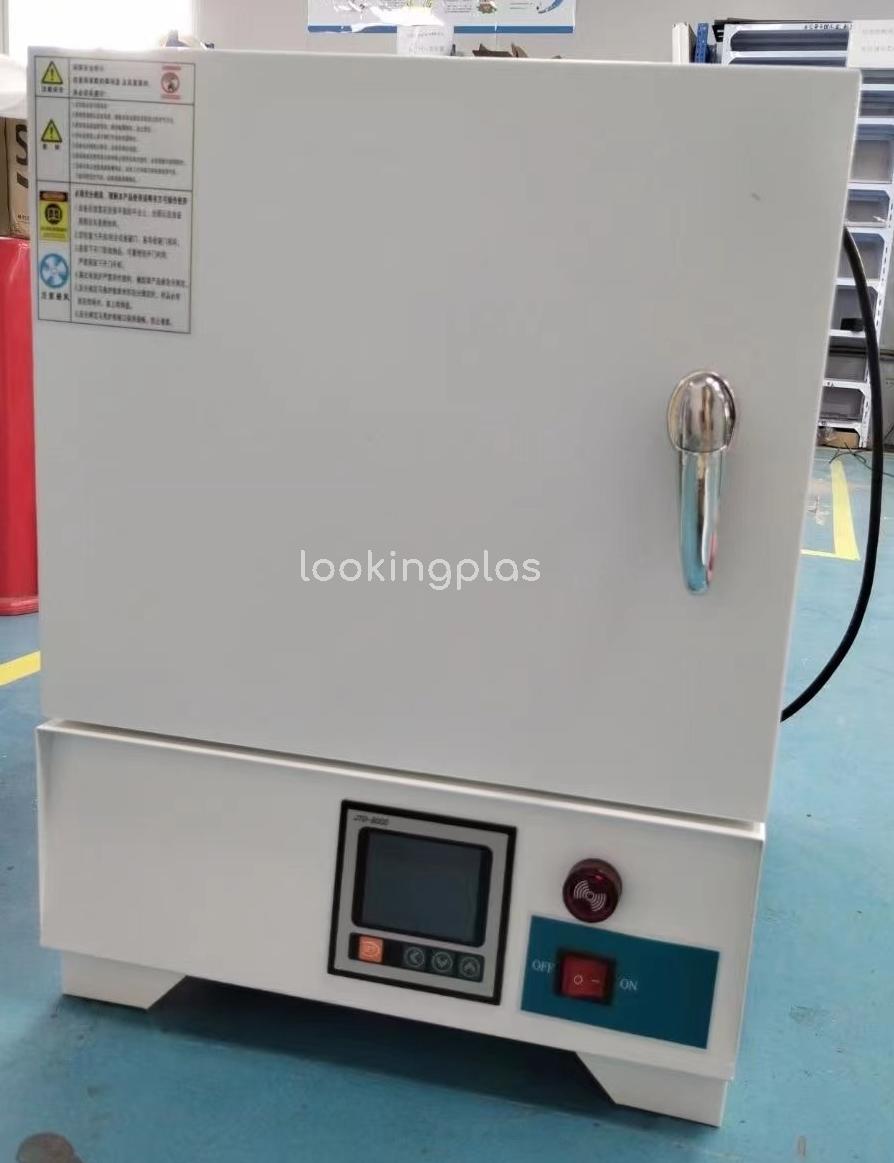

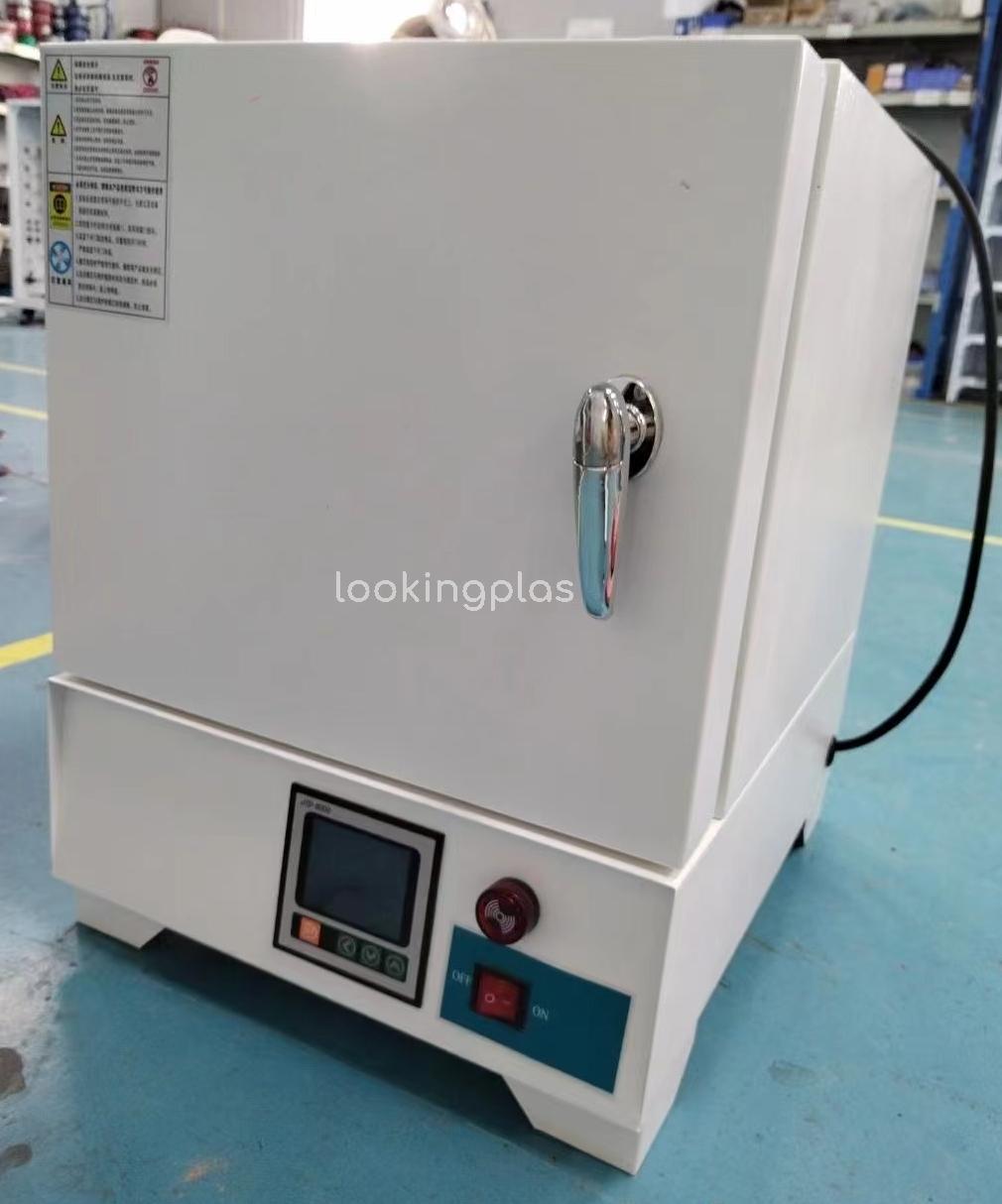

Muffle Furnace

Model: GC-HF-1000

Product Introduction:
Digital display box type high temperature ash furnace, also known as muffle furnace, can be used for chemical analysis, physical
determination and general small steel heat treatment in laboratories of industrial and mining enterprises and scientific research
institutes.

Features:
The shell of this series of electric furnace is made of thin steel plate by flapping welding and drawing, and the inner lining is
rectangular integral lining made of silicon carbide refractory material. The heating element made of helical iron chrome aluminum alloy wire is threaded into the upper, lower, left and right grooves of the inner furnace lining. The furnace is sealed structure.
The furnace mouth brick and door brick are made of light refractory material. The insulation layer between the furnace and the
shell is made of refractory fiber and expanded perlite products. The appearance is made of cold plate processing, and the surface
is bright and smooth with electrostatic spraying.

Parameters:

Type	GC-HF-1000
Temperature Range	100℃-1000℃
Volatility	±2℃
Display accuracy	1℃
Furnace size	80120200mm
Heating rate	Average≤10℃/min
Total power	2.5KW
Power	220V, 50Hz
Furnace shell material	The outer box shell is made of high-quality cold plate, treated with phosphoric acid film salt, and sprayed at high temperature, and the color is computer gray
Furnace material	Using high aluminum inner tank, good wear resistance, high temperature furnace up and down, left and right sides heat up
Insulation method	Thermal insulation brick and thermal insulation cotton
Temperature measurement port	The thermocouple enters from above the rear of the furnace
Terminal	The heating wire terminal is located at the bottom of the furnace body
Controller	Located under the furnace body, built-in control system, compensating wire connected to the furnace body
Heating element	High temperature resistance wire
Standard packaging	Wooden box
Temperature measurement	K - metric nickel - chromium - nickel - silicon thermocouple
