Product Description

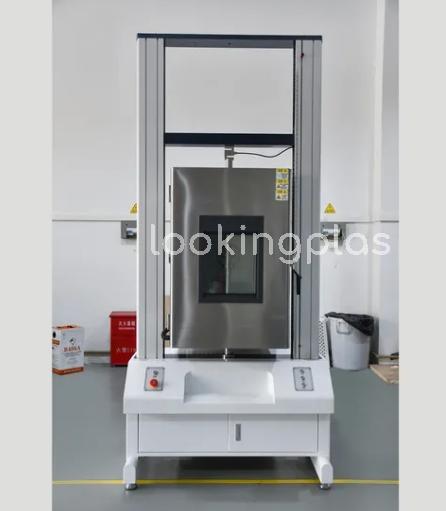

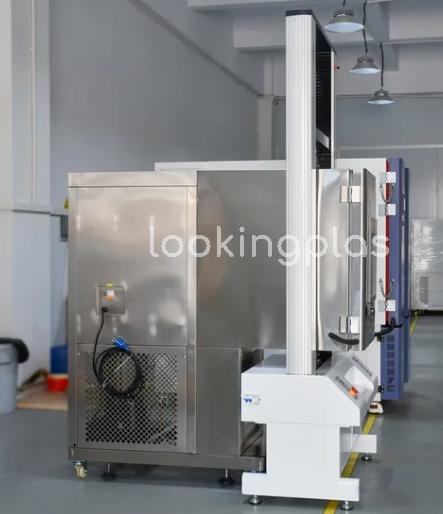

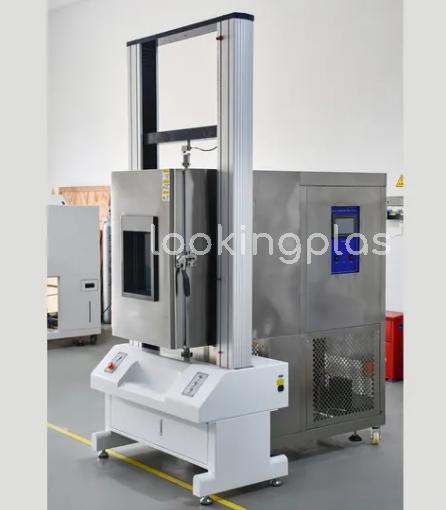

High and Low Temperature Tensile Test Machine

High and Low Temperature Tensile Testing Machine Multi-Material Tensile Tester

Model: GC-WS-2HL

1. Product introduction
A high and low temperature tensile testing machine is a specialized equipment used to test the mechanical properties of materials under extreme temperature conditions. We designed it to measure the tensile strength, elongation, and other properties of a material at both high and low temperatures.

During the test, it subjected the material to a constant tensile force while being exposed to the desired temperature. The machine measures the force applied and the resulting elongation of the material. This data is then used to calculate various mechanical properties, such as tensile strength, yield strength, and modulus of elasticity.

2. Component

The machine comprises a load frame, grips, and a temperature control system. The load frame is used to apply a controlled tensile force to the material being tested. The grips securely hold the material in place during the test.

The temperature control system allows the machine to operate at both high and low temperatures. It typically includes heating and cooling elements, as well as sensors to monitor and control the temperature within the test chamber.

3. Application

They commonly used high and low temperature tensile testing machines in industries such as aerospace, automotive, and materials research, where materials may be subjected to extreme temperature conditions during their application. These machines help to determine the performance and reliability of materials in such conditions, ensuring that they meet the required specifications and standards.

Model	GC-WS-2HL
Type	Double column (gantry-type)
Load range	0~50KN(0-5000KG optional )
Control motor	AC Servo Motor
Servo drivers	AC drive
Temperature range	-40~150degrees
Test speed	0.01~500mm/min
Power accuracy	≤0.5%
Resolution	1/250000
Power unit	N,kg,Lb,KN...
Extensometer	Professional Large Deformation Extensometer (optional)
Extensometer accuracy	±0.01mm(optional)
Test stroke	800mm(optional)
Test width	400mm(optional)
Control mode	Computer software control
Fixture configuration	Including a set of conventional limit test fixture
Protective device	Leakage protection, overload automatic shutdown protection, travel switch protection, etc
Protected mode	Computer printout
Power	220V/50HZ
