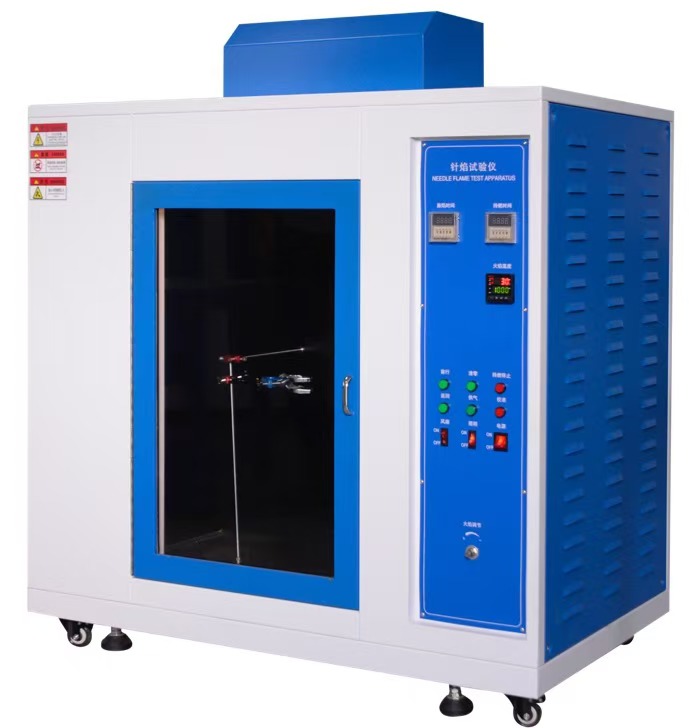

Needle Flame Test Apparatus
Model: GC-ZY-A
A. Product Introduction
The needle flame test machine is suitable for simulating small flames generated inside the product under fault conditions in electronic and electrical products, and uses simulation technology to evaluate the fire hazard. It is suitable for electronic and electrical products, components and parts of household appliances, such as: wiring boards, centrifugal switches, rice cooker sockets
B. Test Standards
IEC884-1 Standard electrical accessories power load cabinet GB2099.1-2008 Plug sockets for home and similar purposes.
Part 1:General requirements IEC335-91 Safety of household appliances and similar appliances.
Part 1:General requirements GB4706.1-2005 Safety of household appliances and similar appliances.
Part 1:General requirements GB5169.5-2008 Fire hazard test methods for electronic and electrical products-Test flame-Needle flame test method UL1694 Burning test method
|
Product Name
|
Needle Flame Test Apparatus
|
|
Control mode
|
Keystroke control
|
|
Outer box dimensions
|
110*65*125(cm)
|
|
Box volume
|
≥0.5m³,With glass observation door
|
|
Timer
|
0-99 minutes and 99 seconds can be set, accuracy ±0.1 second
|
|
Fuel
|
Butane
|
|
Burner specification
|
The length is more than 35mm, the inner diameter is 0.5mm±0.1mm, and the outer diameter does not exceed 0.9mm
|
|
Flame height
|
12mm±1mm adjustable
|
|
Flame humidity
|
The time from 100℃ to 700℃ is within 23.5±1s
|
|
Gas leak detection
|
Gas alarm device (optional)
|
|
Power
|
AC220V, 50Hz
|
