Manual Superficial Digital Touch Screen Rockwell Hardness Tester
Model: XHRS-150
1. Product Information
XHRS-150 Digital Display Plastic Rockwell Hardness Tester is a high-tech product with high precision and stable performance. The interface is menu-based, and the operation is simple, intuitive and convenient. The measuring device adopts grating displacement sensor and ARM32-bit chip control system. It is directly displayed on the screen, which is a mechanical and electrical integration hardness testing instrument.
2. Products Advantages
a. Adopt grating displacement sensor measurement device: display the results through the LCD screen, and can display and set the test scale, test force, indenter type, dwell time, conversion unit, etc.

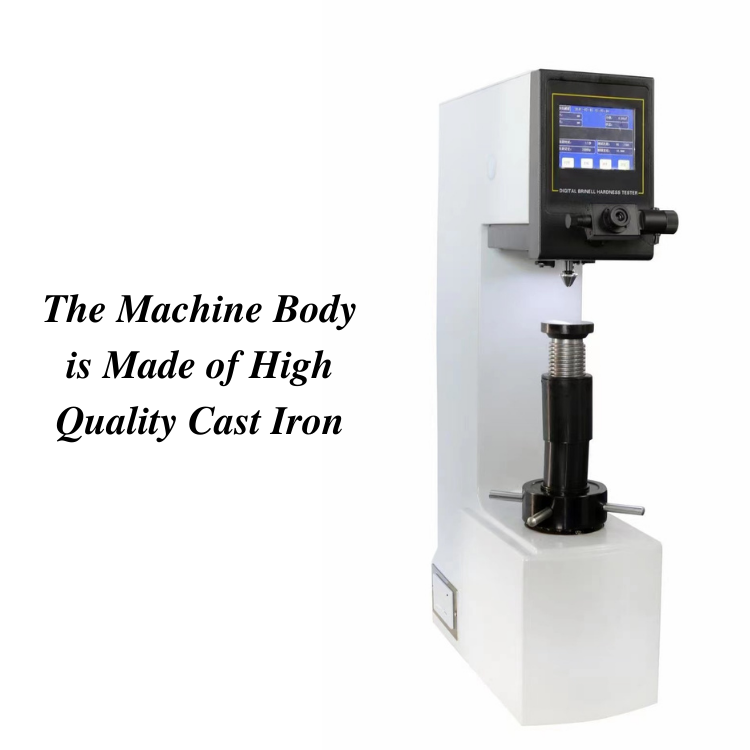

b. The fuselage is made of high-quality cast iron by one-time casting, and is treated with car paint, so the appearance is round and beautiful.
c. Test force: 588.4, 980.7, 1471N (60, 100, 150kgf) three kinds of test force can be changed at will.

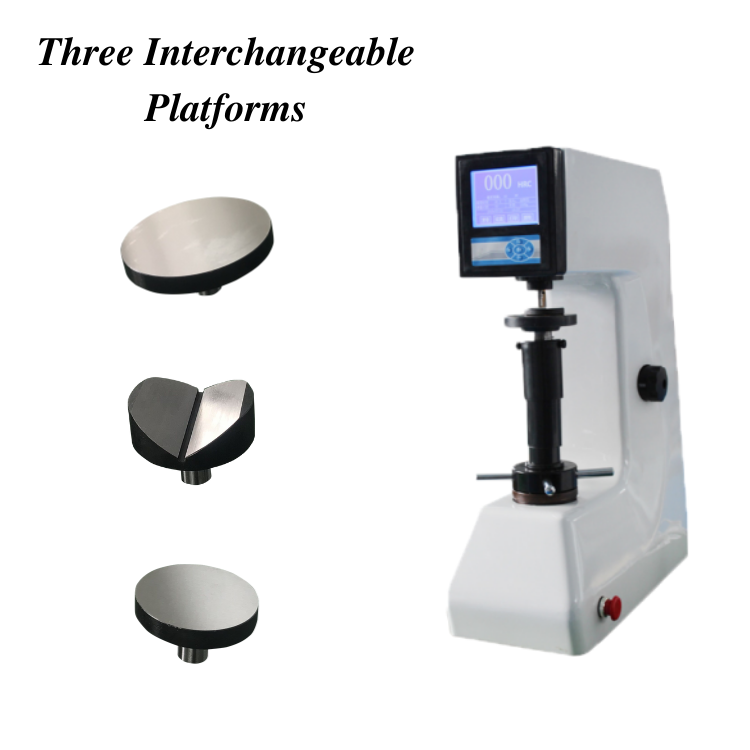

d. Three kinds of interchangeable worktables: equipped with large flat, V-shaped and small flat worktables, which are convenient for measuring the hardness of different workpieces.

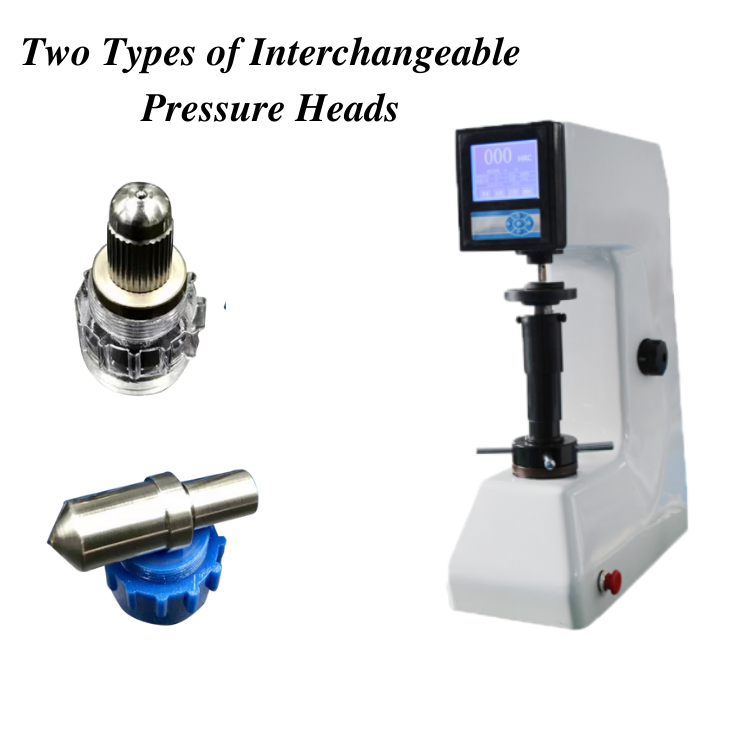

e. Two kinds of interchangeable indenters: equipped with diamond indenter and 1.5875mm indenter, can measure different hardness
3. Specifications
| Test Force |
60,100,150kgf |
| Measuring Range |
70-100HREW,50-115HRLW,50-115HRMW,50-115HRRW |
| Maximum Height |
200mm |
| The distance from the center of the indenter to the machine wall |
130mm |
| Hardness Resolution |
0.1HR |
| Dimensions |
510*290*730mm |
| Weight |
80kg |
| Power Supply |
AC220V,50Hz |
