3 side sealing pouch / central sealing pouch / central sealing gusset pouch
1. It has many kinds of bags for changeble, you can set the fixed parameter.
2. Double servo motor, double inverter driving, the film will not shake even the machine running at a high speed.
3. Coaxial eccentricity transmission mode, long time heat sealing but low temperature.
Servo motor:Yaskawa Japan
Inverter: Yaskawa Japan
Photocell: Datalogic Itlay
PLC control: Panasonic Japan
Certification: CE/ISO:9001

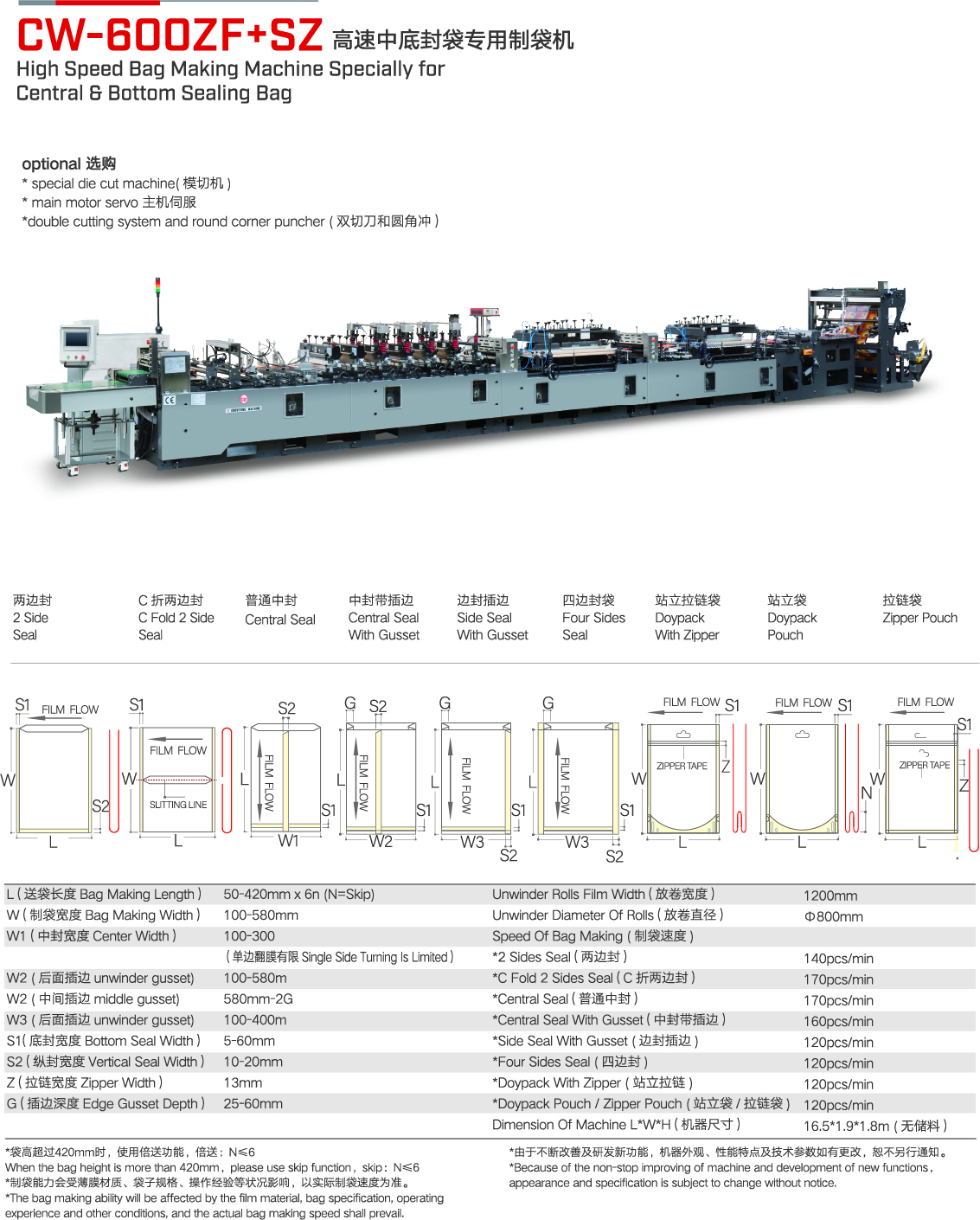

High Speed Bag Making Machine Specially for Central and Bottom Sealing Bag
Newly designed center sealing machine series, tend to be faster and more professional, meanwhile, it can make many type bags. (ZF type series without stand up and zipper functions)
Main Features
1. It has many kinds of bags for changeble, you can set the fixed parameter.
2. Double servo motor, double inverter driving, the film will not shake even the machine running at a high speed.
3. Coaxial eccentricity transmission mode, long time heat sealing but low temperature.
4. Bridge type heavy pressing heat sealing structure, the sealing have a high intensity.
Optional Equipment
1. handle puncher
2. Butterfly type puncher
Detailed Images

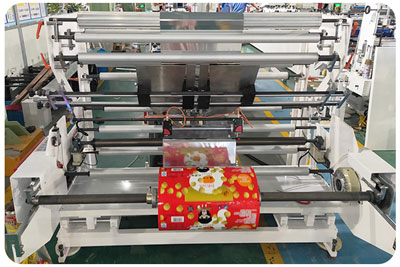

Unwinding device
1. With automatic tension monitor
2. Equipped with plug type and pneumatic locking device
3. With continuous feeding device from unwind
|

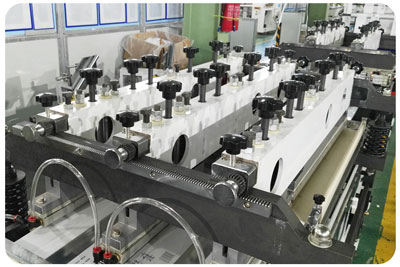

Central sealing device
Vertical-sealing of central sealing adopts 1 groups for heating fluctuation
|
Central sealing device
Vertical-sealing of central sealing adopts 1 groups for heating fluctuation
|

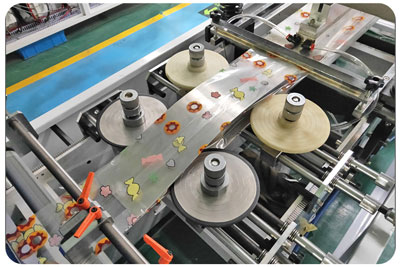

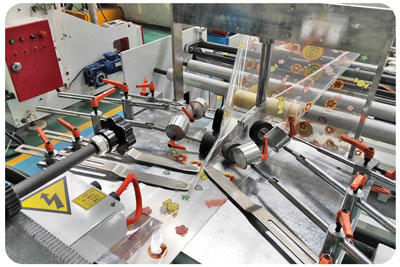

Round bottom gusset device
The single film of stand up bag is folden by the device, the bottom not be cutted.
|

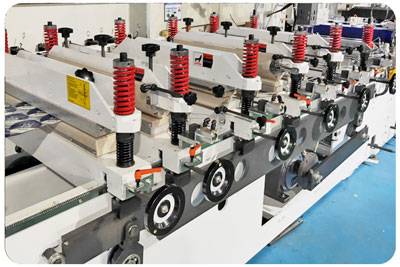

Bottom sealing device
Bottom sealing adopt 3 groups heating fluctuation, 1 group for cooling fluctuation. (3 group K sealing bar for exchange withbottom sealing bar)
|

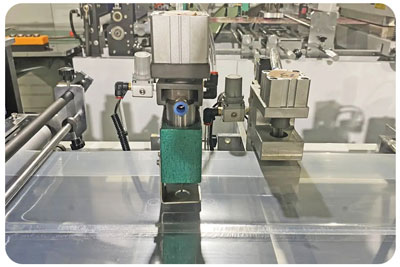

Punching device
standard: easy tear hole& round hole (diameter:6/8/10 each one pcs)optional: handle punch(customerized) euro hole
|
