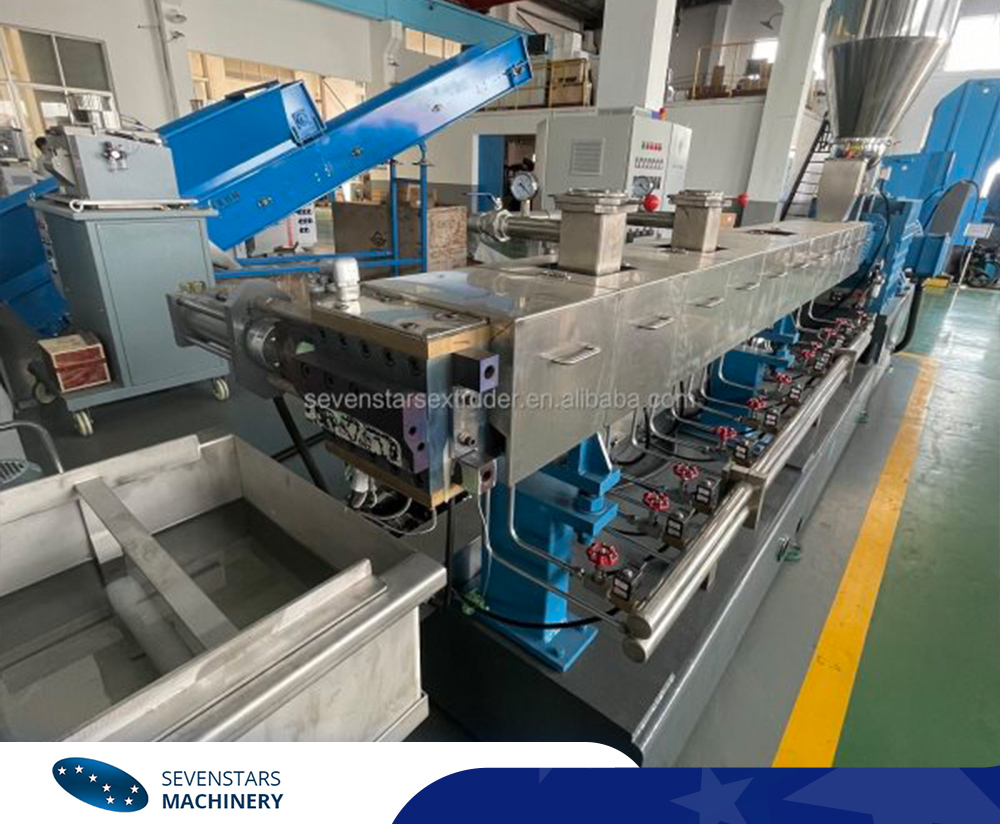

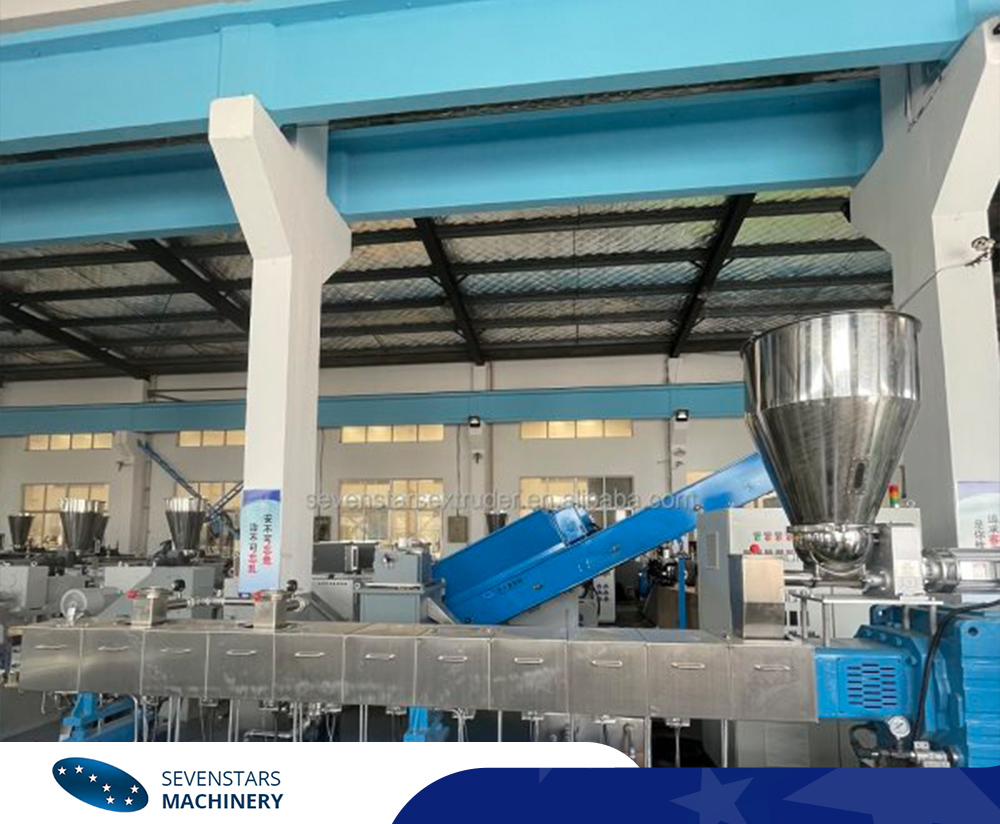

BRP SERIES twin screw extruder design, we offer an optimal solution specifically for PVC processing, looking at the striking advantages, the specially designed screw concept enables every gentle and homogenous plasticizing, long processing unites ensure stable processes and very reliable production in many different applications, you profit from high output and power energy saving , consistently excellent product quality and an outstanding performances riatio-over the whole performances range.
Model(G2) | BRP75 | BRP90 | BRP93 | BRP107 | BRP110 | BRP120 | BRP130` |
Screw diameter(mm) | 75 | 90 | 93 | 107 | 110 | 120 | 130 |
Motor power(KW) | 37 | 55 | 67 | 75 | 90 | 110 | 132 |
Max, rotation speed(rmp) | 45 | 45 | 42 | 38 | 38 | 32 | 30 |
L/D | 26:1 | 26:1 | 28:1 | 26:1 | 28:1 | 26:1 | 26:1 |
PVC pipe output(KG/h) | 350 | 450 | 600 | 800 | 850 | 1100 | 1200 |
