Application:

• This series PET bottle flakes recycling production line is specially designed to produce fiber use PET flakes.

• The flakes can be used for the 2-D, 3-D PSF, filament yarn, PET strap, PET sheet or PET film.

• The PET bottle flakes recycling production line can adopt the PLC automatic control of the full line to control the

final products quality and save energy.

• It can be equipped with theEuropeautomatic material sorting system and color sorting system.

• We also can configure the line according to the raw material and customer requirement.
Plant List &Function

• Bale Opening System — hydraulic bale cutting machine to shearing bottle bale into loose bottles (optional)

• Conveying Equipment — belts, screws for transporting materials

• Metal Detection and Separation Equipment — prevents product contamination and protect processing

equipment(optional)

• Shredders — size reduction of materials (optional)

• Dry or Wet Granulator — size reduction & washing

• Pre-washing and Screening Systems — steam bottle pre-washers and trommels for removal of

contaminants (sand, grit) (optional)

• Hot & Cold Washing and Separation Tanks — cleaning of material and density separation

• Chemical Wash Tanks — removal of greasy dirt and glue (optional)

• Friction Washers — scrubbing of material

• High Speed Dewatering Machine — removal of moisture from products

• Hot Air Drying Systems — reduce the moisture content of the finished product

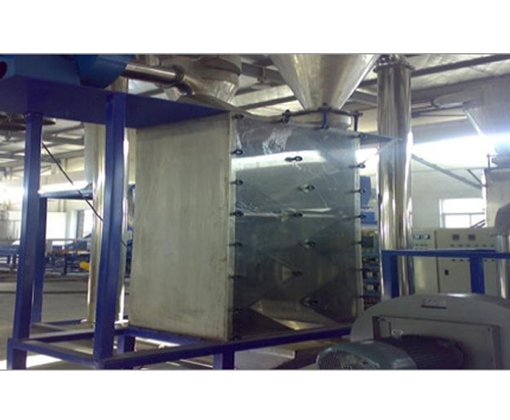

• ZZ (Zig-Zag) Air Classifier — exhaust label/dust/fin out of finished product by fan

• Pack Systems — deliver the finished products into bulk storage silo
