Application range:
Developed by our company has the advantages of compact structure, high output stability, reasonable configuration, high degree of automation of the PVC sheet extrusion production line, for 100% recycling of waste materials, and can produce for transportation, architecture, advertising, industrial PVC sheet
Basic work flow:

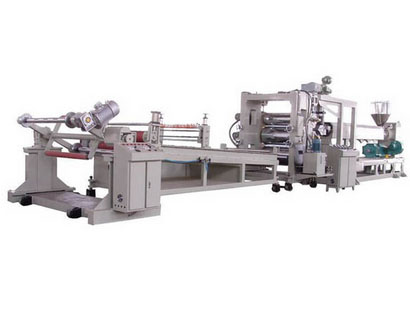

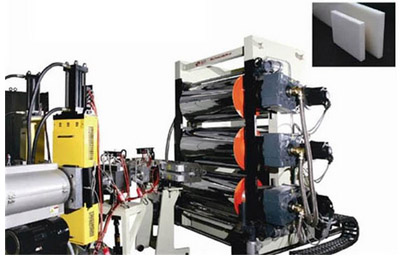

Machine, T mold, vertical three roll calender, cooling bracket, conical twin screw extrusion drawing and duplex winding machine
Device components:
1 this machine unit uses the specially designed SJZ80 or SJZ92 conical twin screw extruder, the import speed control sensor, and the import RKC temperature control instrument, the adjustment scope is wide, the temperature control precision is high, the operation is convenient, reliable.
Including 2 auxiliary cooling bracket, traction, cutter and coiling machine. The equipment of large scale forced refrigeration equipment ensures the plastic effect of the door panel. Crawler traction machine adopts imported motor and sensor, it is the difference between the structure is reasonable, the traction force is big, and the stability of traction. The cutting machine is reliable, operation is correct, high cutting precision.
3. Auxiliary unit using PLC control or domestic famous brand control system, stable and reliable.
Equipment specifications:
Extruder
SJSZ-51/105
SJSZ-65/132
SJSZ-80/156
SJSZ-92/188
Product width
100-320mm
500-1000mm
500-2000
500-3000
Product thickness
0.2-2mm
0.2-2mm
0.2-2mm
0.2-2mm
Main power
18.5KW
37KW
55KW
90KW
Maximum extrusion
120Kg/h
250kg/h
380Kg/h
450Kg/h
Equipment advantage:
1 screw with special mixing function and high plastic;
2.T mode has two flow design, accurately adjust the thickness of the paper;
3 the thickness of the plate should be adjusted by the screw and the roller;
4 separate roller temperature control system can precisely control the thickness of the plate roller, temperature;
5 precision slicing machines, length and number of plates;
6 winding machine large torque motor, the speed and tension can be adjusted;
7 automatic metering setting product length.
