Specifications
PVC Steel Reinforced Hose Production line
1. hose diameter from 12-160mm
2. single screw extruder
3.high extrusion speed

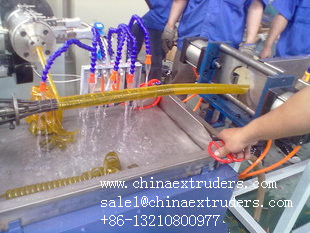

Features of PVC steel reinforced hose production line:

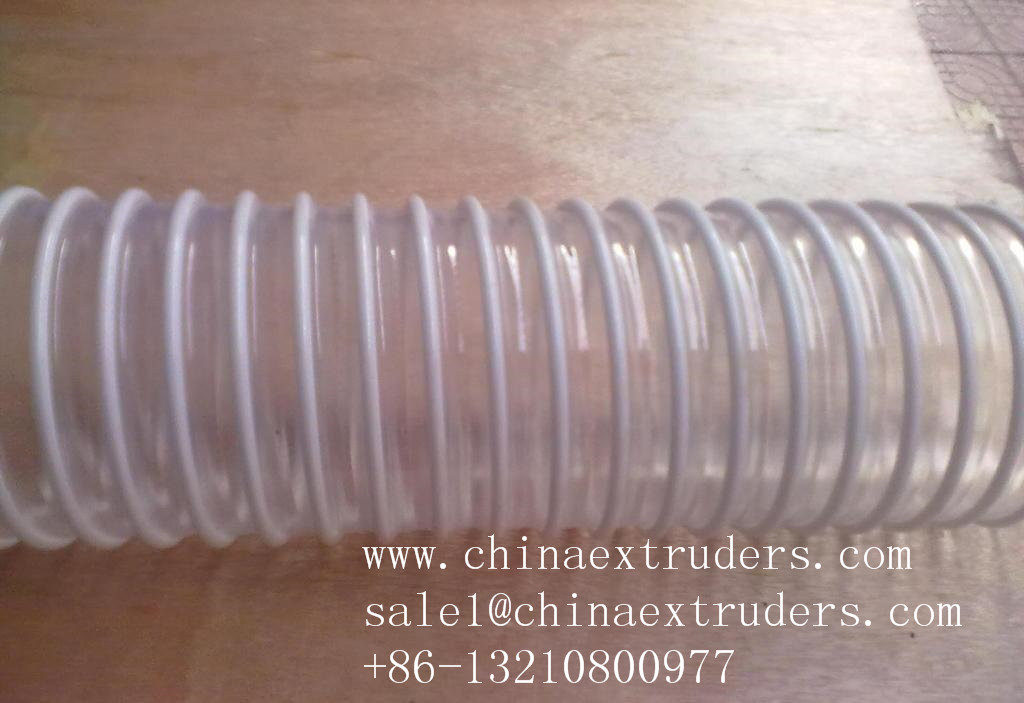

The machine is used to produce PVC steel wire reinforced transparent pipes. The pipe wall is made of transparent PVC plastic. In the pipe inner-wall, there are spiral steel wire. The kind of pipe has the advantage of extrusion resistance, corrosion resistance, static electricity resistance, anti-high pressure and good running. It is suitable for the conveying high pressure or combustible gas and liquid, heavy suction and delivery of liquid sludge. It is mainly used in fields machinery, such as chemical industry, building, irrigation and vacuum pumps,etc.
Type | L.D ratio | Screw Material | Screw Diameter | Motor Power | Total power | Center Height | Produce Area |
MM | KW | KW | MM | MM |
45/30 | 30:1 | 38CrMoAlA | 45 | 7.5 | 15 | 1100 | 12-25 |
65/30 | 30:1 | 38CrMoAlA | 65 | 15 | 32 | 1100 | 25-50 |
90/30 | 30:1 | 38CrMoAlA | 90 | 30 | 49 | 1100 | 50-75 |
100/30 | 30:1 | 38CrMoAlA | 100 | 45 | 69 | 1100 | 75-102 |
120/30 | 30:1 | 38CrMoAlA | 120 | 55 | 84 | 1100 | 102-156 |
Specifications
Spiral and flexible soft hose pipe duct production line making machine
PVC EVA PP PE
flexible soft Spiral and flexible soft hose pipe duct production line making machine
Vacuum cleaner use spiral flexible hose pipe making machine extrusion line
Vacuum cleaner use spiral flexible hose pipe machinery extruding machine line
Vacuum cleaner use spiral flexible hose pipe production line making machine
PVC EVA PU PP PE plastic spiral corrugation hose pipe making machine extrusion line
Qingdao JOY Plastic Machinery Co.,ltd , specialized in researching , studying, designing , and making all kinds of soft , flexible and spiral and different of plastic hose making machinery .
Include :
1. cable protection corrugation hose machine
2. cable protection spiral hose machine
3. vacuum cleaner spiral hose(eva material ) machine
4. swimming pool cleaning hose machine
5. water exhaust hose machine
6. air exhaust hose machine
7. industrial use spiral hose machine
8. medical use hose machine
9. siphon hose machine
10. water drainage hose machine
11. air conditioning drainage hose machine
12. washing machine hose making machine
13. metal spiral hose machine
14. plastic spiral hose machine
15. smoking hookah hose making machine
