Xinda Plastic Machinery Co.,LTD earlier in this industry, and its many years of professional study, PP, PE sheet production line is the pride of my company one of the products, welcome to visit our company.

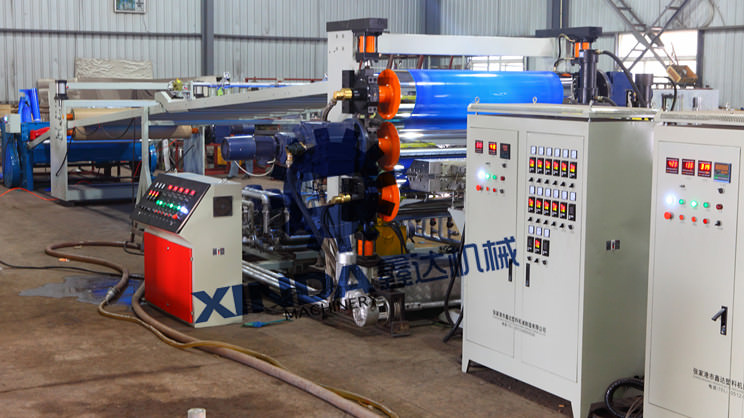

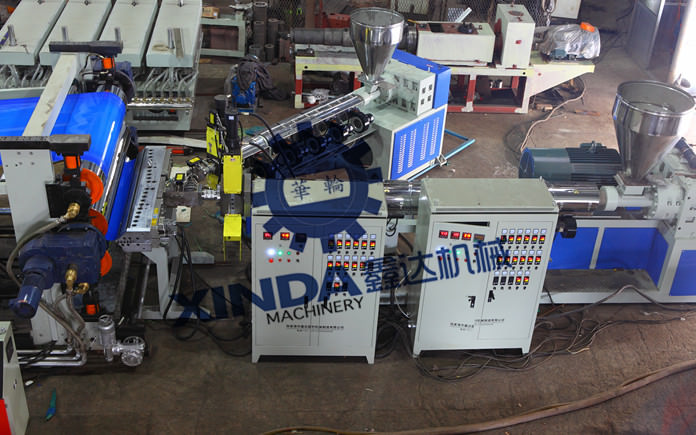

PE,PP sheet Production Line
PP/PE sheet production line introduction:
1.PE sheet Production line is especially designed for the extrusion of single layer or multi -player plate and sheet of pc , pmma,pet or pe.It is also sutitable for the sheet extrusion of pepppsabs and other materials.
2.The screw was designed special mixed material and high plastic,so it flux plastic,color and luster equality, high output.
3.Temperature+/_1C,it can exactitude control the course of plastic and thickness.
4.Moulding unit adopt horizontal and vertical ,it provide more choice in the operate course of thick sheet,sheet metal by fluctuation at liberty and increase quality of sheet.
Technical parameters:
SIZE | width（mm） | Thickness（mm） | Output（kg/h） | Speed（m/min） | Length（m） | Power（kw） |
XDS-1200 | 1200 | 1-8 | 500 | 4 | 30 | 330 |
XDS-1600 | 1600 | 1-8 | 600 | 4 | 35 | 350 |
