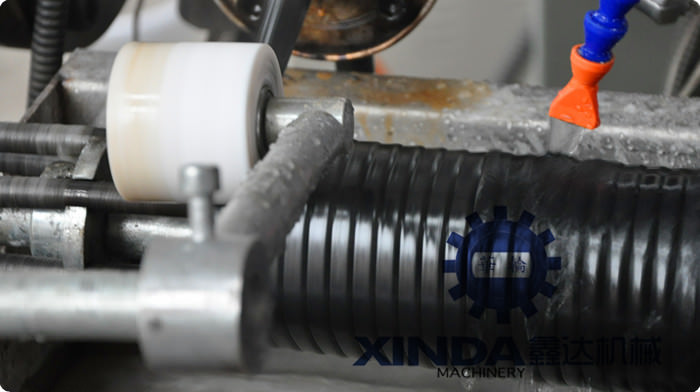

PVC Spiral Reinforced pipe Production Line
This PVC spiral pipe extruding line is our new developed product with advanced foreign technology, its key parts like screw and engine is designed according the character of PVC, its control panel use frequency conversion timing method, its main electronic parts use imported famous brand part. The whole product line has many advanced characters, such as high output, stabilized quality and minor error in finished product,it is really the first class device in current plastic industry. At the same time, . We can provide technical formula and key engineering to our customers.
If you are interested in our product , please be free to contact us。



The Main Technical Specifications
Extruder | 2 set | Pipe forming machine | 1set |

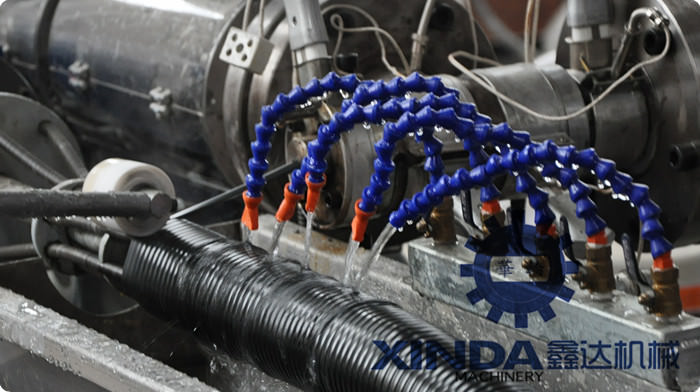

Spray-type cooling device | 1set | Control cabinet | 1set |
Model | XD-SJG-45 | XD-SJG-65 |
Extrude | XD-SJ45×25 | XD-SJ65×28 |
Diameter range | 12-50mm | 32-102mm |
The installed capacity of | 31kw | 58.6kw |
Average energy consumption | 21.7kw | 35.1kw |
Overall dimension (L × W × H) | 15000×4000×1500mm | 18000×5000×2000mm |
Total weight | About 3ton | About 4ton |
