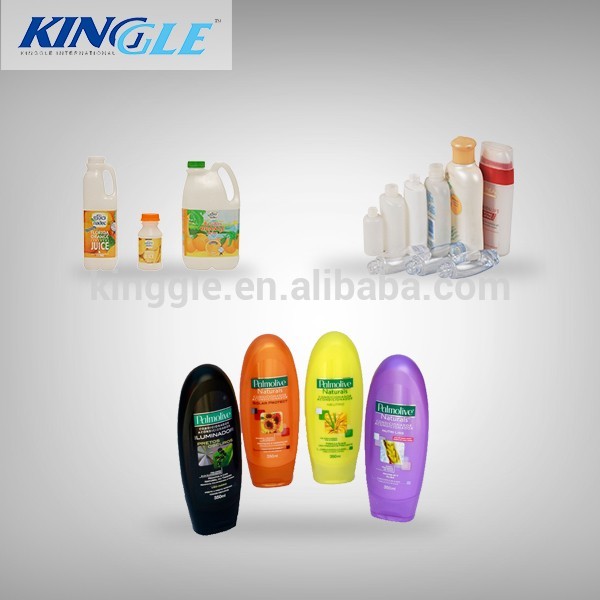

PXB50 is suitable for many kind of bottles from 0.1-2L ,such as sauce boat ,shampoo bottle,
pesticide bottle,transfusion bottle,ripple pipe,toy ,etc.
PLASTIC PRODUCTS
TECHNICAL SPECIFICATION
| Specificaion |
| PXB40 | PXB50 | PXB65 | PXB70 |
| Material | PE.PP.PVC.PA |
| Max container capacity | L | 1 | 2 | 5 | 12 |
| Output(dry Cycle) | PC/HR | 600 | 1500 | 1000 | 800 |
| Dimension(L×W×H) | M | 2.5×1.5×2.286 | 2.8×1.7×2.5 | 3.1×1.8×2.6 | 3.8×2.1×2.8 |
| Total weight | T | 2.5 | 3 | 4 | 5 |
| Clamping unit |
| Clamping force | KN | 33 | 38 | 68 | 95 |
| Platen opening stroke | MM | 100-300 | 130-370 | 150-500 | 200-600 |
| Platen size | MM | 260×300 | 280×370 | 320×370 | 550×420 |
| Max mould size(W×H) | MM |
| 320×370/205×600 | 350×370/238×600 | 580×470 |
| Mould thickinss | MM |
| 135-210 | 153-300 | 210-330 |
| Power |
|
|
|
|
|
| Total power | KW |
| 22 | 32.5 | 64.1 |
| Max dirve | KW | 11.4 | 16.5 | 26 | 37 |
| Fan power for screw | KW |
| 0.25 | 0.25 | 0.4 |
| Oil pump power | KW | 4 | 5.5 | 11 | 15 |
| Air pressure | MPA |
| 0.6 | 0.7 | 1 |
| Air consumption | M3/MIN |
| 0.4 | 0.6 | 0.9 |
| Average energy consumption | KW |
| 12 | 17 | 23 |
| Extruder unit |
|
|
|
|
|
| Screw diameter | MM | 40 | 50 | 65 | 75 |
| Screw L/D ratio | L/D | 24 | 24 | 24 | 24 |
| Output of HDPE | KG/H |
| 35 | 70 | 90 |
| Number of heating zone | ZONE |
| 3 | 3 | 4 |
| Extruder heating power | KW |
| 10.8 | 13.8 | 21.4 |
| Extruder driving power | KW | 7.5 | 11 | 15 | 22 |
| Die-head |
|
|
|
|
|
| Number of heating zone | ZONE |
| 2 | 3 | 3 |
| Power of die heating | KW |
| 4.2 | 5.7 | 5.7 |
| Max die pin diameter | MM |
| 75 | 135 | 180 |
| Center distance of double head | MM |
| 130 | 160 | 250 |
| Center distance of four-head | MM |
| 75 | 85 | 95
|
| Features: |
| Clamping system:Single Station+High-precision guide+large arm cylinder axle |
| Extrusion System:Hard gear surface decelerator+Japan inverter |
| Die system:Center –incoming extrusion die with special steel |
| Hydraulic system:Japan hydraulic valve seal and proportional control |
Control system:Japan PLC+Imported+PLC automatic temperature control model +Imported electrionic parts |

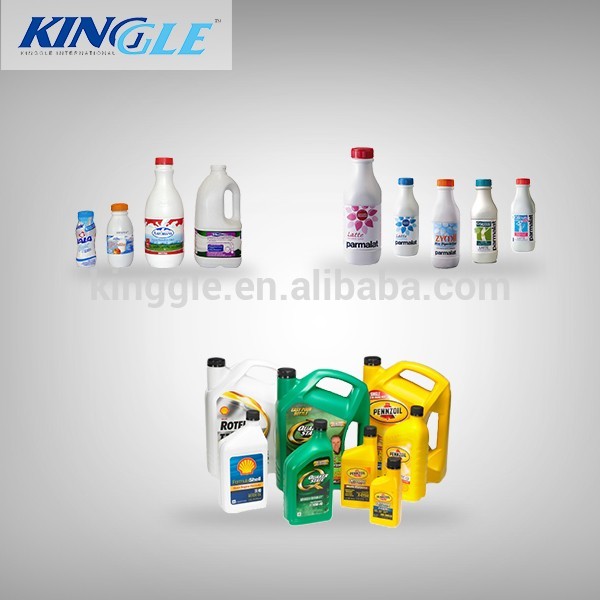

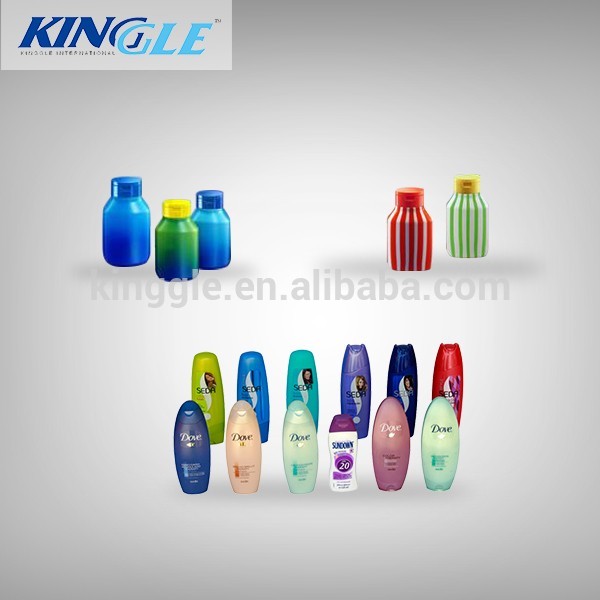

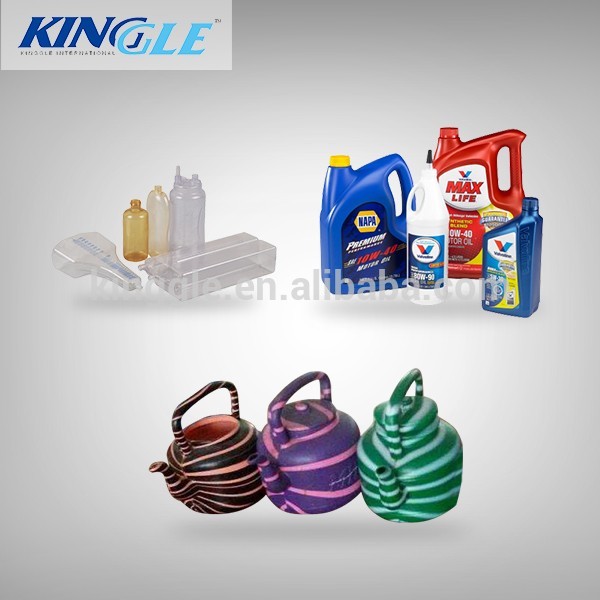

| Application: |
| Dairy |
| Food/ Beverage |
| Cosmetic/Personal care |
| Lub-oil containers |
| Household chemical |
| Industrial |
PXBS Series main configuration
PXB50 OUTPUT
Machine name | Capacity | material | output(24 hours) |
PXB50 single station and single die head( Max make 2L) | 1.5L | HDPE | 5500-6500 |
2L | 5000-6000 |
PXB50 Single station and double die head (Max make 1L) | 0.8L | 12000-16000 |
1L | 14000-18000 |
PXB50 Single station and three die head (Max make 500ml) | 500ML | 21000-25000 |
300ML | 22000-24000 |
PXB50 Single station and four die head (Max make 250ml) | 100ML | 30000-33000 |
200ML | 29500-32500 |
250ML | 29000-32000
|
