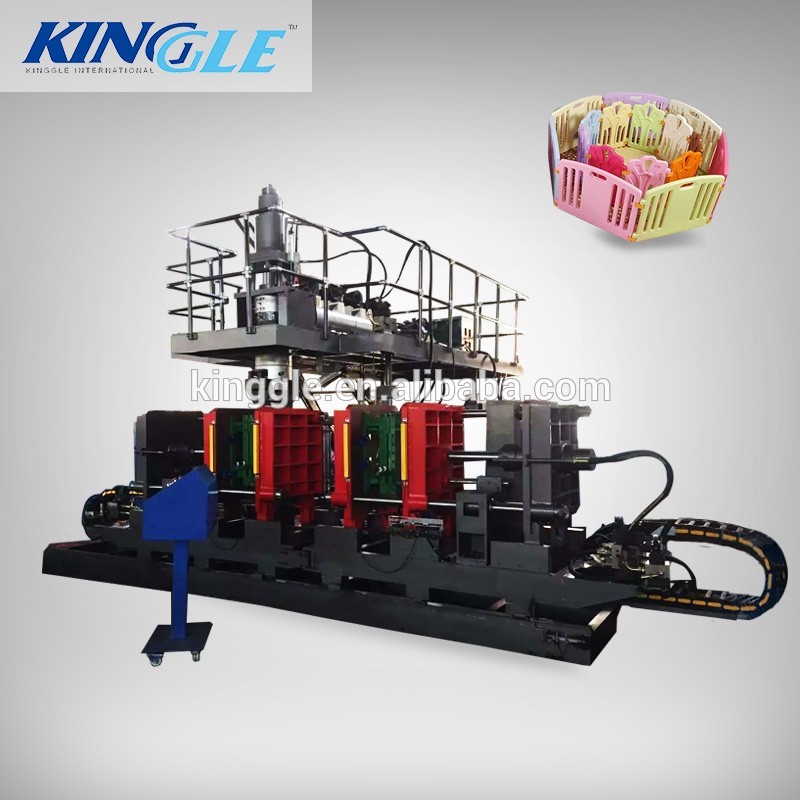

PXB100DB series automatic hollow blow molding machine

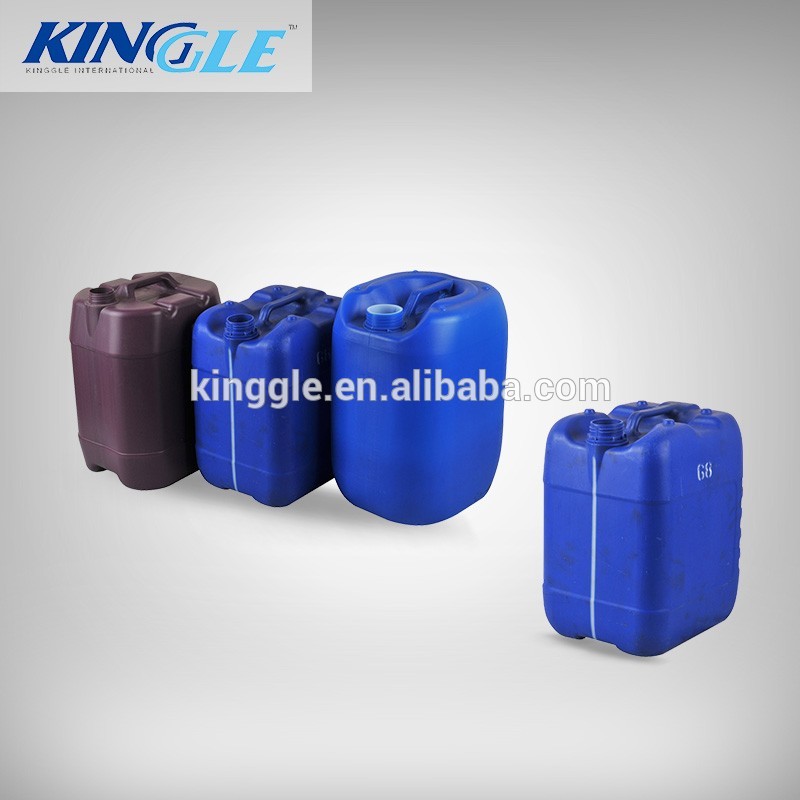

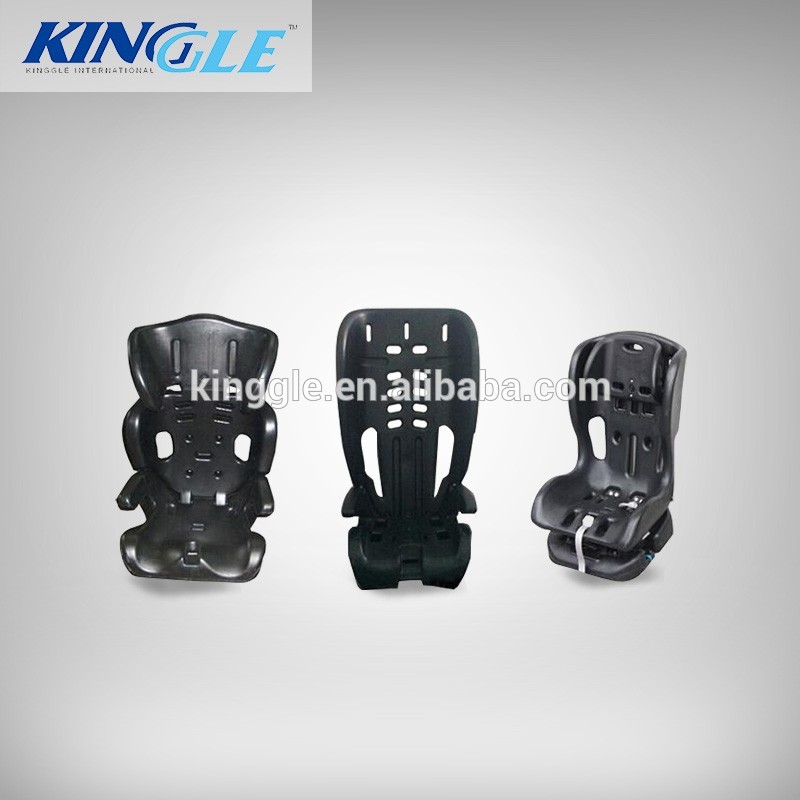

PXB100DB series fully automatic high speed blow moulding machine to produce max 30L chemical packaging bottles, food, building coatings, drug packaging barrels, blow molding tool bags, automobile oil tank ,automobile hollow parts, flexible flow board, hollow seat, desktop board, large blow molding of toys, marina float, blow molding tray and large blow molding pipe , industrial, agricultural, military and other industries of blow molding parts, this machine is especially suitable for PE, PP raw materials such as hollow blow molding, For 1.1KG jerrycan ,the production about 100-140pcs / hour
PLASTIC PRODUCTS
TECHNICAL SPECIFICATION
| Specificaion |
| PXB70 | PXB80 | PXB100DB |
| Material | PE.PP.ABS |
| Max container capacity | L | 20 | 30 | 30 |
| Output(dry Cycle) | PC/HR | 700 | 360 | depand on actual products |
| and productive condition |
| Dimension(L×W×H) | M | 3.5×1.8×3.2 | 4.7×2.6×4 | 6.4X6.2X4 |
| Total weight | T | 8 | 12 | 23 |
| Clamping unit |
|
| Clamping force | KN | 170 | 200 | 200 |
| Platen opening stroke | MM | 200-600 | 400-900 | 400-850 |
| Total power | KW | 38 | 50 | 107 |
| Max dirve | KW | 29.5 | 37.5 |
|
| Fan power for screw | KW | 0.25 | 0.5 |
|
| Oil pump power | KW | 7.5 | 7.5 |
|
| Air pressure | MPA | 0.8 | 1 | 1 |
| Air consumption | M3/MIN | 0.6 | 0.8 | 1.2 |
| Average energy consumption | KW | 18 | 25 | 63
|
| Features: |
| Clamping system:Single Station+High-precision guide+large arm cylinder axle |
| Extrusion System:Hard gear surface decelerator+Japan inverter |
| Die system:Center –incoming extrusion die with special steel |
| Hydraulic system:Japan hydraulic valve seal and proportional control |
Control system:Japan PLC+Imported+PLC automatic temperature control model+Imported electrionic parts |
| Application: |
| Dairy |
| Food/ Beverage |
| Cosmetic/Personal care |
| Lub-oil containers |
| Household chemical |
| Industrial |
PXBS Series main configuration
PXB100DB OUTPUT
Machine type | Capacity | Material | Reference Ouput (24 hours) |
PXB110 blow molding machine (Max 120L) | 120L | HDPE | 430-550pcs |
