1200-1600mm PE pipe production line
We use good quality C model and U model steel as the frame, SIEMENS motor, SIEMENS contactor, OMRON tempertre controller, TTIANYI Button, ABB/FUJI/HOLIP/SHREADER inverter etc. electrical parts.
Choose us, closier to success.
HDPE large diameter plastic pipe production lineis mainly used to machining and manufacturing for PE plasric pipe, and HGF series tube auxiliary eqiupments production line can also use to process other plastic. Extruder and GF series tube auxiliary equipments production line take the features of advanced, reliable and applied together, and provide strong certification for high quality plastic tube for customers.
technological flow chart:

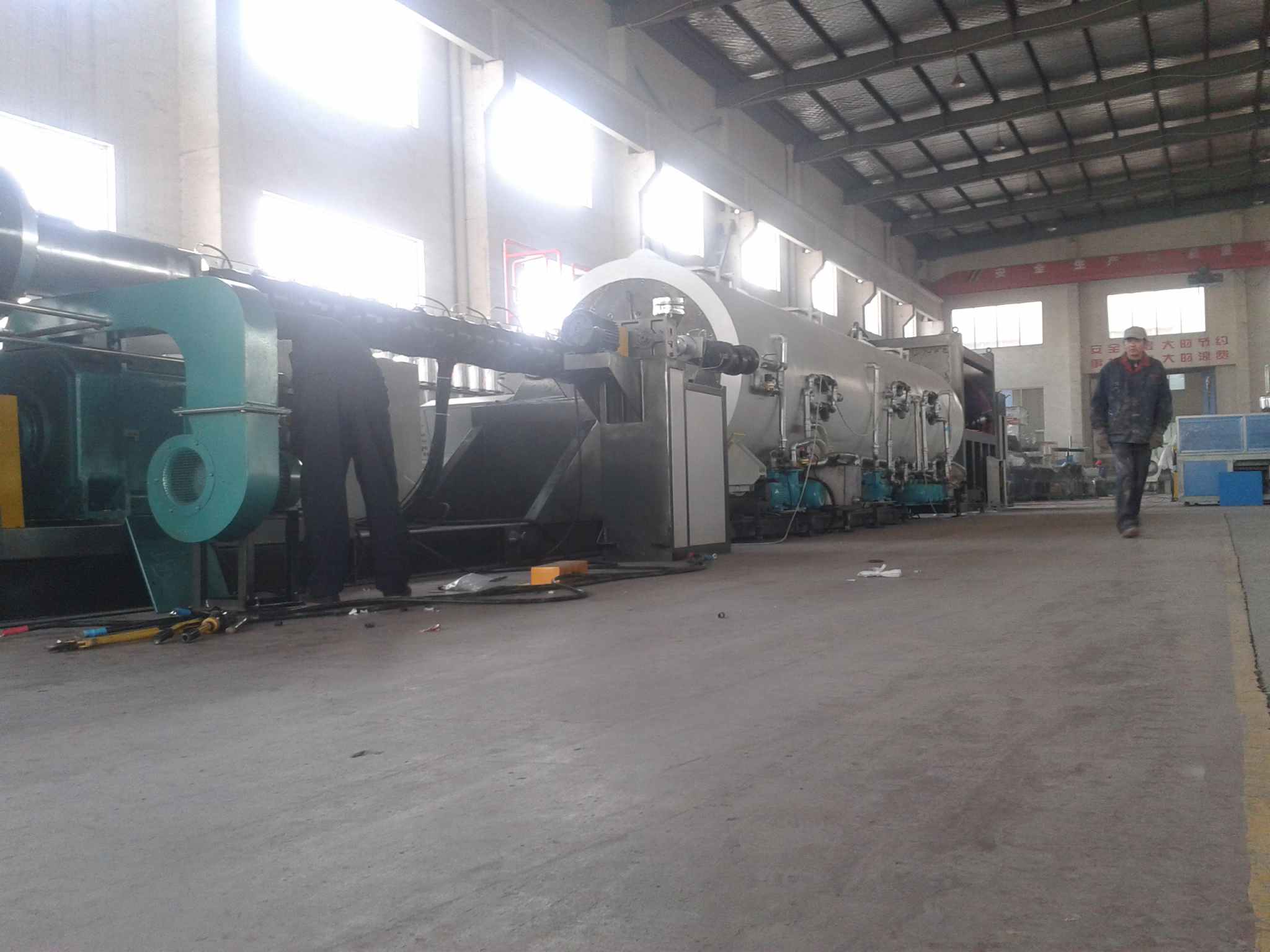

drying feeding--main extruder andmark color extruder---head mould---vacuum molding---thickness finder(can be choosen by self)----vacuum calibration tank---spray cooling tank---printer--haul-offs---cutter---stacker
HGF1200MM HDPE-LDPE PIPE EXTRUSION LINE MAIN TECHNICAL PARAMETERS:
EXTRUDER | SJ150/36 SINGLE SCREW EXTRUDER |

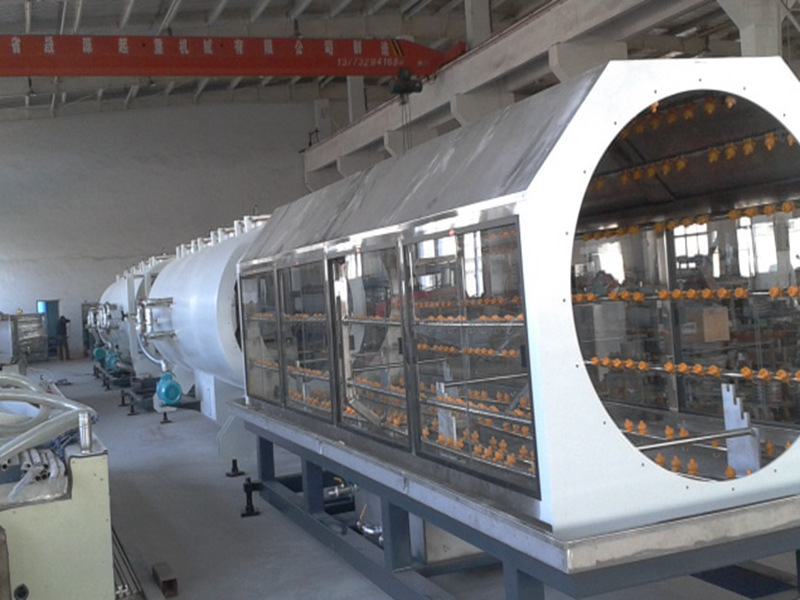

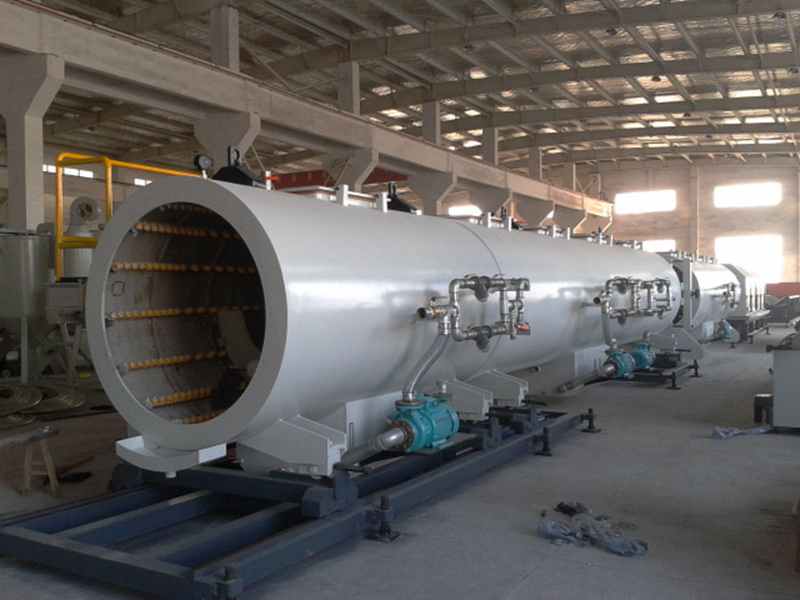

VACUUM FORMING TANK | 8+6M, DOUBLE ROOM+SINGLE ROON |

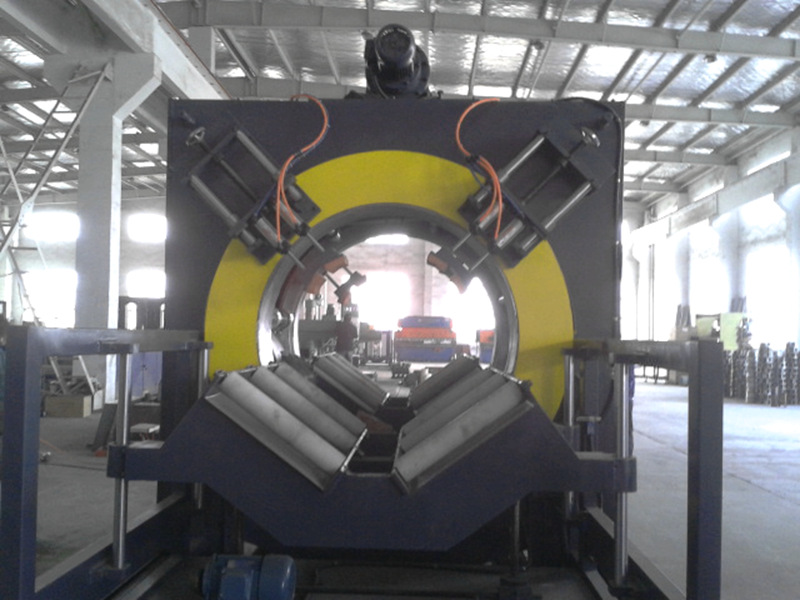

HAUL-OFF | 12CLAWS |
CUTTER | PLANETARY CUTTER |
ELECTRICAL PARTS | SIEMENS MOTOR, ABB INVERTER |
Main technical parameters:
model | SJGF63 | SJGF125 | SGJF250 | SJGF630 |
MAX pipe diameter | 63mm | 125mm | 250mm | 630mm |
main frame | SJ65/30 | Sj75/30 | SJ90/30 | SJ120/33 |
total power | 60kw | 75kw | 160kw | 260kw |
motor type | DC | DC | DC | DC |
MAX output | 90kg/h | 160kg/h | 300kg/h | 600kg/h |
hauling speed | 0.5-8m/min | 0.3-4m/min | 0.2-2m/min | 0.1-1m/min |
MAX traction | 10000N | 15000N | 30000N | 50000N |
cutting type | disc type cutter | disc type cutter | disc type cutter | disc type cutter |
dimesion | 22000X2000 X2000mm | 24000X2100 X2100mm | 30000X2300 X2300 mm | 38000X2500 X2300mm |
