full automatic 5 gallon PC bottle extrusion molding machine 1777 Favorites

Product Categories: Extrusion Blow Molding
Packaging Details:	Trademark:
Certification:
Payment Terms：
FOB:	HS Code:
Loading Port：

Huangyan Yuexiang Machinery Co., Ltd.
Company type： Manufacturer	Credit：
Main products：Blow molding machine 、Bottle Cap Mould 、Injection Mould

Get Quotation

Model	QJ-5GPC
Suitable Materials	PC,PP,PE,PVC,PS,ABS,EVA,PETG,AS…

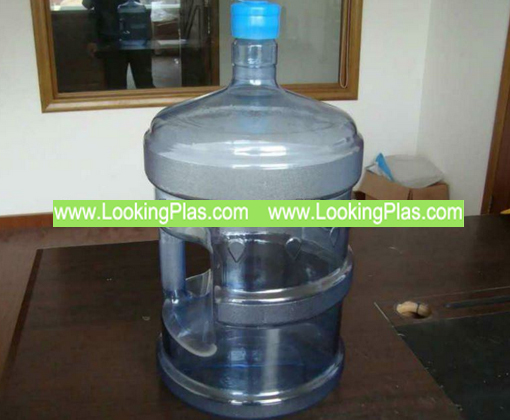

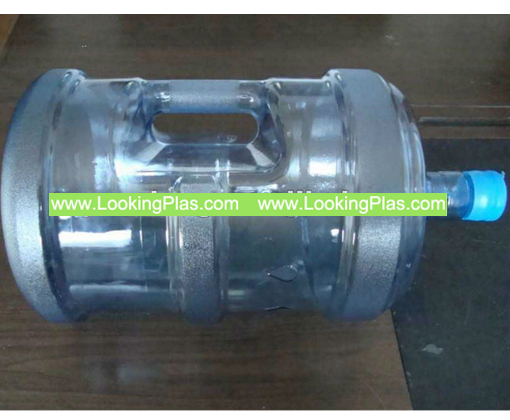

Real Output	When PC 5gallon water barrel 720g	60-80pcs/hour
PC 5 gallon barrel weight	Suitable use as standard	600-850g(adjusted by controller)
Product Volume	1cavity	10L~50L
Extrusion Unit	Screw Diameter	80mm
Screw L/D Ratio	22:1 L/D
Screw Speed	40 r/min
Plasticizing Capacity	90kg/h
Number of Heating Zone on Screw	4
Die Head Unit	Amount of die head	1
Volume of Storage Jar	4 L
PC storage capacity	2Kg
Die-pin Diameter	80mm
Number of Heating Zone	4
Clamping Unit	Work Station Amount	1
Mold Board Amount	4
Mold Board Size	70070066mm(LWT)
Clamping Force	180KN
Mould Unit	Cavity amount	1 cavity
Max Mold Size	750500500mm(LWT)
Lifter Unit	Turbine reducer lifter	4 pieces
Power Unit	Electrical Source	220/380V,3phase 50/60Hz
Screw Motor Power	30kw
Clamping hydraulic motor	7.5kw
Servo hydraulic motor	4kw
Screw heating power	10kw
Die head heating power	5kw
Hopper dryer power	4.5kw
Fan power(4pcs)	0.12x4=0.48kw
Total Power	58kw
Fact consumption power	20kw/h(tested)
Waterhead	Water pool
Air Supplier Pressure	0.8 Mpa
Air consumption	0.5 m3 /min
Size of main machine	3910X2060X3190mm
Weight of main machine	9000kg
Auxiliary Equipments	Low Pressure Air Compressor 1 Set	0.8m3 /min;1.25MPa;7.5KW;0.32 m3
Air Tank 1 Set	0.42 m3 /0.8 Mpa
Oil/water automatic mold temperature controller 1 Set	Heating power 4.5kw;motor power 0.5kw
These 3 auxiliary equipments is enough, no need other equipments.
