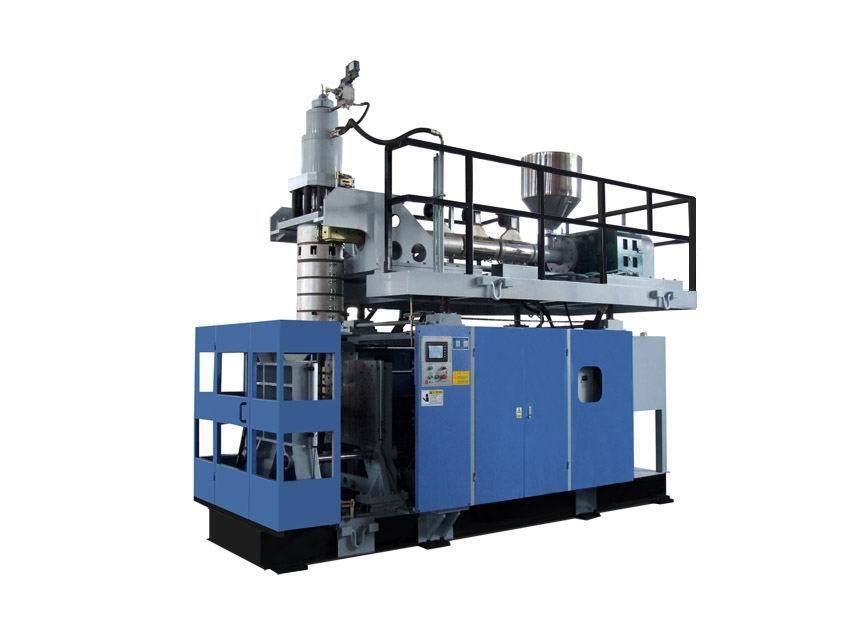

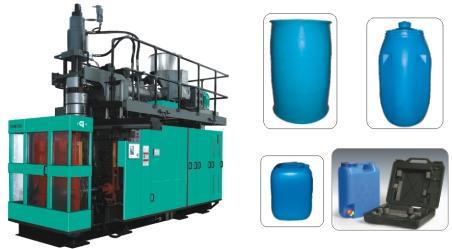

QJ80B-120B Series extrusion blow molding machine is applied to blow hollow containers of various shapes and lengths including chemical barrels, toolbox, packaging, office equipment, automobile ventilating pipe etc. The machine can move upwards and downwards with the die storing up to 3kg-5kg raw materials. Equipped with a hydraulic die capable of adjust the thickness vertically and a semi-automatic light-control clamping unit. It is suitable for many materials, including PP PE etc. And our company can offer the relevant mould for your every need.
Specification:
Parameter | Unit | QJ80B | QJ90B | QJ100B | QJ120B |
Material | / | PP,PE etc | PP,PE etc | PP,PE etc | PP,PE etc |
Max. Product Volume | L | 30 | 60 | 120 | 160 |
Productive Capacity | pcs/hr | 120-200 | 150-200 | 200-280 | 200-360 |
Die Number | set | 1 | 1 | 1 | 1 |
Clamping force | KN | 210 | 360 | 500 | 760 |
platen opening stroke | mm | 250-700 | 400-1000 | 500-1400 | 700-1800 |
platen size | mm | 750*600 | 880*780 | 1020*1060 | 1300*1620 |
Max mould size | mm | 560*630 | 700*960 | 800*1260 | 1200*1700 |
Mould thickness | mm | 250-350 | 450-500 | 350-700 | 250-350 |
Accumulator capacity | L | 4.5 | 6.6 | 12 | 18 |
Heating Zone Number | Part | 7 | 7 | 7 | 7 |
Die diameter | mm | 300 | 350 | 450 | 600 |
Injection pressure | Mpa | 8 | 8 | 8 | 8 |
Screw diameter | mm | 80 | 90 | 100 | 120 |
Screw L/D ratio | L/D | 20:1 | 20:1 | 20:1 | 20:1 |
Plasticising Capacity | Kg/hr | 90 | 110 | 130 | 240 |
Screw rotation rate | r/min | 10-86 | 10-86 | 10-86 | 10-86 |
Voltage/ Frequency | V/ HZ | 220-380/50-60 | 220-380/50-60 | 220-380/50-60 | 220-380/50-60 |
Driving Power | KW | 50 | 75 | 90 | 130 |
Heating Power | KW | 35 | 45 | 60 | 80 |
Average Power | KW | 32 | 38 | 50 | 95 |
Compressed Air Required | Mpa | 0.7 | 0.7 | 0.7 | 0.7 |
Dimension | m | 3.82*1.4*2.6 | 4.4*1.8*2.7 | 5.4*2.5*3.8 | 7.0*3.5*4.8 |
Weight | Ton | 11.5 | 12.5 | 17 | 19 |
Note: Due to continual improvement, specifications are subject to change without notification. Please refer to the latest actual machine.
We will even send an engineer to your country to help set up the machine.
