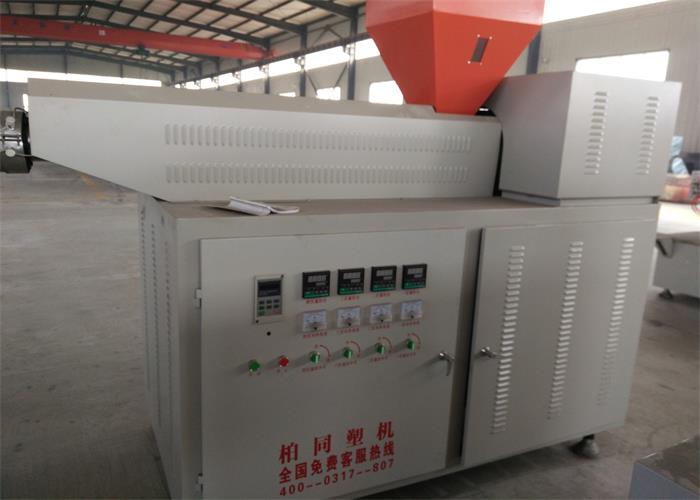

BT Automatic constant temperature high hinder extruing machine used three screw tubes extrude the same or the different material of plastic raw materials: PP, PE. This machine used frequency control, can adjust the layer thickness of the bottle. Operation with bottle blowing machine, making the plastic product.
BT Automatic constant temperature high hinder extruing machine is adopted the frequency adjust, intelligent temperature-control, Contacteur statique, the machine quality is reliable, steady performance, and this unit can add automatic screen changer. Is suited for product pesticide bottles etc hollowed plastic product with requirement for corrosion.
No. | Item | Data | Notes |
1 | Main screw diameter | Ø55/65/80 | 38CrMoALA |
2 | Screw L/D ratio | 25/1 |
|
3 | Max. Plasticizing capacity | 20-90kg |
|
4 | Main motor power | 7.5/11/15kw |
|
5 | Heating power | 15kw |
|
6 | Total wight | 1800kg |
|
7 | Dimension | 2100*1400*1200mm |
|
8 | Speed adjusting type | Frequency adjust |
|
9 | Power supply | 380v |
|
