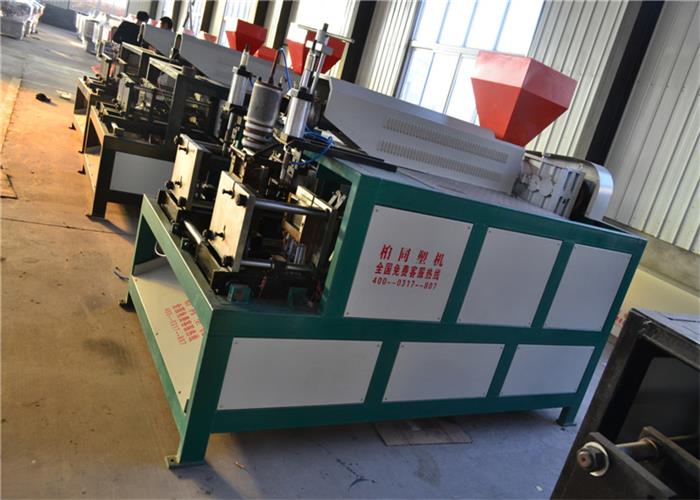

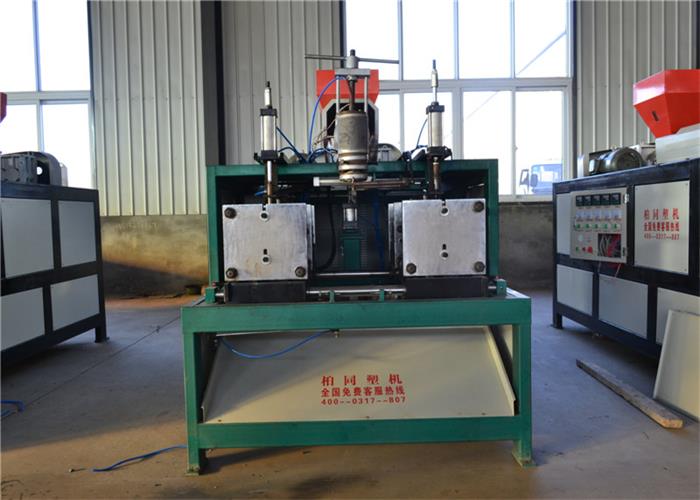

BT200Type plastic bottle blowing machine (single head/double head 0.5-5L)


This model is applied to PP, PE raw material plastic products.mainly used for fruit bottles、pesticide bottle、drug bottles、cosmetics bottle、oil bottle etc hollow plastic bottles. The bottle size range:50-6000ml.
This machine adopted famous reducer and variable frequency, Japan Omron proximity switch.
The main technical parameters
Model | BT 200 | Maximum capacity | 2.5L |
Screw diameter | 55mm (38CrMoAla) | Screw hotting power | 11kw |
Oil hydraulic pump power | 7.5kw | Main motor power | 11kw |
Length to diameter ration(L/D) | 25:1 | Max. production diameter | 160*150 |
Economic speed | 260pcs/h | platen max. open width | 320mm |
Mold open width | 150-240 | platen open range | 170-320mm |
Mold size | 220*300≥75 | Platen side | 350*300*40 |
Thickness of mold | 160-280 | Air blowing way | Blowing up on bottle |
Air consumption | 0.4-0.5m3min | Raw material | PE/PP |
Cropping type | Hot cutting | Clamping force | 50KN |
Speed adjust type | Frequency control | Operating system | PLC |
Machine dimensions | 2600*1400*1860 |
|
|
