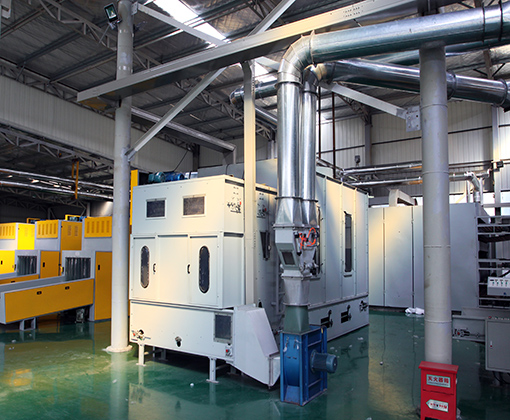

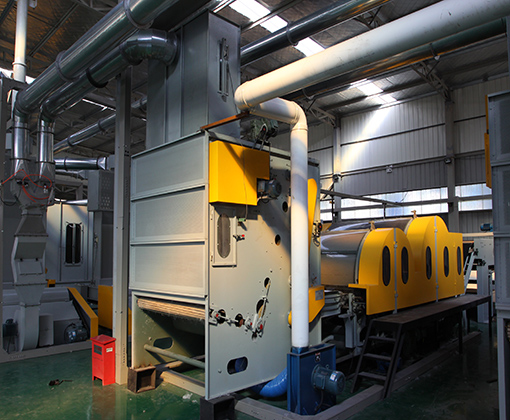

Chemical-bonded waddings production line is specailly used to make the waddings of garments and beddings etc.

Features:

Chemical-bonded waddings production line is specailly used to make the waddings of garments and beddings etc.

1) As the biggest nonwoven machinery supplier in China,we can supply the high advanced technology spray-bonded waddings plant which can produce high elastic spray-bonded wadding and glue-free wadding which are widely used for garment, bedding and furniture

2) Adopts front and back spraying system

3) Top-blowing type blower and bottom-suction with 6-layer air duct; hot air penetration and convection with high heat efficiency

4) Made up of opening machine, collector cabinet, feeding machine, carding machine, cross lapper, dryer, ironing machine, coiling and edge-cutting machine and so on

5) Heating methods: vapor, heat conducting oil, direct ignition

6) Product net width (normal): 2,500mm; 3,200mm or according to customers' requirements
7) Chamber length (normal): 8,000mm; 10,000mm; 12,000mm
8) Product specification: 40 - 500gsm
9) Production capacity: 100 - 600kg/h
