Technology data:

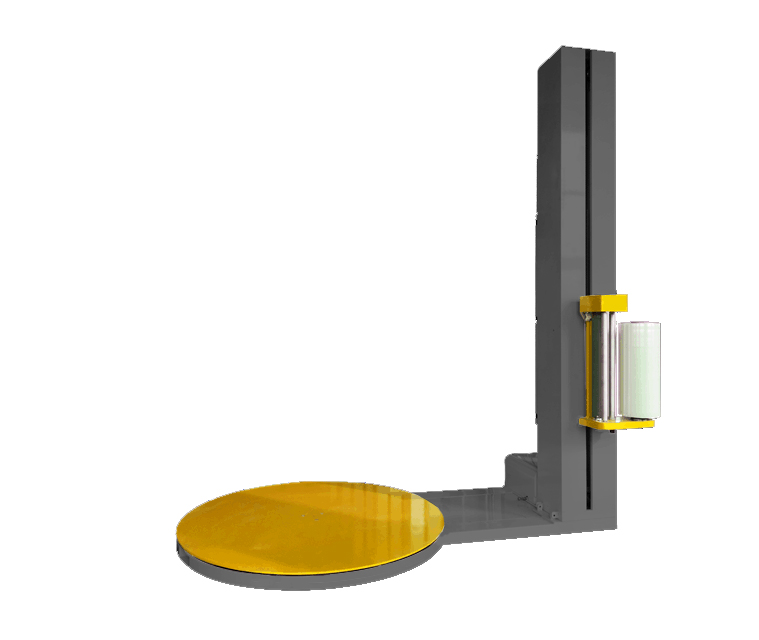

Model K1100
Wrap size (L X W) (500-1200)mm X (500-1100)mm
Wrap height (max) 2400mm
Turntable diameter 1650mm
Turntable rotary speed 0-12rpm adjustable by inverter
Turntable height 78mm
Turntable weight capacity (max) 2000Kg
Film carriage Power pre-stretch system up to 300% with adjustable speed
Wrap efficiency 20-40 Pallets/Hour
Mast(lift system) Film carriage lift speed adjustable by inverter
Control system PLC control
Total weight(max) 450kg
Power/voltage Turntable:0.75kw Film carriage:0.37kw Mast: 0.37kw/ AC220V 50HZ
Machine size 2460mm X 1650mm X 2700mm
Ramp Optional
Top plate Optional
