Plastic machine screw cylinder.
We have the suitable steel ,heat treatment and special designing for the screw and barrel to use general purpose and engineer purpose, no matter with glass fiber additive or flame retardant additive.

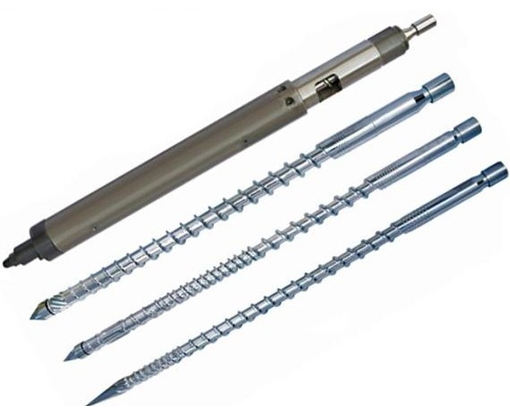

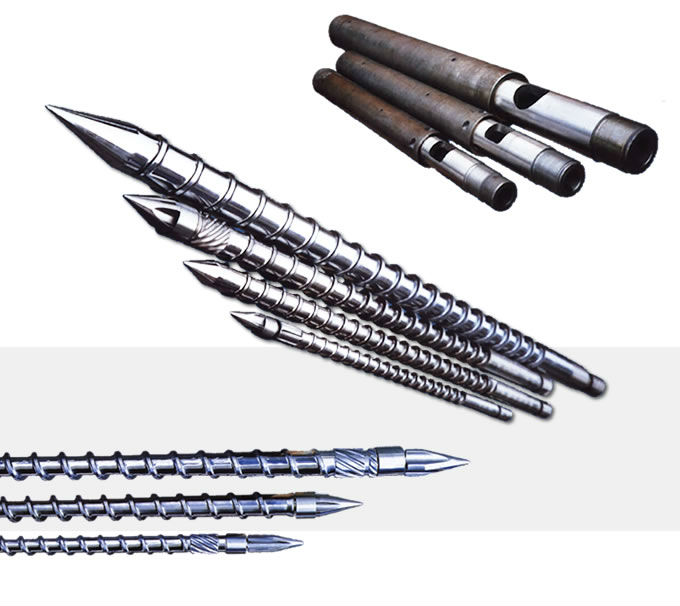

Screws and Barrels for injection machinery
we can make screw and barrel for Haitian,Chende,Chenxiong machines and other machine screw by your drawing.
Injection molding machine screw,barrel,screw cylinder for injection molding machine.material: 1.
(38CrMoAlA 38XMIOA 6470E 905M39 SACM645 40CAD6.12 41CrAlMo07)
2. (Cr12MoV X12M D2 BD2 SKD11 Z200C12 X165CrMoV46)
3.(4Cr5MoSiV1 H13 SKD61)
4. 42CrMo AISI 4140 SCM440 42CrMo4
Mould Clamping Force: 100KN-35000KN,
Shot Weight: 30-30000g
Diameter of Screw: Ø20mm-Ø220mm
Injection molding machine Screw can be assembled with any suitable heads for different kinds of resin and different kinds of purpose.
Barrel can be assembled with different nozzles.
The compression ratio of the screw can be designed according to different products and mixtures and pupose.
