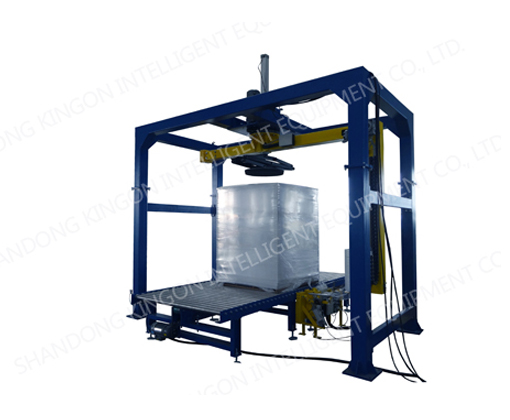

Rotary arm wrapping machine 1030 Favorites

Product Categories: Wrap Packing Machine
Packaging Details:	Trademark:
Certification:
Payment Terms：
FOB:	HS Code:
Loading Port：

SHANDONG KINGON INTELLIGENT EQUIPMENT CO.,LTD
Company type： Manufacturer	Credit：
Main products：Pallet wrapping machines, starpping machines

Get Quotation

Contact Supplier

To：	sophia
Subject：
Message：	You can also enter 300 characters

Message has been sent successfully.

Post Buying Request

*Subject:
*Matching Rules:	Categories Keywords
*Inquiry Type:
*Keywords:	+ max five keywords
	Added:
	Note:you can add at least one keywod and most five keywords
*Categories:	Add Delete
*Detailed Description:
	Note: Please write your requirement in detail
Attachments：	+ Note: Attachments will help you get accurate solutions Note: Attachments can help you get accurate solution from suppliers
Max quotations want to receive：
	I agree to share my business card with quoted suppliers

Submit Inquiry

No matched supplier

Public souring

Your inquiry has been submitted successfully but 0 supplier matched at present, you will get quotations from Public Sourcing.

Close

Your inquiry has submited successfully and suppliers have been matched by LookingPlas,You will get the quotations as soon as possible.

Close

You had already registered,no need join again.

Registered successfully.

Sorry only Buyer can register the activities.

Model		DR1800FZ
Wrap size (L X W)		(500-1300)mm X (500-1200)mm
Wrap height (max)		1800mm or customized
Rotary speed	Standard	0-15rpm adjustable >30 Pallets/Hour
	High speed	0-25rpm adjustable >45 Pallets/Hour
	Super speed	0-35rpm adjustable >60 Pallets/Hour
Film carriage		Pre-stretch / customized stretch ratio: 200%-400%
Cut & clamp unit		Pneumatic Control; Automatic clamp,cut and wipe/weld
Pneumatic system		0.6-0.8Mpa 250NL/min
Lift system		Lift speed adjustable
Control system		PLC control
Safety guard		Optional
Machine size (LXWXH)		4000mmX 2000mm X 4300mm(without conveyor)
Power/voltage		Rotary arm:1.1kw Film carriage:0.37kw Lift system: 0.37kw AC380V 50HZ 3P
Conveyor(Optional)		Customized
