Introduction:

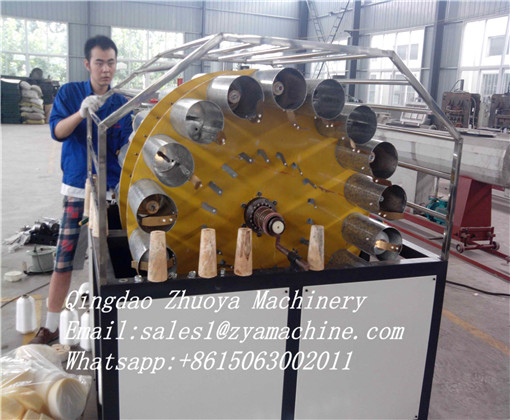

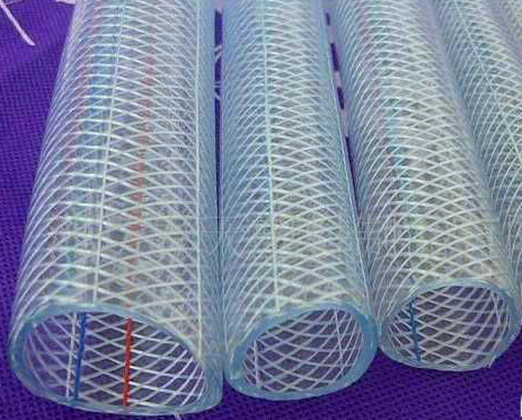

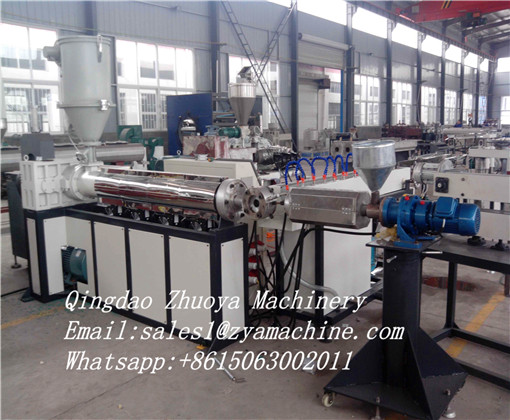

The line is suitable for the production of PVC fiber reinforced pipe.This kinds of pipe is made of three layers structure. The inner and the outer layers will be made of PVC plastics and the middle layer is made of terylene fiber reinforced net. The pipe is suitable for the conveying of corrosive gas or liquid. It can be widely used in the fields of machinery, coal mine, oil, chemical plant, agricultural irrigation, building, solar water heater, coal gas pot, etc.
Questions:mail sales1@zyamachine.com
Technical Specifications
Model | ZYF-45 | ZYF-65 | ZYFC-45 |
Extruder | Φ45/25 | Φ65/25 | Φ45/25×2,Φ30/25 |
Rang of Pipe Dia. | mm | 8-25 | 8-38 | 8-25 |
Output | kg/h | 35-65 | 35-80 | 30-50 |
Installed Capacity (Approx) | KW | 39.3 | 66.3 | 28 |
Average Power Consumption | KW | 27.5 | 39.78 | 21 |
