Features:

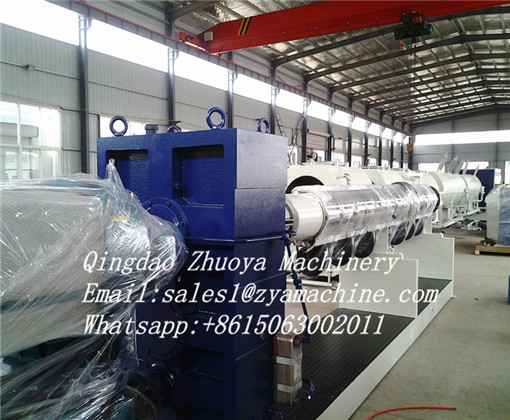

It adopts the PE efficient screw, notched barrel and forced cooling mandrel. The conveying capacity is improved greatly to ensure efficient extruding. It is equipped with a vertical reducer with high torque and is driven by DC motor.
The basket co-die is suitable for polyolefin’s not only ensuring high speed stable extrusion and realizing the smallest stress brought by low melt temperature and highest pipe quality.

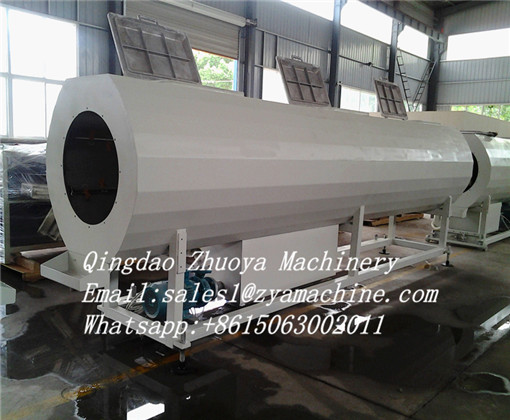

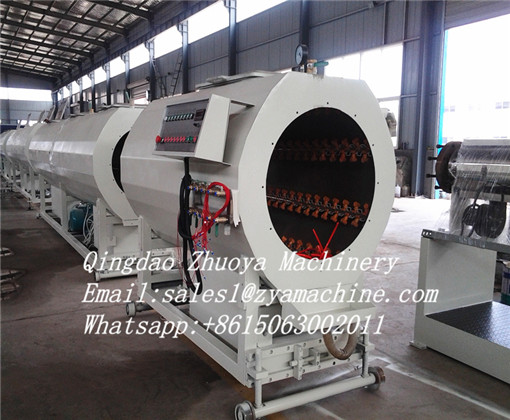

It adopts efficient vacuum calibrating technology with two cavities, and spray cooling flume in order to increase the finished product rate and meet requirements of production for high speed.
It adopts a cutting machine with the high speed and precision design. Its cutting section is flat and smooth. A strong dust collecting device is provided for minimum maintenance.
Long-distance communicative function can realize Tele-diagnosis and maintenance.
Questions:mail sales1@zyamachine.com
Technical parameters:
Model | Diameter(mm) | Max Output(KG/H) | Max Production Speed(M/Min) | INSTALLED POWER(KVA) |
ZY-63 | 16-63 | 160 | 15 | 90 |
ZY-160 | 50-160 | 350 | 8 | 170 |
ZY-250 | 75-250 | 420 | 8 | 220 |
ZY-450 | 110-450 | 750 | 4 | 350 |
ZY-800 | 315-800 | 1000 | 1 | 500 |
ZY-1200 | 630-1200 | 1200 | 0.5 | 590 |
