PC Plate Application:
Construction of sunroof in buildings, halls , shopping center, stadium, public places of entertainment and public facility.
Garden, the recreation place, decoration and the corridor pavilion; Internal and external ornaments in the commercial building, curtain wall of the modern urban building; transparent container of aviation, the windscreen before the motorcycle, the plane, the train, the steamer, the submarine, army and police’s shield, the telephone booth, advertising signpost, the advertisement of the lamp houses, the expressway and overhead way of the city partition protective screen.
Main Technical Specification:
Extruder Specification | 120,45 | 100,45 |
Products Width | 2100mm | 1300mm |
Products Thickness | 4-40mm | 4-40mm |
Main Motor Power | 185KW/22KW | 132KW/22KW |
Capacity(Max) | 450kg/h | 300kg/h |
Note: The specifications are subject to change without prior notice.

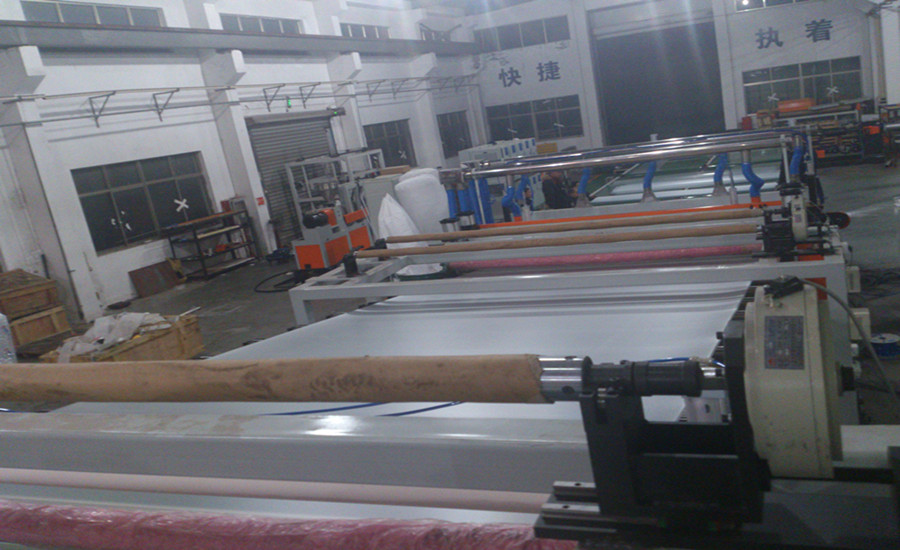

Production Line Introduce:
China GWELL Machinery Co., Ltd. is a master PC plate production line. Company engaged in years of PC plate design, production, research and development, the production line from the material, extruders, molds, stereotypes, traction and cutting and other key parts all designed and manufactured by the company mastered the production of a full range of turnkey engineering skills , the production of PC plate production lines have obvious advantages:
1.Extruder: The specially designed screw (Golden Conch brand), advanced temperature control system to ensure stable performance plasticizing and extruding efficiency, highlighting the advantages of the company is the high-energy efficiency, the same output, motor power reduction 20%.
2. T-die: quality alloy die lip and an adjustable choke blocks provide uniform pressure.
3. Vacuum shaping table: display convection system of staggered, to ensure highly accurate shape and cooling. Special cooling design type, the maximum speed can reach 8M / min.
