Features
1. The machine is with new platform design for the die head, which separates the lifting platform from head-rising platform, not only making the lifting and rising of the die head more stable, but also making the die head more easy to move forwards and backwards.
2. The main body is equipped with accumulator to avoid the explosive fissile convergence line that caused by parision combined in the material-storage-on-top accumulator;
3. Equipped with the double pump, proportion flow valve, the power consumption can be reduced effectively;
4. This 25L blow moulding machine has automatic lubrication system and robot hand, down widen device, down blow pin, mould stretch, double clamping also;
5. It could be optional configured with tele-maintenance system；
6. The screw diameter is 85mm；
7. Applicable materials: PP, PVC, PE, PC, PS; the max blow volume: 25L;

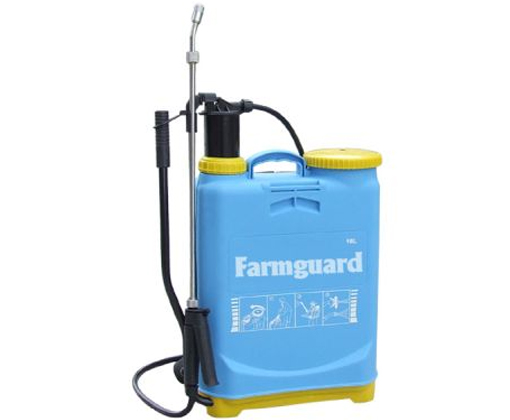

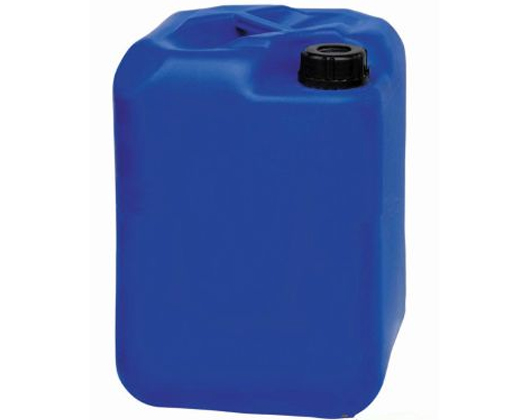

8. Our machine can be used in making of auto parts, chemical barrels, pesticide sprayer and so on.
| 85Y1x1.25D for 25L Engineering Part | Example | bottle 15L, 1100g |
| One station, one cavity blow moulder up to 25L | Output | 45/hr, 1100 /day, 0.38million/year |
Technical Data
General Features of 25L Blow Moulding Machine
| Carriage horizontal shuttle stroke | mm | / |
| Dry cycle | sec | 3" |
| Clamp force | kN | 400 |
| Pressure of Hydraulic System | Mpa | 14 |
| Pressure of Pneumatic System | Mpa | 0.6-0.8 |
| Pressure of Cooling System | Mpa | 0.2-0.3 |
| Air consumption (estimated) | M3 / hr | 5 |
| Minimum pressure for cooling water to machine | Mpa | 0.2 |
| Power of pump motor for hydraulic movements | kW | 15 |
| Power of servo pump motor(if needed) | kW | (5.5) |
| power of Die head heating | kW | 16 |
| Power of knife | kW | / |
| Total power installed (estimated, maximum) | kW | 83.5 |
2. Extruders
| Screw diameter | mm | 85 |
| Extruder rotating speed | / | 20~66 |
| Power of electric motor | kW | 30 |
| Power of barrel heating | kW | 15 |
| Max throughput = PE | kg/h | 130 |
3. Mould Dimensions
| Maximum Width | A | mm | 700 |  |
| Maximum Length | B | mm | 500 |
| Minimum Depth | C | mm | 250 |
| Clamp Open Max. Daylight | D | mm | 900 |
| Open Stroke | E | mm | 400 |
| Max Weight of Mould |
| kg | 500 |
4. Production Possibilities
| Cavities |
| 1 |
| Max center distance | mm | / |
| Max container width | mm | 680 |
| Max container height | mm | 350 |
| Max container depth | mm | 340 |
| Container capacity (estimated) | lt | 25 |
5. Machine Dimensions
| Maximum width | mm | 1800 |
| Maximum length | mm | 3400 |
| Maximum height | mm | 3000 |
| Total weight | kg | 6000 |
