Xinda integrate developed technology to produce clear bottle flakes suitable for the chemical fiber industry. In order to make our equipment meet worldwide demand, we develop a modularized design system for the recycling line including such functions as bottle pre-washing, contamination removal, label scraping, sorting, crushing, washing and rinsing, gravity separation and drying and packaging. Every line we provide will be on a turn-key basis. And we will buy back the bottle flakes from our PET washing line customers.
The Washing Part of the Whole Line
NO.ITEMPOWER(KW)SCREW
1SCREW CONVEYOR3Φ400*4500
2STEAM CHURN BOILER7.5Φ2000*2200
3STEAM CHURN BOILER7.5Φ2000*2200
4DISCHARGER4Φ400*4500
5DISCHARGER4Φ400*4500
6FRICTIONAL SEPARATOR7.5Φ500*4000
7SINK AND FLOAT TANK4*2=8Φ400*5000
8SINK AND FLOAT TANK4*2=8Φ400*5000
9SPIN DRYER7.5Φ600*1400
10ELECTRIC PANEL PIANO SIZE
OTHER EQUIPMENT
Bale opener
4 motors 12kw, 2500mm*2000mm*1500mm
Bottle conveyor
motor: 1.5kw, Length: 6000mm
Label peeler
Power: 30kw, 4538*2000*2954
Bottle sorting conveyor
Motor: 1.5kw, Length: 800mm
Crusher/shredder
800kg/hour
Hot air dryer
Power: 7.5kw Hopper: Φ1200*1500
washing line 1 label peeler
WASHING LINE LABEL PEELER

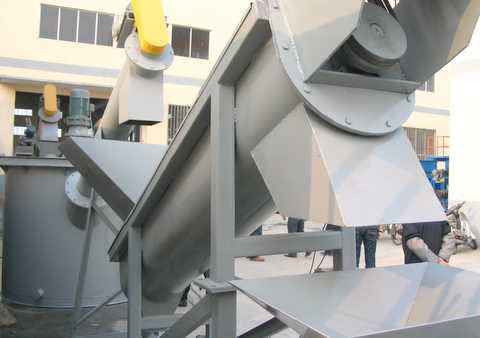

conveyor crusher
BOTTLE CONVEYOR CRUSHERS

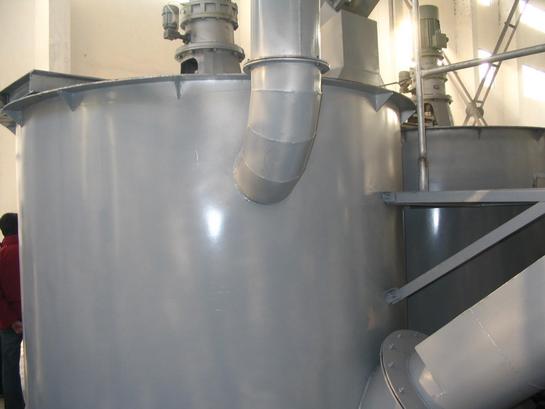

steam churner friction
STEAM CHURNER FRICTION DISCHARGER

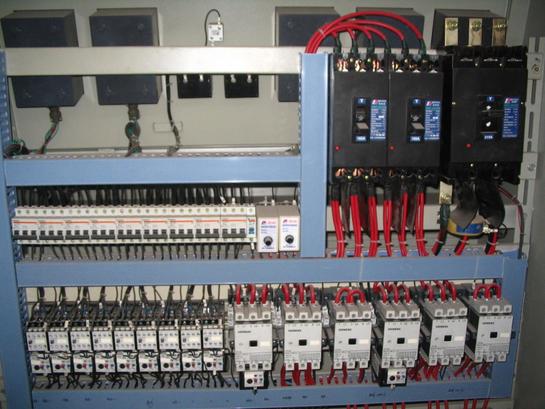

sink-float tank electricity
SINK-FLOAT TANK SIEMENS ELECTRICITY
Our fiber plant and masterbatch plant consume 100 tons of PET materials per day. The flakes made by this washing line can totally satisfy the quality need in the fiber industry.
SEE MORE PP/PE WASHING LINE EQUIPMENT
