Attachment Of VFS5000YA5 Packaging Machine Unit Including:
1.VFS5000A Box Type auto packaging machine one set.

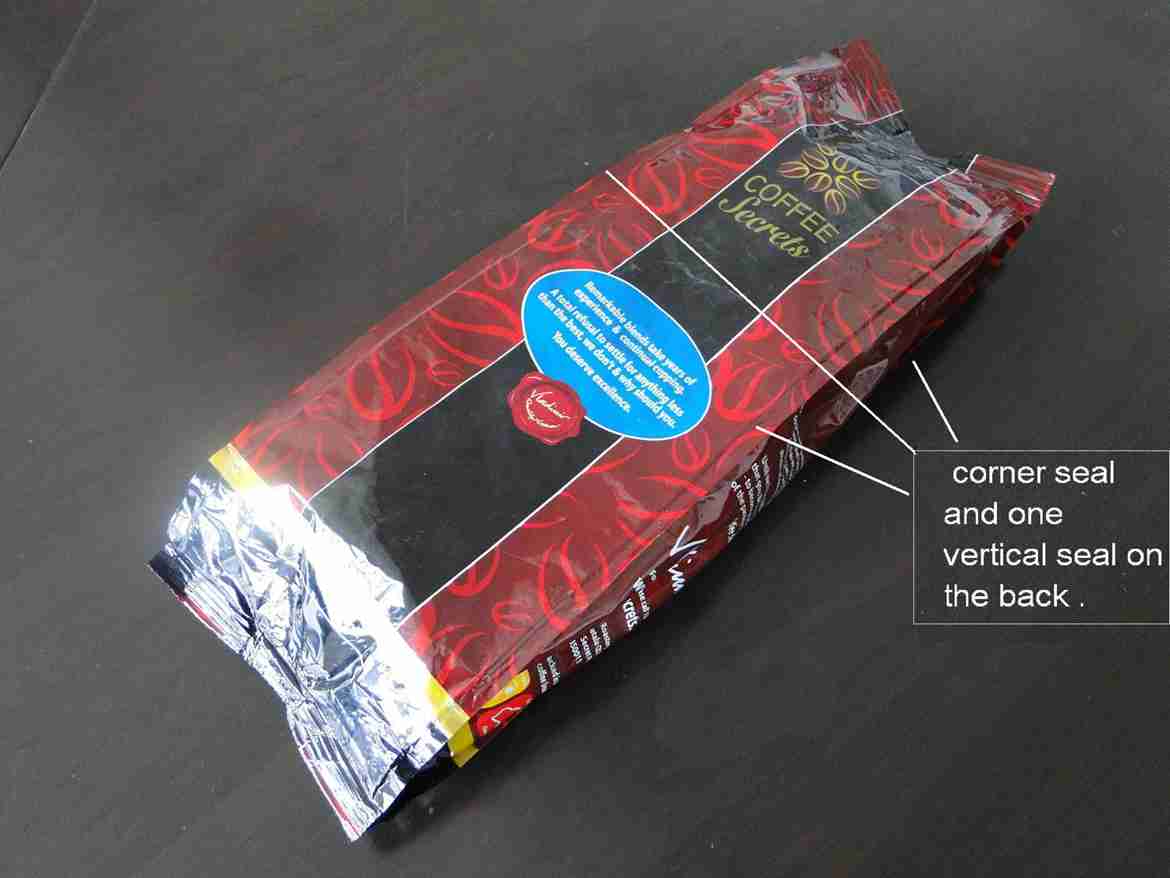

This machine equips with bag forming, making (gusset bag, included 4 side seal edges), auto filling, cutting, sealing (top & bottom), code printing, Vacuum bell mechanism and with Nitrogen flushing mechanism (for bottle) etc.
2.CJSL2000 Auger Filler one set.
This machine equips Sanyo Servo Motor, level switch and mixture motor automatic filling, controlled by packaging machine. Made by Stainless Steel.
3.Production take-off conveyor belt one set. FREE. Made by Stainless Steel.
1.95m for the length.
Weighing Range | 50g-2KG |
Packaging Speed | 35bags/min- 45bags/min(according the packaging weight and the bag size ) |
Accuracy | 1g-3g |
Bag Size | Front width:45mm~190 mm |
Side Width | 45mm~90 mm |
Width Of Side Seal | 4mm~6mm |
Length | 100mm~380 mm (can be do second film pulling, you can adjust according to your requirement) |
Compressed Air Consumption | 0.6 MPa 350 L/min |
Electric Requirement | can add transform doing it according to your requirement
|
