Product Description

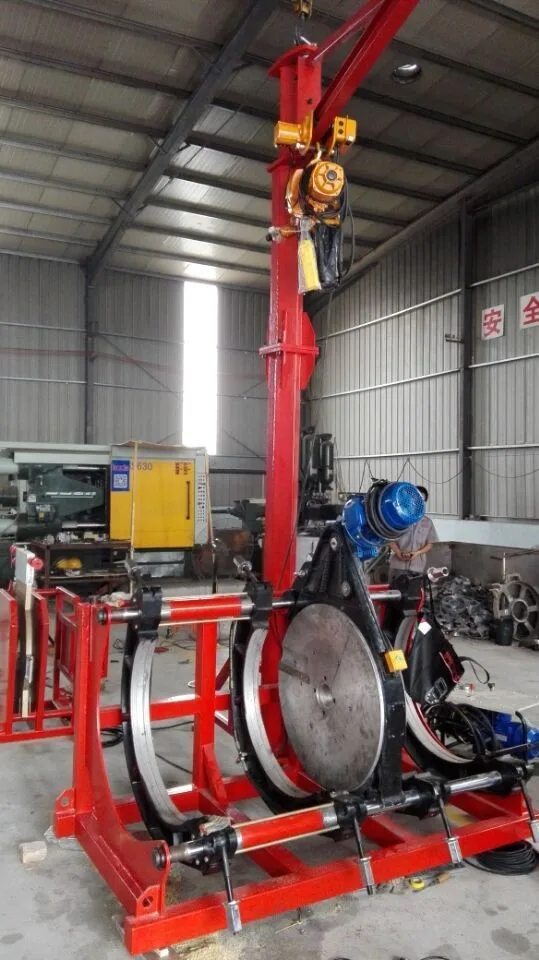

1200mm pe hdpe butt fusion welding machine---Application:
PE pipes welding machine;
HDPE pipes welding machine;
PP pipes welding machine;
PB pipes welding machine;
any other plastic pipes available for welding... ...
1200mm pe hdpe butt fusion welding machine---Further parameters:
Model | SHBD1000 | SHBD1200 | SHBD1600 |
Welding diameters (mm) | 710,800,900,1000 | 800,900,1000,1200 | 1200,1600 |
Heating plate temperature | 270°C | 270°C | 270°C |
Heating plate surface
temperature(170-250°C) | <±10°C | <±10°C | <±12°C |
Pressure adjustment range | 0-18MPa | 0-18MPa | 0-18MPa |
Cross-sectional area of the cylinder | 2512mm2 | 3297mm2 | 6870mm2 |
Working voltage | 380V,50Hz | 380V,50Hz | 380V,50Hz |
Heating plate power | 21.7KW | 30KW | 47KW |
Milling cutter power | 3KW | 3KW | 5.5KW |
Hydraulic station power | 3KW | 3KW | 9.7KW |
Lifting power | 1.1 KW | 1.5 KW | --- |
Total Power | 22.5KW | 37.5KW | 62.2KW |
1200mm pe hdpe butt fusion welding machine---Our advantages:
1. The raw material of the machine frame is aluminum ZL104, it is light but strong, is one of the best material for machine.
2. The main electrical apparatus elements are best of china, imported from abroads.
3. Removable PTFE coated heater with separate temperature control system,temperature can be controlled to a minimum range.
4. The electric facer adopts reversible double cutting edge blades, which can make the cutting effect more perfect.
Our machine will be spread a layer of oil, and then be wraped by plastic film, put into a wooden box at last. This type of packages is avoid getting rusty easily. 1200mm pe hdpe butt fusion welding machine.
Assistant tool:
Packaging & Shipping
Our machine will be spread a layer of oil, and then be wraped by plastic film, put into a wooden box at last. This type of packages is avoid getting rusty easily.
Our Services
1. One year warranty, life-long maintenance.
2. In warranty time, if nonartificial reason damaged can take old change new for free. Out of warranty time, we can offer maintenance service (charge for material cost).
3. Engineers available to service machinery overseas but all the costs to the buyer to pay.
Company Information
JINAN BADA PLASTIC PIPE WEDLING EQUIPMENT CO.,LTD is a leader manufacturer specialized in butt welding machine in china.
It has built up an excellent brand image and gotten above 80% domestic market and export to more than 40 countries since entered to China in 2009 .
We own a complete range of international standard butt fusion equipment including field welding machine, workshop fitting machine, pipe cutting saw, all the optional parts and tools required under the ISO9001 quality system as well as CE certification.
