Production line composition

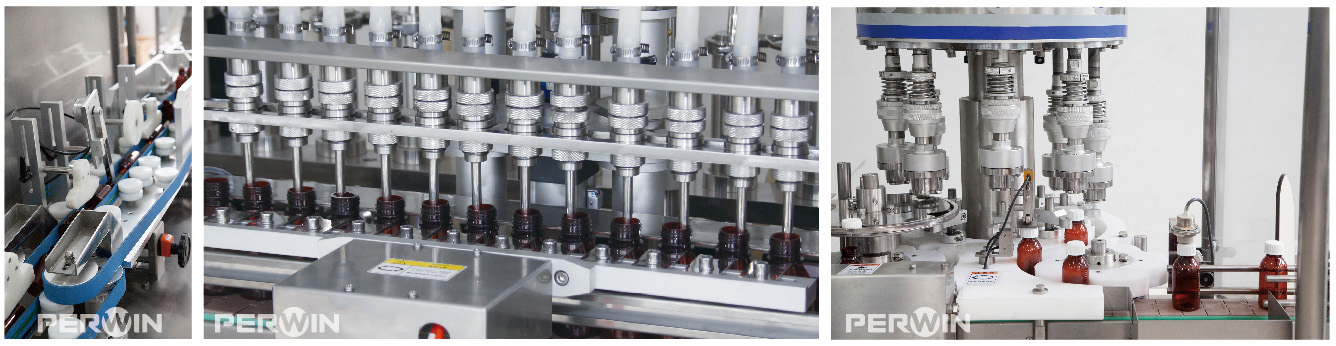

Automatic Unscrambler > Automatic Air Cleaning Machine > Automatic Liquid Filling Machine > Automatic Capping Machine > Automatic Labeling Machine

● Customized combination of production line according to user requirements.
● Providing the Cleaning in Place (CIP) and Sterilization in Place (SIP) technology and products for production line according to the user’s requirements.


Production capacity
70~100 bottles/Min 100~130 bottles/Min.

The Production Features
● According to user’s requirements and the bottle features, the bottle entering can adopt different scheme.
● Adopting 316L stainless steel piston cylinder for precision filling, the filling accuracy is ±0.5~1%.
● To avoid the disadvantages of negative pressure type filling principle inherent in filling error, large liquid loss, high cost of operation.
● The function of alarm and stop when filling needles deviate from bottle neck.
● The specially designed inlet and outlet check valve and the precision machining to ensure not dropping when filling.
● The specially designed lid putting and lid feeding matched automatic precisely up with capping, accurately complete each mechanical motion cycle, such as crabbing lid, capping, and others, the whole process in unison, stably and reliably, without dropping lid.
● The specially designed torque limiter, flexible connection pressure rotary buffer mechanism and individualized screw capping scheme to keep the capping torsion stable not to damage the lid and the Stability and reliability for the capping quality.
● Having the automatic on-line removing function, when no lid and deflection of lid. (Optional)
● The whole production line of intelligent control has the function of chain control for upstream and downstream working equipment.
● The surface of main parts of the whole production line is made of SUS 304 stainless steel, hardness of anodized aluminum alloy, non-toxic polymeric materials, etc. which comply with GMP rules.
