Production line composition
Automatic Unscrambler > Automatic Air Cleaning Machine > Automatic Liquid Filling Machine > Automatic Capping Machine > Automatic Labeling Machine
● Customized contents of production line according to user requirements.
● Providing the cleaning in Place (CIP) and sterilization in Place (SIP) technology and products for production line, according to the user’s requirements.
Production capacity
80~120 bottles/Min 120~160 bottles/Min.
The Production Features
● The bottle entering mode can be in different scheme based on the user’s requirement and bottle shape feature.

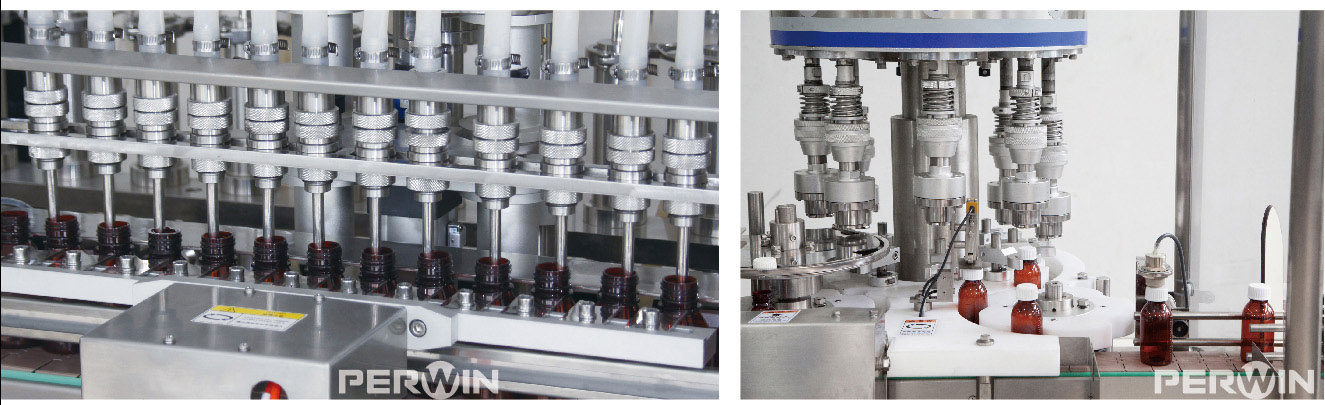

● Adopting 316L stainless steel piston cylinder or designated method by user for precision filling, the filling accuracy is ±0.5~1%
● The function of alarm and stop when filling needles deviate from bottle neck.
● The unique inlet and outlet check valve and the precision machining to ensure not dropping when filling. The filling needle will move up and down or submersible filling, to prevent liquid bubbling or splashing.
● The specially designed lid and lid feeding matched automatic precisely up with capping, accurately complete each mechanical motion cycle, such as crabbing lid, capping, and others, the whole process in unison, stably and reliably, without dropping lid.
● The specially designed torque limiter, flexible connection pressure rotary buffer mechanism and individualized screw capping scheme to keep the capping torsion stable not to damage the lid and the Stability and reliability for the capping quality.
● Have the function of online automatic removing when no lid. (Optional by customer)
● The whole production line of intelligent control has the function of chain control for upstream and downstream working equipment.
● The surface of main parts of the whole production line is made of SUS 304 stainless steel, hardness of anodized aluminum alloy, non-toxic polymeric materials, etc. which comply with GMP rules.
