● Customized combination of production line according to user requirements.
The above equipment is just for reference
The capacity of production line：40~120 bottles/min.
The Main Technical Features of Production Line：

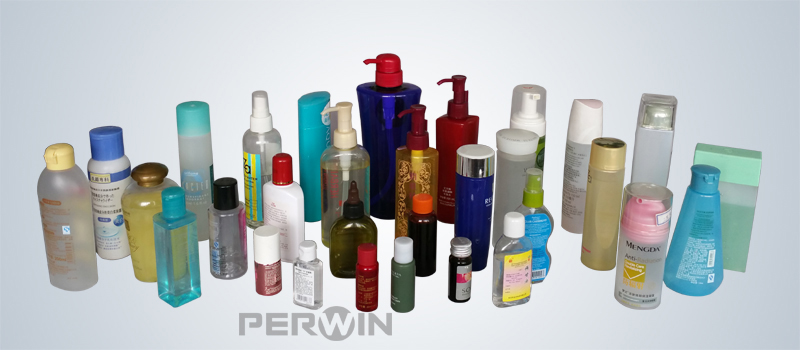

1. The bottle feeding scheme at the front end of the equipment will be designed according to the bottle shape, its material, and user’s requirements.
2. According to user’s requirement, the filling metrology can adopt ceramic plunger type cylinder, 316 L piston cylinder, peristaltic pump etc.
3. The filling needle will move up and down or submersible filling, to prevent liquid bubbling or splashing.
4. The unique inlet and outlet check valve and the precision machining to ensure not dropping when filling.
5. Suitable for multi-specification products filling job, adjusted quickly, easily cleared.
6. Individualized screw capping scheme to keep the capping torsion stable not to damage the cap and the stability and reliability for the capping quality.
7. Having equipment operation monitoring, there is a dynamic display for the operation status of key part of equipment on the display, so that the operator can view the running status very clearly, easy to operate and maintain.
The above picture is just for reference
8. In addition to sound and light alarm, the dynamic indication of alarm position and cause of the alarm shown on the HMI. The whole production line of intelligent control has the function of chain control for upstream and downstream working equipment.
9. The main parts of the whole production line is made of SUS 304 stainless steel, hardness of anodized aluminum alloy, non-toxic polymeric materials, etc. The designing of whole production line comply with the rules of GMP.
