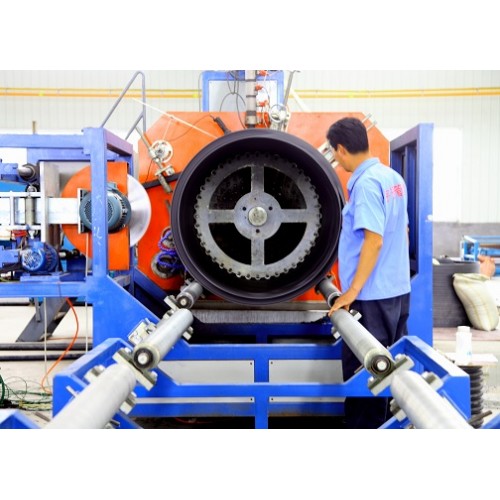

Performance and features of Large-caliber hollow-wall winding pipe production line:
Domestic and foreign companies absorb the latest technology research and development of large-diameter HDPE buried large-diameter pipe production line and FR-PP pipe production line which can produce diameter φ200-φ2000 high drains. The tubing is increasingly becoming the mainstream of urban drainage pipe products and will gradually replace the steel, cement pipes and other plastic pipe.
The production lines are shaped by tube extruder, welding extruder, winding forming machine, cutting machine, and related auxiliary equipment, having a production capacity, high production efficiency, stable operation, pipe ring stiffness, unit weight per meter is small, anti-creep excellent performance, easy connection and construction and economic advantages.
Adopting composite die, two extruders unite to provide material, helix turning forming, high efficiency compound technology ensure high product quality.
Unit Type | Produced pipe specification ∮mm | Extruder | The total installed capacity of the production lineKWLoad factor50% | YieldM/year | Unit Dimensions The total length of the production line L * W * HM |
model | Aspect ratio | Main motor powerKW | Heating powerKW |
fd600 | ∮200-∮600 | SJ90 | 30:1 | 75 | 43 | 230 | 75000 | 10*21*2.6 |
SJ65 | 30:1 | 45 | 25 |
fd1200 | ∮700-∮1200 | SJ120 | 30:1 | 140 | 60 | 400 | 14400 | 10*23*2.7 |
SJ90 | 30:1 | 75 | 43 |
fd2200 | ∮1300-∮2200 | SJ150 | 30:1 | 160 | 95 | 520 | 8000 | 10*25*2.8 |
SJ120 | 30:1 | 140 | 60 |
